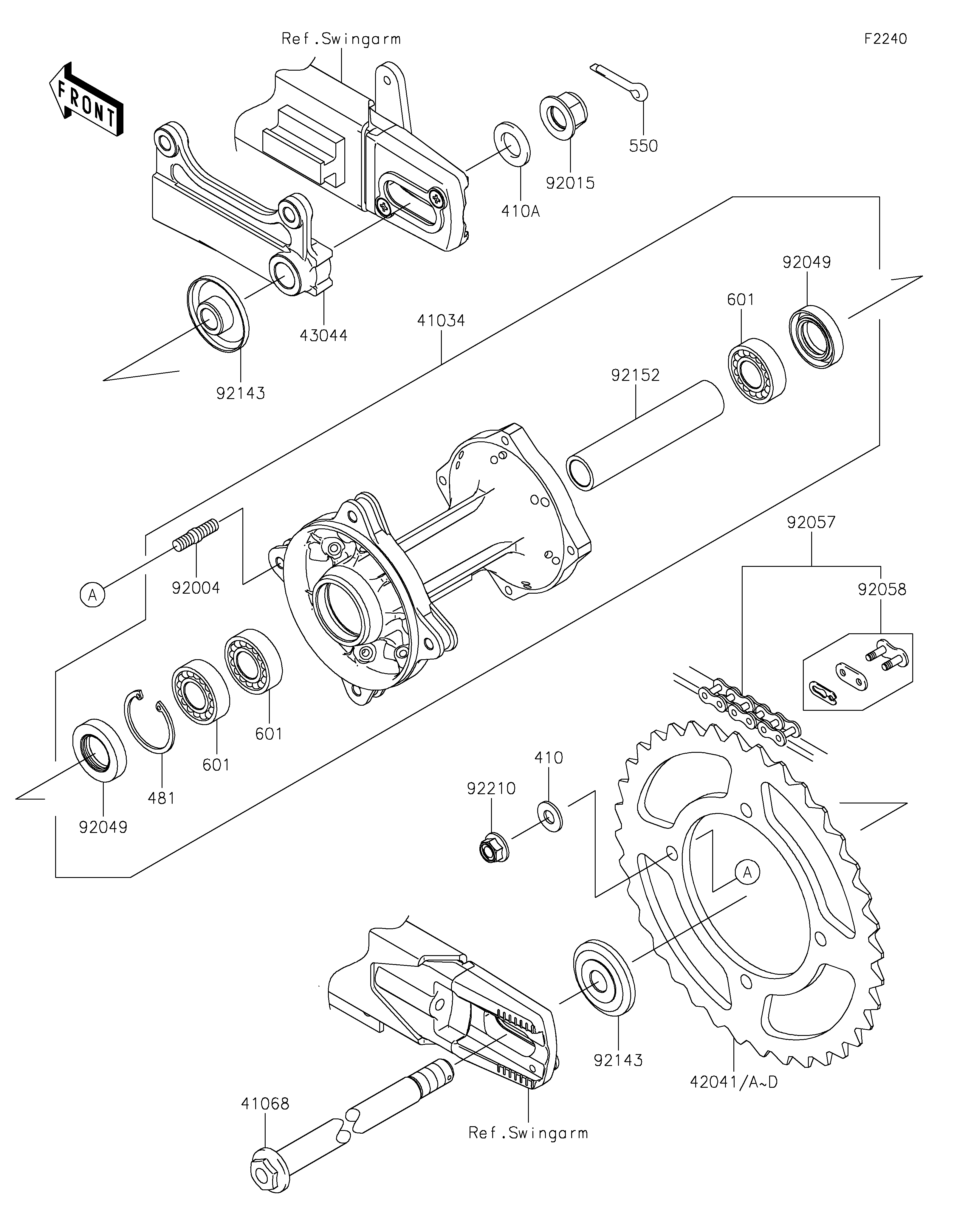

Parts Diagrams |
410
41034
41068
410A
42041
42041A
42041B
42041C
42041D
43044
481
550
601
601
601
92004
92015
92049
92049
92057
92058
92143
92143
92152
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WASHER-PLAIN-SMALL,8MM | 410 | 410AA0800 | 4 | ||
DRUM-ASSY,REAR BRAKE | 41034 | 41034-0570 | 1 | ||
AXLE,RR | 41068 | 41068-1401 | 1 | ||
WASHER-PLAIN-SMALL,14MM | 410A | 410AA1400 | 1 | ||
SPROCKET-HUB,49T | 42041 | 42041-1207 | 1 | (OPTION) | |
SPROCKET-HUB,48T | 42041A | 42041-1227 | 1 | (OPTION) | |
SPROCKET-HUB,50T | 42041B | 42041-1228 | 1 | ||
SPROCKET-HUB,51T | 42041C | 42041-1229 | 1 | (OPTION) | |
SPROCKET-HUB,52T | 42041D | 42041-1245 | 1 | (OPTION) | |
HOLDER-COMP-CALIPER | 43044 | 43044-1122 | 1 | ||
CIRCLIP-TYPE-C,35MM | 481 | 481J3500 | 1 | ||
PIN-COTTER,2.5X20 | 550 | 550AA2520 | 1 | ||
BEARING-BALL | 601 | 601B6202UU | 3 | ||
STUD,8X16 | 92004 | 92004-0730 | 4 | ||
NUT,FLANGED,14MM | 92015 | 92015-1401 | 1 | ||
SEAL-OIL | 92049 | 92049-1469 | 2 | ||
CHAIN,DRIVE,DID420DS2X120L | 92057 | 92057-1496 | 1 | ||
JOINT-CHAIN,DRIVE | 92058 | 92058-1086 | 1 | ||
COLLAR,RR AXLE,L=12.5 | 92143 | 92143-1938 | 2 | ||
COLLAR,RR BRAKE DRUM,L=95 | 92152 | 92152-1090 | 1 | ||
NUT,FLANGED,LOCK,8MM | 92210 | 92210-0493 | 4 |
WASHER-PLAIN-SMALL,8MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DRUM-ASSY,REAR BRAKE | |
REF # | 41034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE,RR | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,14MM | |
REF # | 410A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-HUB,49T | |
REF # | 42041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,48T | |
REF # | 42041A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,50T | |
REF # | 42041B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-HUB,51T | |
REF # | 42041C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,52T | |
REF # | 42041D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
HOLDER-COMP-CALIPER | |
REF # | 43044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,35MM | |
REF # | 481 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-COTTER,2.5X20 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
STUD,8X16 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,FLANGED,14MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CHAIN,DRIVE,DID420DS2X120L | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-CHAIN,DRIVE | |
REF # | 92058 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR AXLE,L=12.5 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,RR BRAKE DRUM,L=95 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,LOCK,8MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
