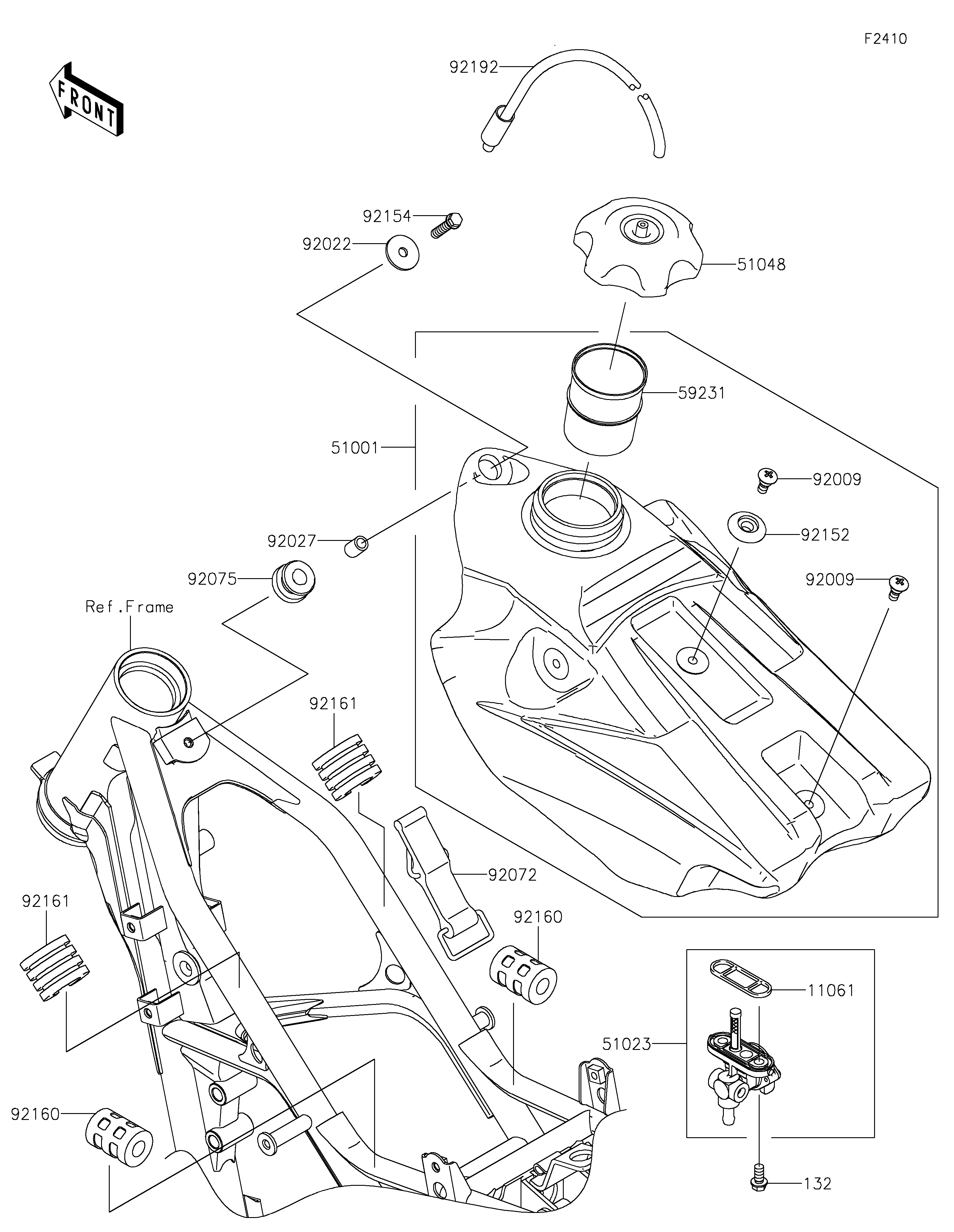

Parts Diagrams |
11061
132
51001
51023
51048
59231
92009
92009
92022
92027
92072
92075
92152
92154
92160
92160
92161
92161
92192
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FUEL TAP | 11061 | 11061-0181 | 1 | ||
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 2 | ||
| TANK-COMP-FUEL | 51001 | 51001-0776 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-0024 | 1 | ||
| CAP-ASSY-TANK,FUEL | 51048 | 51048-0009 | 1 | ||
| FILLER | 59231 | 59231-0019 | 1 | ||
| SCREW,6MM | 92009 | 92009-1971 | 2 | ||
| WASHER,6.5X24X2 | 92022 | 92022-1690 | 1 | ||
| COLLAR,6.8X10X14 | 92027 | 92027-1966 | 1 | ||
| BAND,FUEL TANK | 92072 | 92072-1229 | 1 | ||
| DAMPER | 92075 | 92075-1787 | 1 | ||
| COLLAR | 92152 | 92152-1346 | 1 | ||
| BOLT,FLANGED,6X25 | 92154 | 92154-0520 | 1 | ||
| DAMPER,FUEL TANK | 92160 | 92160-1236 | 2 | ||
| DAMPER,FUEL TANK | 92161 | 92161-1175 | 2 | ||
| TUBE | 92192 | 92192-0161 | 1 |
| GASKET,FUEL TAP | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X12 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL | |
| REF # | 51001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAP-ASSY,FUEL | |
| REF # | 51023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-TANK,FUEL | |
| REF # | 51048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILLER | |
| REF # | 59231 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6MM | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X24X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X14 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,FUEL TANK | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
