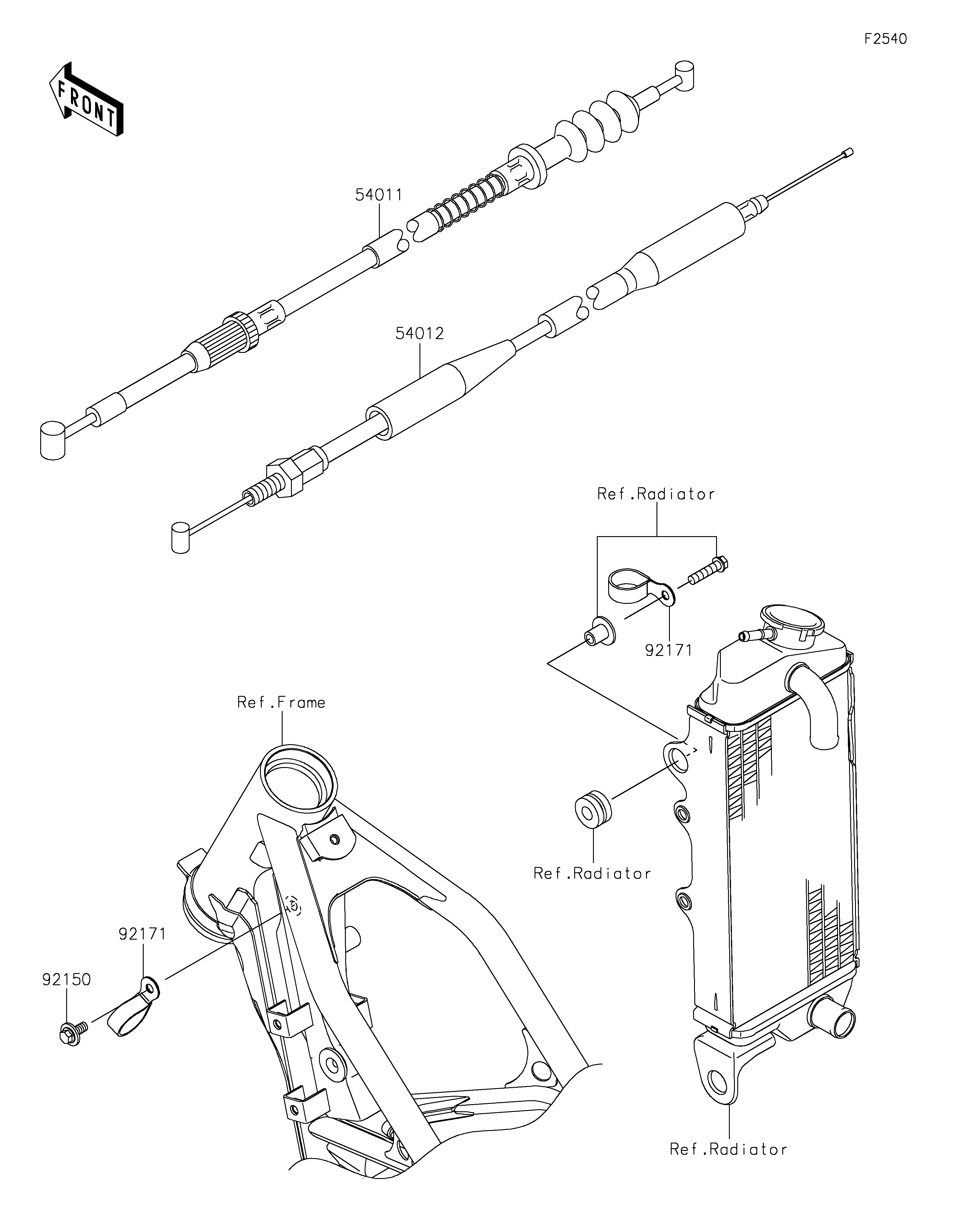

54011
54012
92150
92171
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-CLUTCH 54011 54011-0572 1
CABLE-THROTTLE 54012 54012-0595 1
BOLT,6X14 92150 92150-1340 1
CLAMP 92171 92171-1279 2
