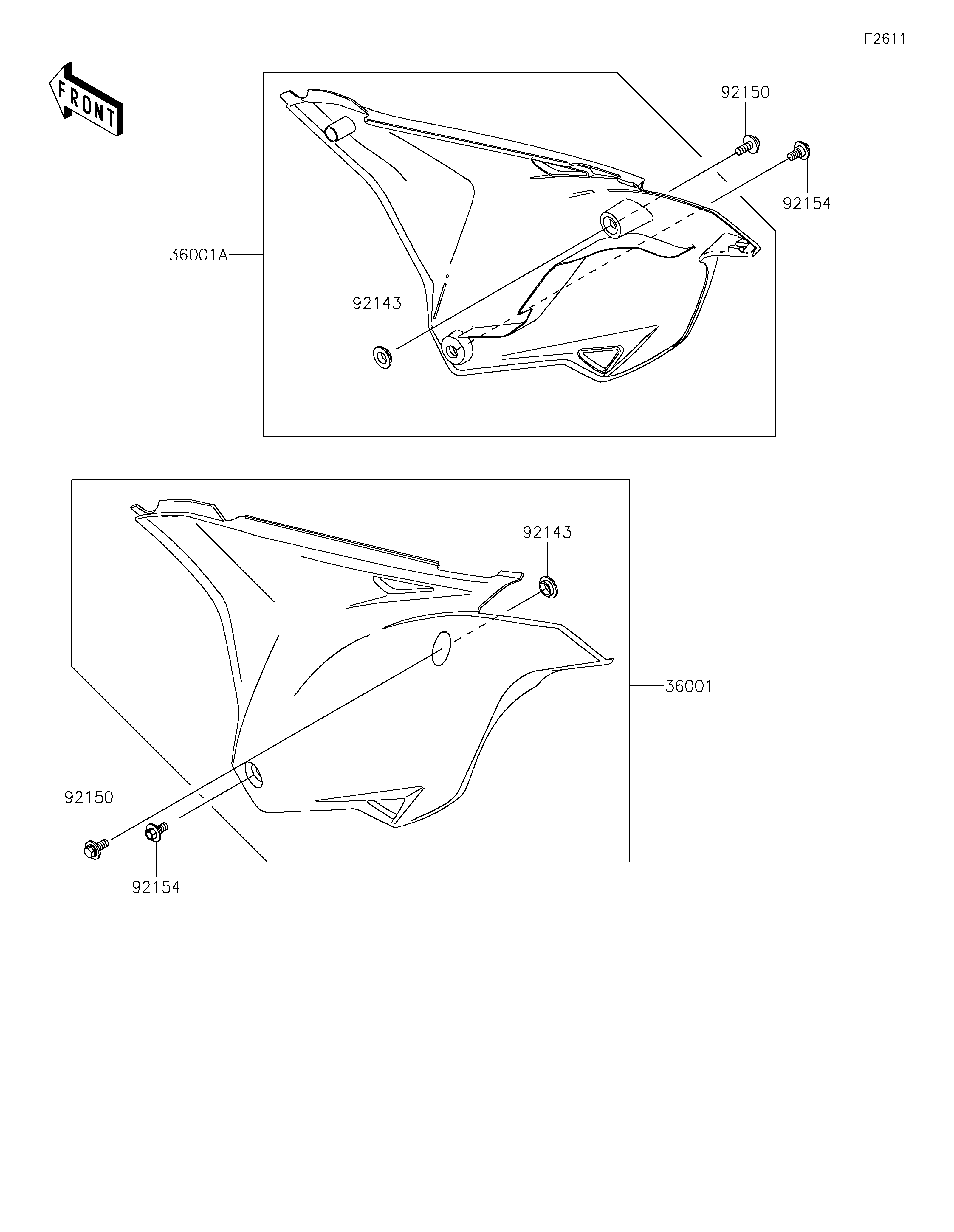

36001
36001A
92143
92143
92150
92150
92154
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,L.GREEN 36001 36001-0591-290 1
COVER-SIDE,RH,L.GREEN 36001A 36001-0592-290 1
COLLAR 92143 92143-1196 2
BOLT,FLANGED,6X16 92150 92150-1506 2
BOLT,FLANGED,6X9 92154 92154-0546 2
