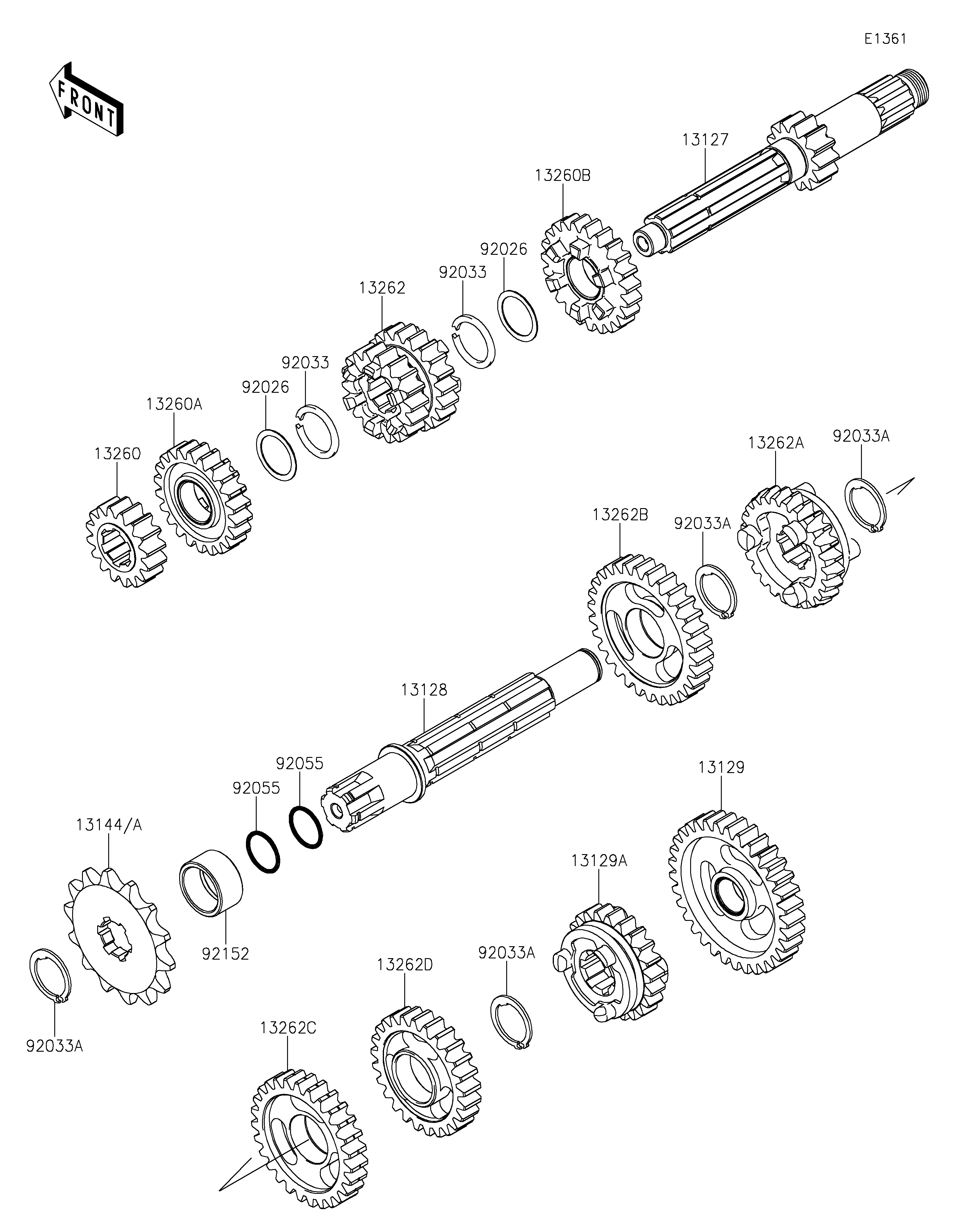

Parts Diagrams |
13127
13128
13129
13129A
13144
13144A
13260
13260A
13260B
13262
13262A
13262B
13262C
13262D
92026
92026
92033
92033
92033A
92033A
92033A
92033A
92055
92055
92152
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,13T | 13127 | 13127-1261 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-0022 | 1 | ||
| GEAR,OUTPUT LOW,33T | 13129 | 13129-1725 | 1 | ||
| GEAR,OUTPUT 6TH,22T | 13129A | 13129-1730 | 1 | ||
| SPROCKET-OUTPUT,13T | 13144 | 13144-0564 | 1 | ||
| SPROCKET-OUTPUT,14T | 13144A | 13144-1022 | 1 | (OPTION) | |
| GEAR,INPUT 2ND,16T | 13260 | 13260-1014 | 1 | ||
| GEAR,INPUT 5TH,22T | 13260A | 13260-1950 | 1 | ||
| GEAR,INPUT 6TH,23T | 13260B | 13260-1951 | 1 | ||
| GEAR,INPUT 3RD&4TH,18&20T | 13262 | 13262-0180 | 1 | ||
| GEAR,OUTPUT 5TH,24T | 13262A | 13262-0181 | 1 | ||
| GEAR,OUTPUT 2ND,30T | 13262B | 13262-0298 | 1 | ||
| GEAR,OUTPUT 3RD,27T | 13262C | 13262-0299 | 1 | ||
| GEAR,OUTPUT 4TH,25T | 13262D | 13262-0300 | 1 | ||
| SPACER,18X23X0.50 | 92026 | 92026-1602 | 2 | ||
| RING-SNAP | 92033 | 92033-028 | 2 | ||
| RING-SNAP,18MM | 92033A | 92033-1079 | 4 | ||
| RING-O,17.5X1.5 | 92055 | 92055-022 | 2 | ||
| COLLAR,20X25X12.9 | 92152 | 92152-0195 | 1 |
| SHAFT-TRANSMISSION INPUT,13T | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OUTPUT | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,33T | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 6TH,22T | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,13T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,14T | |
| REF # | 13144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| GEAR,INPUT 2ND,16T | |
| REF # | 13260 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 5TH,22T | |
| REF # | 13260A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 6TH,23T | |
| REF # | 13260B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 3RD&4TH,18&20T | |
| REF # | 13262 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 5TH,24T | |
| REF # | 13262A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,30T | |
| REF # | 13262B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,27T | |
| REF # | 13262C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,25T | |
| REF # | 13262D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,18X23X0.50 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,18MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O,17.5X1.5 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,20X25X12.9 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
