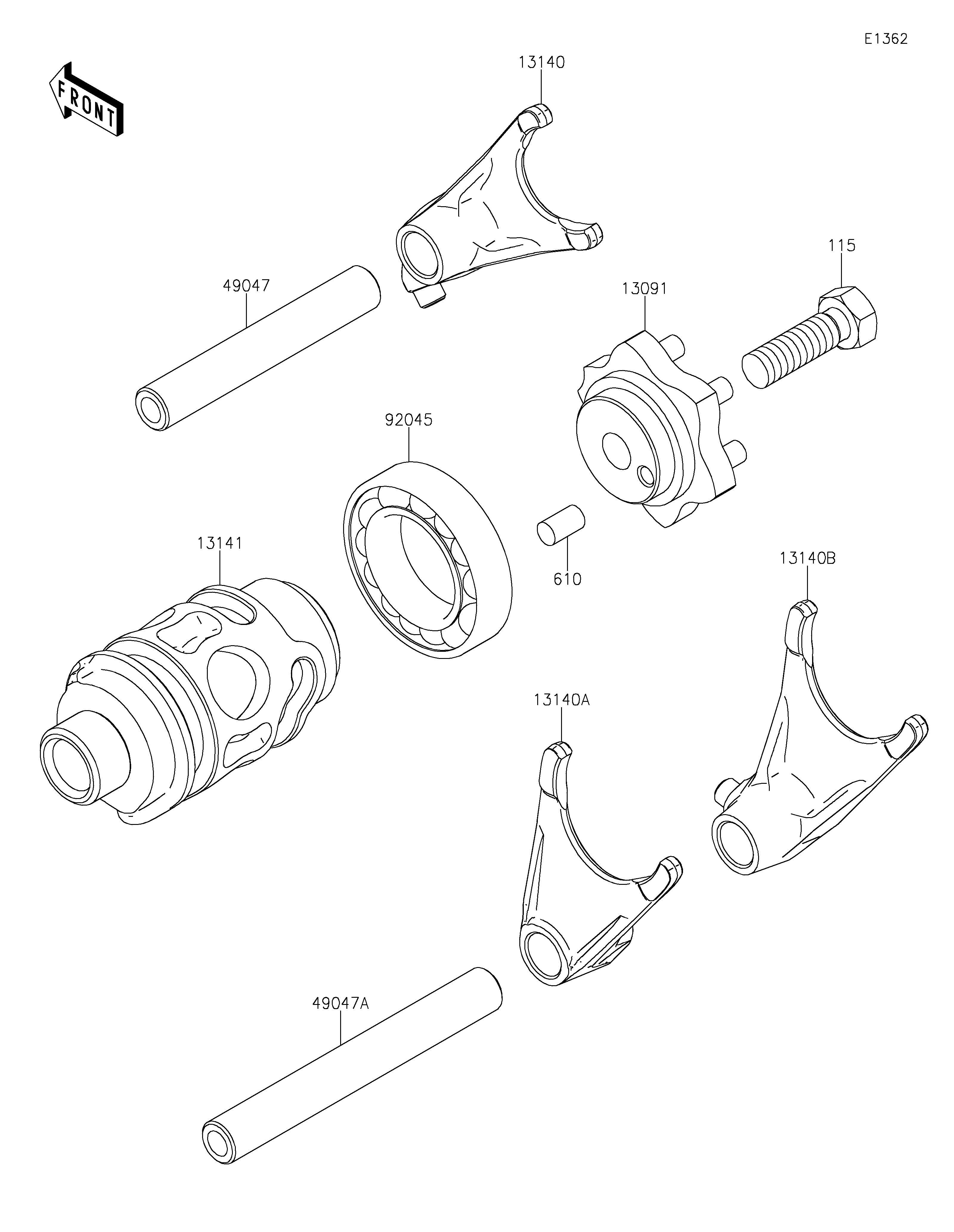

2021 KX100 - Gear Change Drum/Shift Fork(s)

115
13091
13140
13140A
13140B
13141
49047
49047A
610
92045
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X25 115 115BA0825 1
HOLDER,CHANGE DRUM 13091 13091-1390 1
FORK-SHIFT,5TH&6TH 13140 13140-1302 1
FORK-SHIFT,2ND&3RD 13140A 13140-1303 1
FORK-SHIFT,LOW&4TH 13140B 13140-1304 1
DRUM-CHANGE 13141 13141-1120 1
ROD-SHIFT,5.9X10X64.5 49047 49047-1063 1
ROD-SHIFT,5.9X10X81 49047A 49047-1064 1
ROLLER,4X8 610 610A0408 1
BEARING-BALL,6905Z 92045 92045-1058 1
