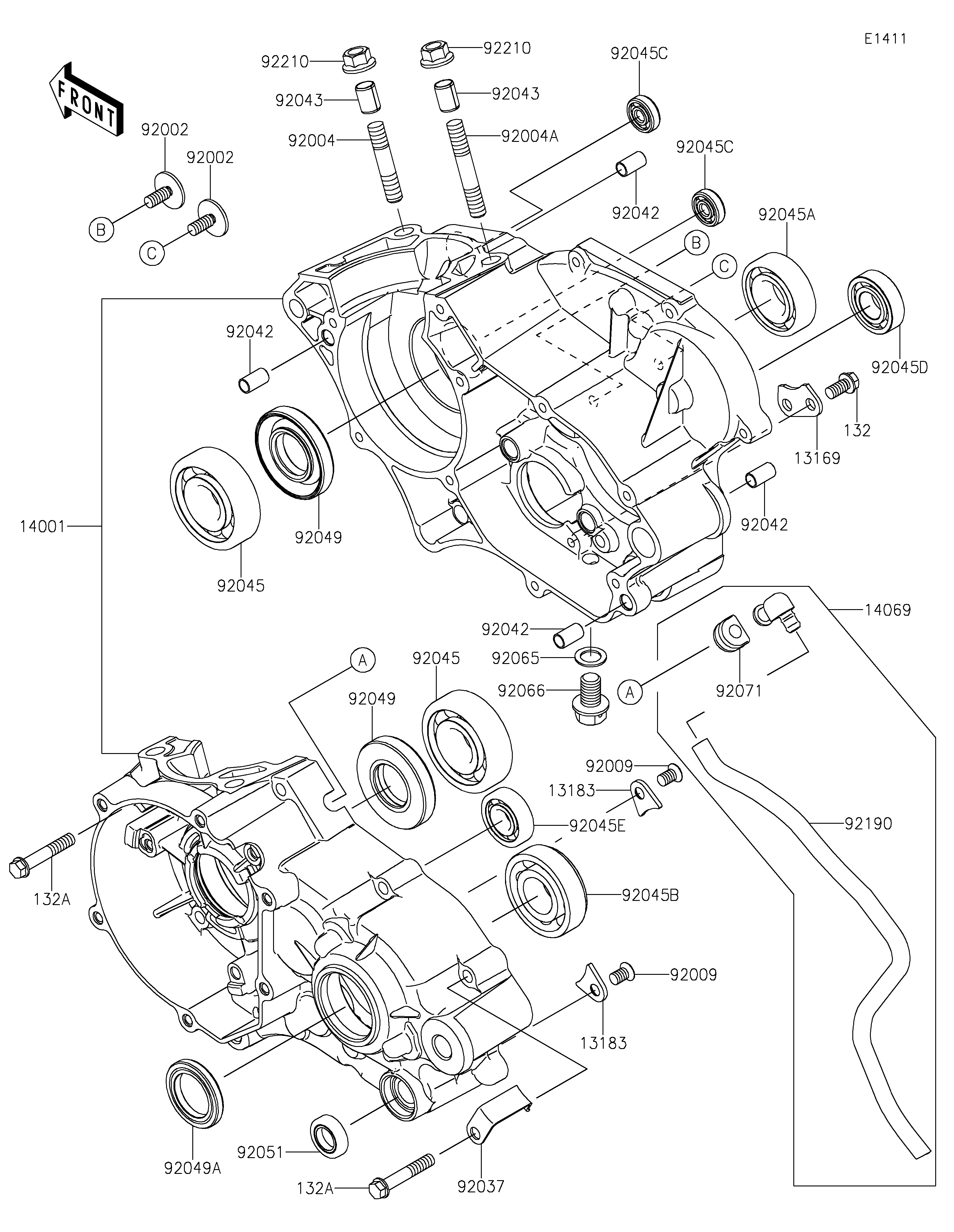

2021 KX™100 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
13169
13183
13183
132
132A
132A
14001
14069
92002
92002
92004
92004A
92009
92009
92037
92042
92042
92042
92042
92043
92043
92045
92045
92045A
92045B
92045C
92045C
92045D
92045E
92049
92049
92049A
92051
92065
92066
92071
92190
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,CHANGE DRUM 13169 13169-012 1
PLATE 13183 13183-1182 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
BOLT-FLANGED-SMALL,6X35 132A 132BA0635 9
SET-CRANKCASE 14001 14001-0681 1
BREATHER 14069 14069-1062 1
BOLT,6X16 92002 92002-1659 2
STUD,8X28.5 92004 92004-1252 2
STUD,8X37 92004A 92004-1254 2
SCREW,6X10 92009 92009-1563 2
CLAMP,HARNESS 92037 92037-1318 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
PIN,8.2X10X14 92043 92043-1264 2
BEARING-BALL,R-6304C3 92045 92045-1059 2
BEARING-BALL,6004TMB 92045A 92045-1118 1
BEARING-BALL,6204 92045B 92045-1226 1
BEARING-BALL,626MC3 92045C 92045-1304 2
BEARING-BALL,TMB002 92045D 92045-1360 1
BEARING-BALL,16101JRXC3 92045E 92045-1450 1
SEAL-OIL,SD20407GS 92049 92049-1188 2
SEAL-OIL,TC25375 92049A 92049-1292 1
SEAL-OIL,TB13225.5 92051 92051-005 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG,DRAIN 92066 92066-1437 1
GROMMET,BREATHER 92071 92071-042 1
TUBE,6X9X330 92190 92190-1116 1
NUT,8MM 92210 92210-0076 4
