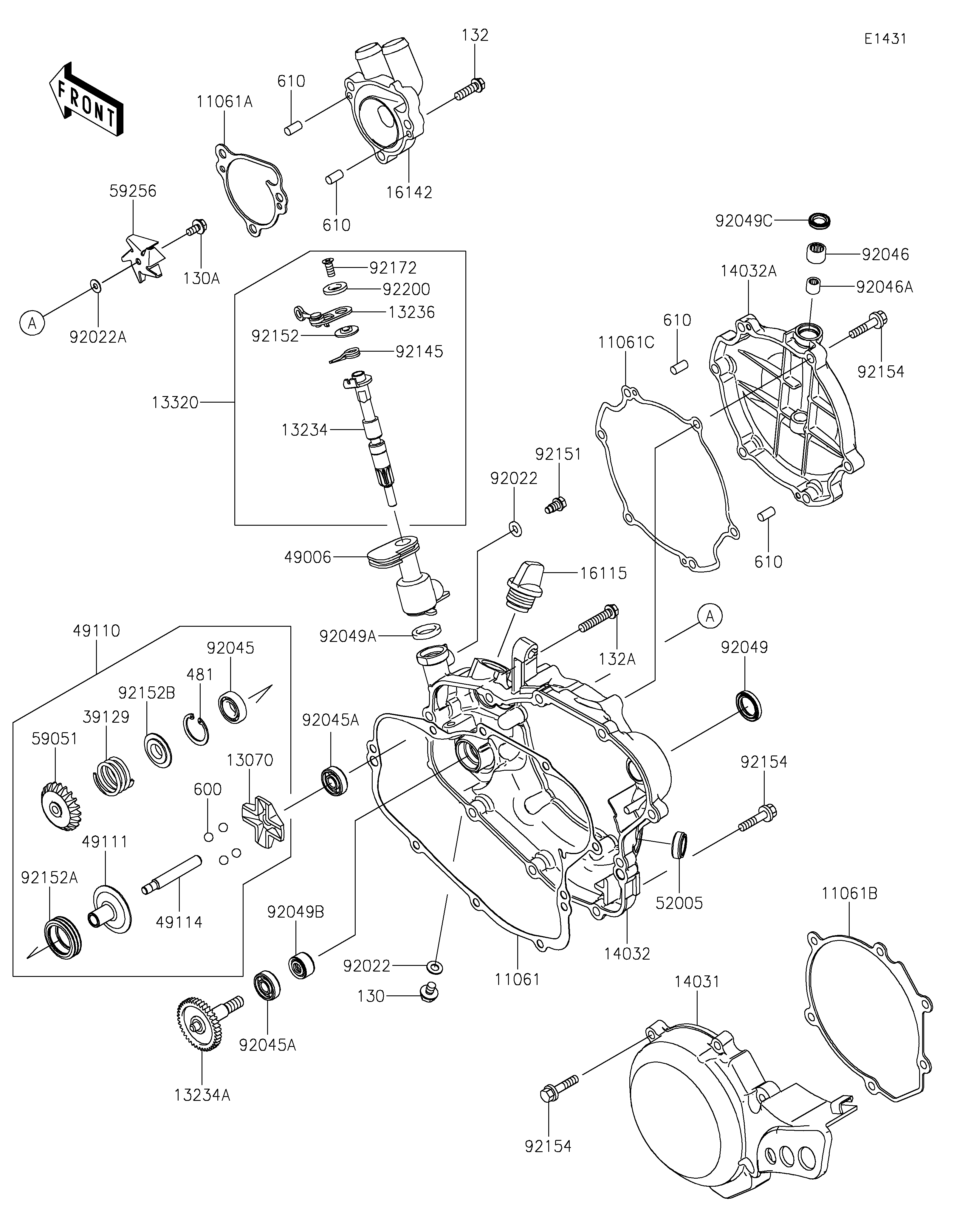

2021 KX™100 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
11061A
11061A
11061B
11061B
11061C
11061C
13070
13070
13234
13234
13234A
13234A
13236
13236
13320
13320
14031
14031
14032
14032
14032A
14032A
16115
16115
16142
16142
39129
39129
49006
49006
49110
49110
49111
49111
49114
49114
52005
52005
59051
59051
59256
59256
92022
92022
92022
92022
92022A
92022A
92045
92045
92045A
92045A
92045A
92045A
92046
92046
92046A
92046A
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
92145
92145
92151
92151
92152
92152
92152A
92152A
92152B
92152B
92154
92154
92154
92154
92154
92154
92172
92172
92200
92200
130
130
130A
130A
132
132
132A
132A
481
481
600
600
610
610
610
610
610
610
610
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CLUTCH COVER 11061 11061-0122 1
GASKET,PUMP COVER 11061A 11061-0184 1
GASKET,GENERATOR COVER 11061B 11061-0194 1
GASKET,CLUTCH COVER 11061C 11061-0869 1
GUIDE,GOVERNOR 13070 13070-1309 1
SHAFT-COMP 13234 13234-0008 1
SHAFT-COMP,WATER PUMP 13234A 13234-1103 1
LEVER-COMP 13236 13236-0023 1
LEVER-ASSY 13320 13320-0002 1
COVER-GENERATOR 14031 14031-0580 1
COVER-CLUTCH,INSIDE 14032 14032-0041 1
COVER-CLUTCH,OUTSIDE 14032A 14032-0578 1
CAP-OIL FILLER 16115 16115-018 1
COVER-PUMP,WATER 16142 16142-1144 1
SPRING-GOVERNOR 39129 39129-1022 1
BOOT,GOVERNOR 49006 49006-1313 1
GOVERNOR-ASSY 49110 49110-0014 1
HOLDER-GOVERNOR WEIGHT 49111 49111-1064 1
SHAFT-GOVERNOR 49114 49114-0005 1
GAUGE,OIL LEVEL 52005 52005-0019 1
GEAR-SPUR 59051 59051-1412 1
IMPELLER 59256 59256-1064 1
WASHER,6.1X12X1 92022 92022-077 2
WASHER,5.2X13X1 92022A 92022-1380 1
BEARING-BALL 92045 92045-0010 1
BEARING-BALL,608MC3 92045A 92045-1305 2
BEARING-NEEDLE,HK1010FM 92046 92046-0046 1
BEARING-NEEDLE,6BTM109 92046A 92046-1217 1
SEAL-OIL,SB16244 92049 92049-002 1
SEAL-OIL,AG0353-F0 92049A 92049-1262 1
SEAL-OIL,MHSD8X18X10J-1 92049B 92049-1366 1
SEAL-OIL,BG1408F0 92049C 92049-1414 1
SPRING 92145 92145-0089 1
BOLT,FLANGED,6X11 92151 92151-1180 1
COLLAR,LEVER 92152 92152-0085 1
COLLAR 92152A 92152-2327 1
COLLAR 92152B 92152-2328 1
BOLT,FLANGED,6X25 92154 92154-0520 20
SCREW,6X14 92172 92172-0087 1
WASHER,LEVER 92200 92200-0040 1
BOLT-FLANGED,6X8 130 130AA0608 1
BOLT-FLANGED,5X10 130A 130CA0510 1
BOLT-FLANGED-SMALL,6X20 132 132BA0620 3
BOLT-FLANGED-SMALL,6X30 132A 132BA0630 1
CIRCLIP-TYPE-C,24MM 481 481J2400 1
BALL-STEEL,5/16 600 600A1000 4
ROLLER,4X8 610 610A0408 4
