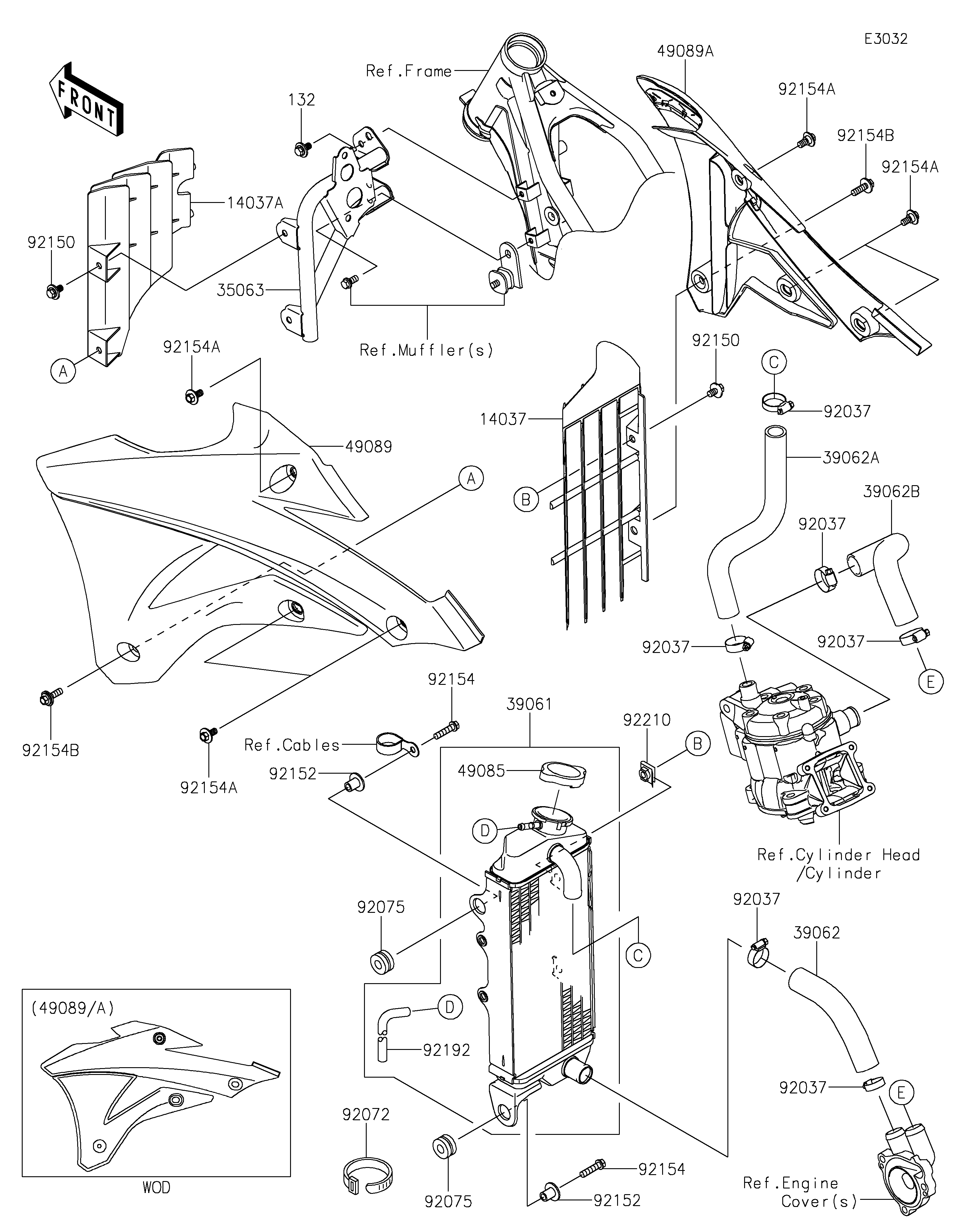

2021 KX™100 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
132
14037
14037A
35063
39061
39062
39062A
39062B
49085
49089
49089A
92037
92037
92037
92037
92037
92037
92072
92075
92075
92150
92150
92152
92152
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92192
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
SCREEN,RH,EBONY 14037 14037-0748-6C 1
SCREEN,LH,EBONY 14037A 14037-1282-6C 1
STAY 35063 35063-1137 1
RADIATOR-ASSY 39061 39061-0592 1
HOSE-COOLING,RADIATOR-PUMP 39062 39062-0646 1
HOSE-COOLING,HEAD-RADIATOR 39062A 39062-1425 1
HOSE-COOLING,CYLINDER PUMP 39062B 39062-1712 1
CAP-ASSY-PRESSURE 49085 49085-0006 1
SHROUD-ENGINE,LH,L.GREEN 49089 49089-0816-290 1
SHROUD-ENGINE,RH,L.GREEN 49089A 49089-0817-290 1
CLAMP,COOLING HOSE 92037 92037-1589 6
BAND,L=186 92072 92072-056 1
DAMPER 92075 92075-209 2
BOLT,6X12 92150 92150-1435 2
COLLAR 92152 92152-0666 2
BOLT,FLANGED,6X25 92154 92154-0520 2
BOLT,FLANGED,6X9 92154A 92154-0546 6
BOLT,FLANGED,6X20 92154B 92154-1268 2
TUBE,6X9X700 92192 92192-1334 1
NUT,CLIP,6MM 92210 92210-0867 2
