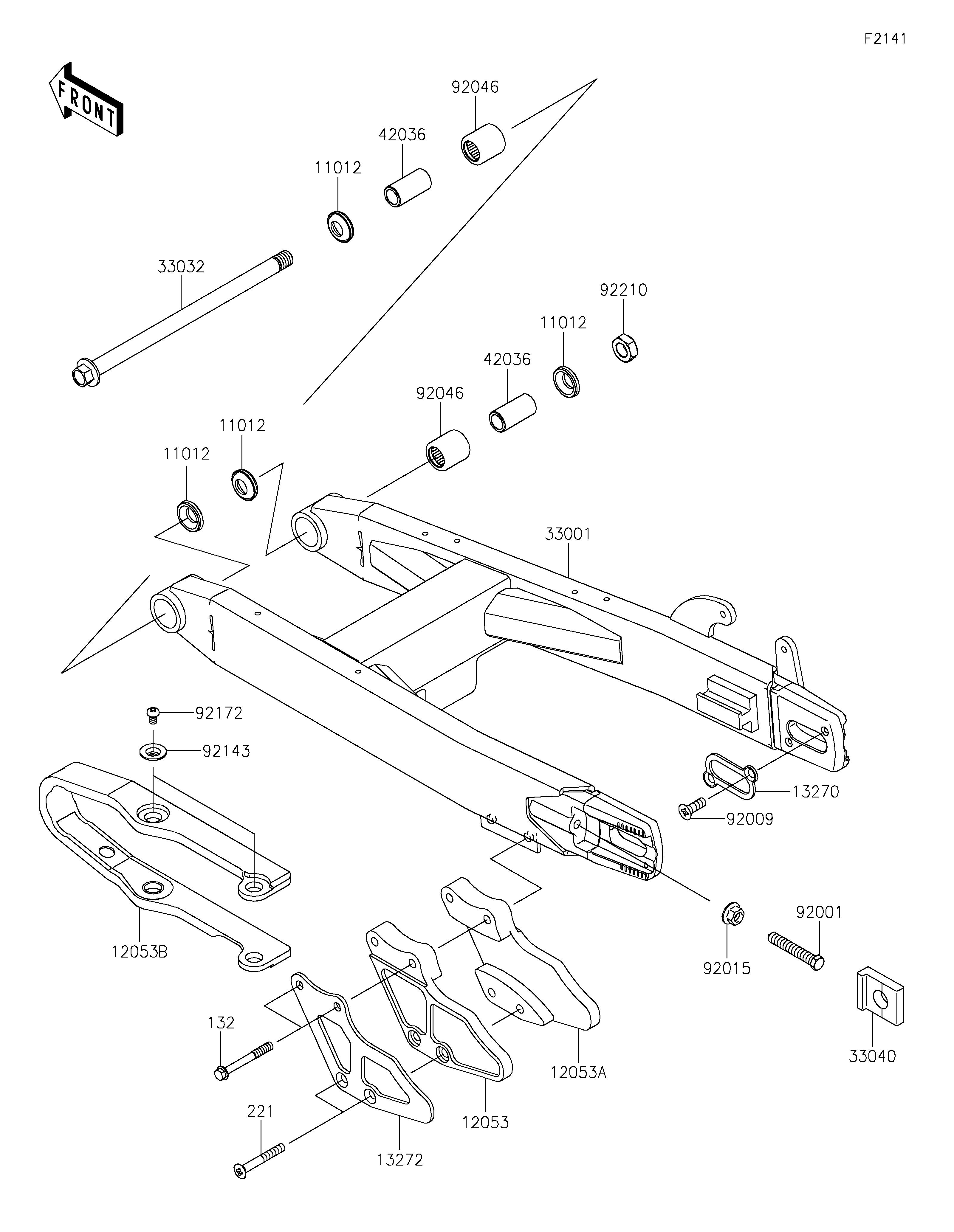

2021 KX™100 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
12053
12053A
12053B
132
13270
13272
221
33001
33032
33040
42036
42036
92001
92009
92015
92046
92046
92143
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1263 4
GUIDE-CHAIN,RR,LH 12053 12053-0209 1
GUIDE-CHAIN,RR,RH 12053A 12053-0210 1
GUIDE-CHAIN,FR 12053B 12053-1414 1
BOLT-FLANGED-SMALL,6X50 132 132BA0650 2
PLATE 13270 13270-1899 2
PLATE,GUIDE CHAIN 13272 13272-1446 1
SCREW-CSK-CROS,6X45 221 221AA0645 2
ARM-COMP-SWING 33001 33001-0611 1
SHAFT-SWING ARM 33032 33032-1161 1
ADJUSTER-CHAIN 33040 33040-0039 2
SLEEVE,SWING ARM,L=34 42036 42036-1067 2
BOLT,8X46 92001 92001-1179 2
SCREW,5X10 92009 92009-1828 4
NUT,FLANGED,8MM 92015 92015-1014 2
BEARING-NEEDLE 92046 92046-1046 2
COLLAR 92143 92143-1676 4
SCREW,5X8 92172 92172-0119 4
NUT,LOCK,12MM 92210 92210-1249 1
