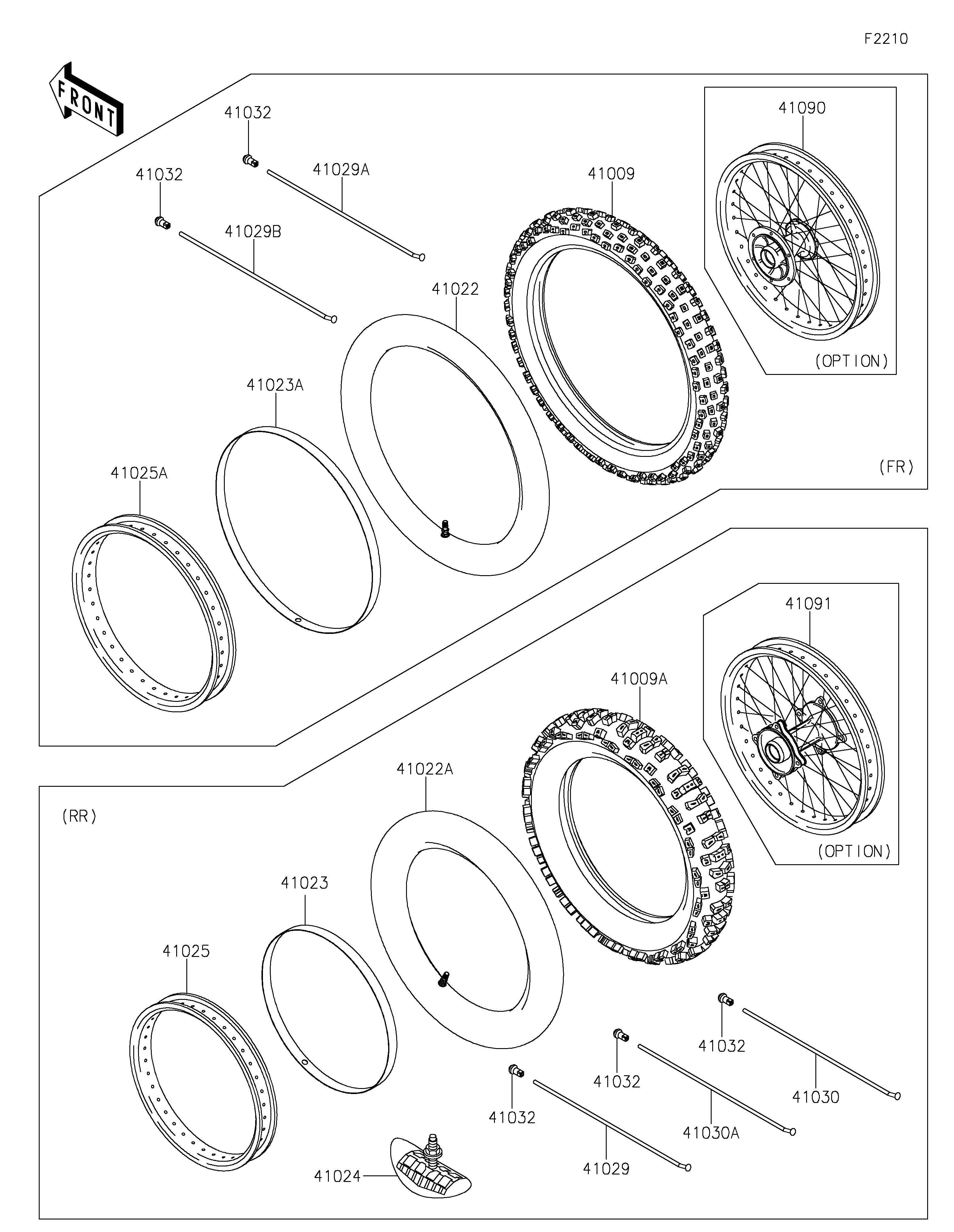

Parts Diagrams |
41009
41009A
41022
41022A
41023
41023A
41024
41025
41025A
41029
41029A
41029B
41030
41030A
41032
41032
41032
41032
41032
41090
41091
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TIRE,FR,70/100-19,MX51F(D) | 41009 | 41009-0555 | 1 | ||
TIRE,RR,90/100-16,MX51(D) | 41009A | 41009-0556 | 1 | ||
TUBE-TIRE,FR,70/100-19(D) | 41022 | 41022-1121 | 1 | ||
TUBE-TIRE,RR,90/100-16(D) | 41022A | 41022-1122 | 1 | ||
BAND-RIM,RR,90/100-16(D) | 41023 | 41023-1072 | 1 | ||
BAND-RIM,FR,90-100/90-19(D) | 41023A | 41023-1074 | 1 | ||
STOPPER-RIM,1.85-M(DUNLOP) | 41024 | 41024-011 | 1 | ||
RIM,RR,1.85X16,BLACK | 41025 | 41025-0337-WC | 1 | ||
RIM,FR,1.40X19,BLACK | 41025A | 41025-0338-WC | 1 | ||
SPOKE-INNER,RR,179MMX170D | 41029 | 41029-1278 | 14 | ||
SPOKE-INNER,FR,RH,211MMX165D | 41029A | 41029-1288 | 14 | ||
SPOKE-INNER,FR,LH,207MMX165D | 41029B | 41029-1289 | 14 | ||
SPOKE-OUTER,RR,RH,171MMX170D | 41030 | 41030-1151 | 7 | ||
SPOKE-OUTER,RR,LH,175MMX170D | 41030A | 41030-1161 | 7 | ||
NIPPLE-SPOKE,8X9X20(+),STEEL | 41032 | 41032-1077 | 56 | ||
WHEEL,FR,1.40X19,BLACK | 41090 | 41090-0103-WC | 1 | (OPTION) | |
WHEEL,RR,1.85X16,BLACK | 41091 | 41091-0018-WC | 1 | (OPTION) |
