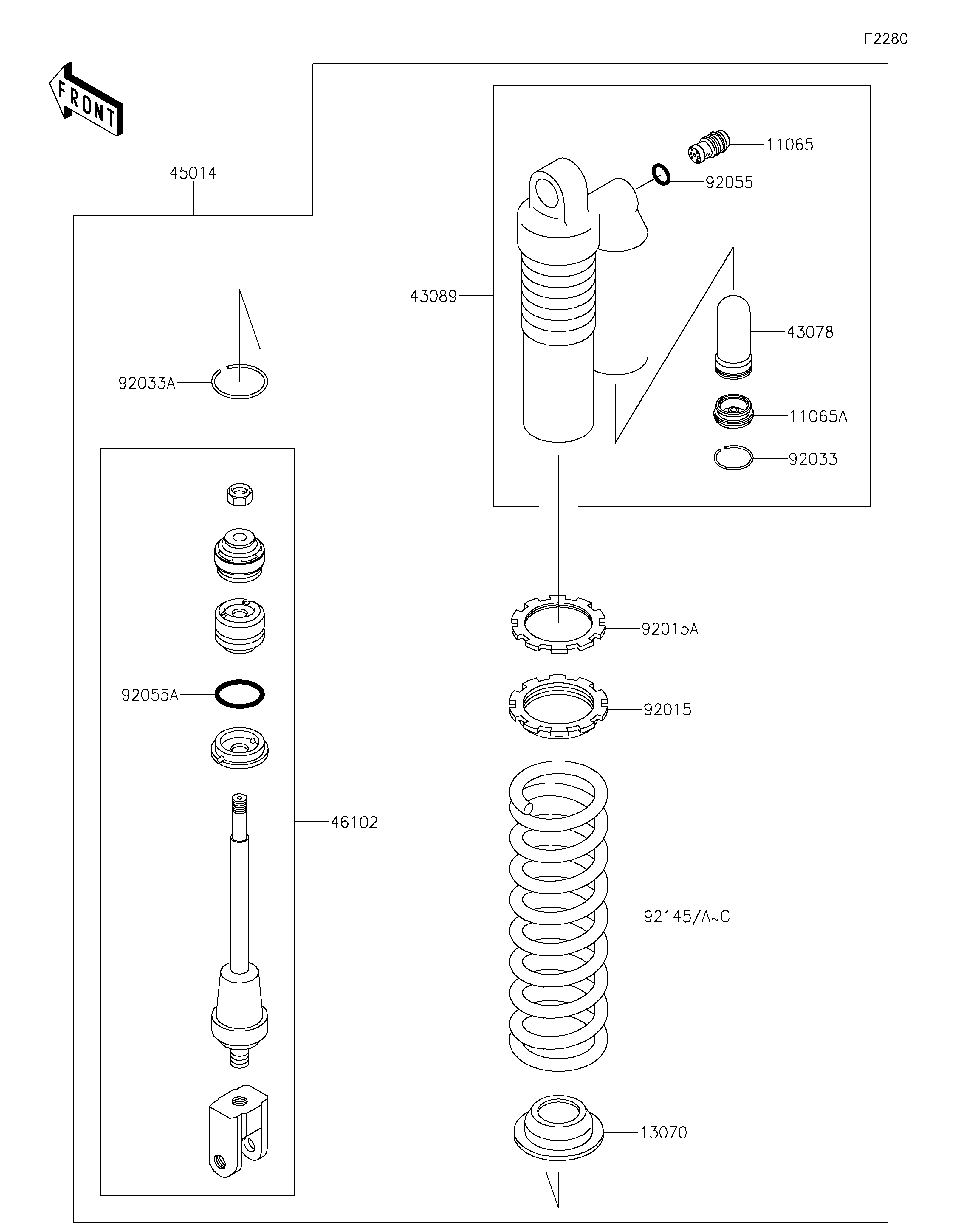

2021 KX™100 - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
11065
11065A
13070
43078
43089
45014
46102
92015
92015A
92033
92033A
92055
92055A
92145
92145A
92145B
92145C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,G.B.GREEN 11065 11065-0824-50Y 1
CAP,RESERVOIR 11065A 11065-1310 1
GUIDE,SPRING 13070 13070-1233 1
RESERVOIR 43078 43078-0568 1
CYLINDER-SHOCKABSORBER,A.BLACK 43089 43089-0029-499 1
SHOCKABSORBER,BLACK+GRN 45014 45014-0562-52M 1
ROD 46102 46102-0618 1
NUT,SPRING ADJUST 92015 92015-1679 1
NUT,SPRING ADJUST LOCK 92015A 92015-1713 1
RING-SNAP,REARSHOCK 92033 92033-1091 1
RING-SNAP,SHOCKABSORBER 92033A 92033-1211 1
RING-O 92055 92055-0786 1
RING-O,ROD 92055A 92055-1334 1
SPRING,SHOCK,K=47N/MM,BLACK 92145 92145-0954-10 1
SPRING,SHOCK,K=43N/MM,BLACK 92145A 92145-0955-10 1 (OPTION)
SPRING,SHOCK,K=45N/MM,BLACK 92145B 92145-0956-10 1 (OPTION)
SPRING,SHOCK,K=49N/MM,BLACK 92145C 92145-0957-10 1 (OPTION)
