Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

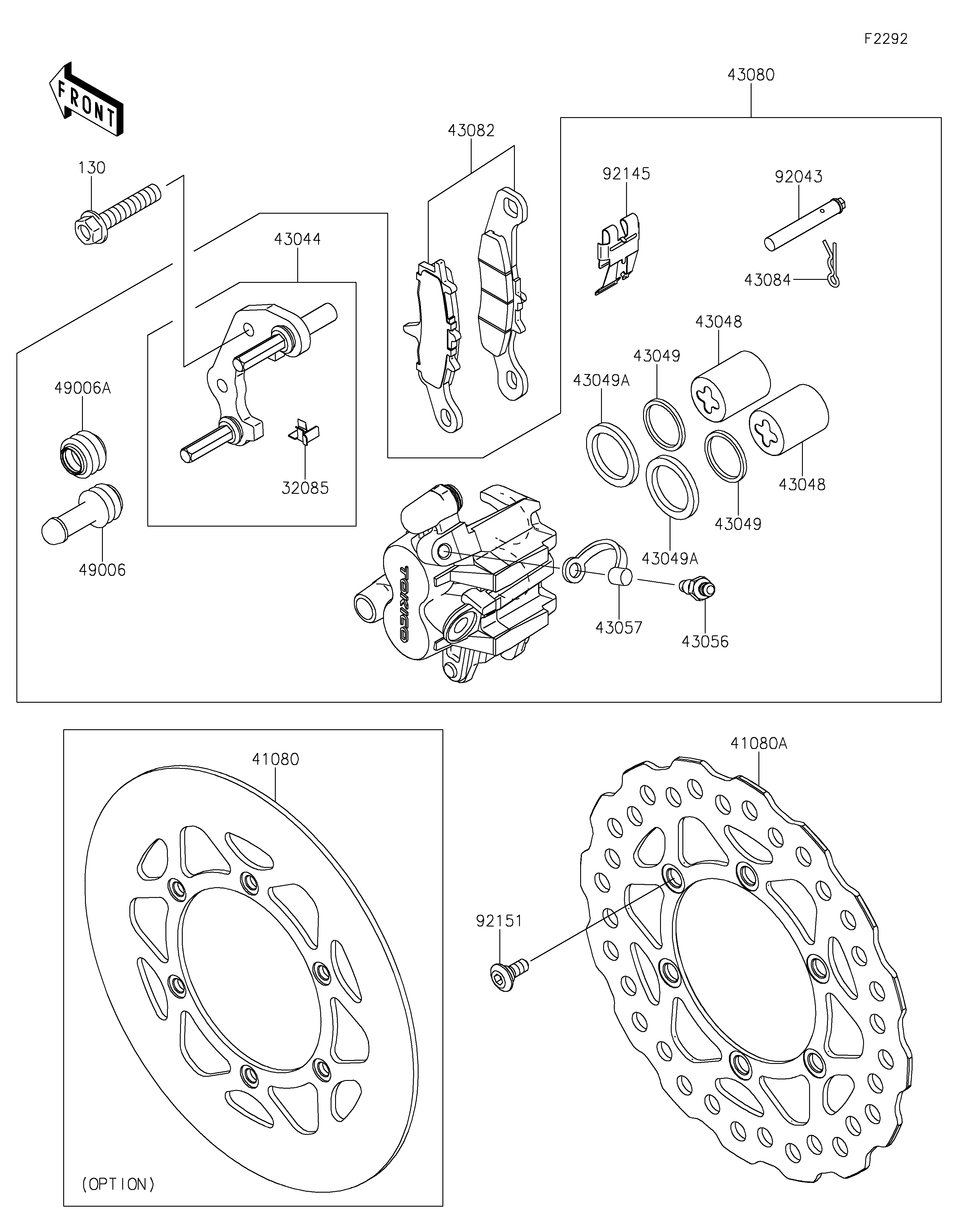

Parts Diagrams |
130
32085
41080
41080A
43044
43048
43048
43049
43049
43049A
43049A
43056
43057
43080
43082
43084
49006
49006A
92043
92145
92151
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X40 | 130 | 130CA0840 | 2 | ||
| STOPPER | 32085 | 32085-1437 | 1 | ||
| DISC,FR | 41080 | 41080-0112 | 1 | (OPTION) | |
| DISC,FR | 41080A | 41080-0118 | 1 | ||
| HOLDER-COMP-CALIPER,FR | 43044 | 43044-1119 | 1 | ||
| PISTON-CALIPER | 43048 | 43048-1083 | 2 | ||
| PACKING,PISTON | 43049 | 43049-1059 | 2 | ||
| PACKING,PISTON SEAL | 43049A | 43049-1090 | 2 | ||
| BREATHER-BRAKE | 43056 | 43056-0007 | 1 | ||
| CAP-BREATHER | 43057 | 43057-003 | 1 | ||
| CALIPER-SUB-ASSY,FR,LH | 43080 | 43080-0008 | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-1196 | 1 | ||
| CLAMP,PAD | 43084 | 43084-003 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1054 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1055 | 1 | ||
| PIN,PAD | 92043 | 92043-1356 | 1 | ||
| SPRING,PAD | 92145 | 92145-1260 | 1 | ||
| BOLT,DISC PLATE,6MM | 92151 | 92151-1799 | 6 |
