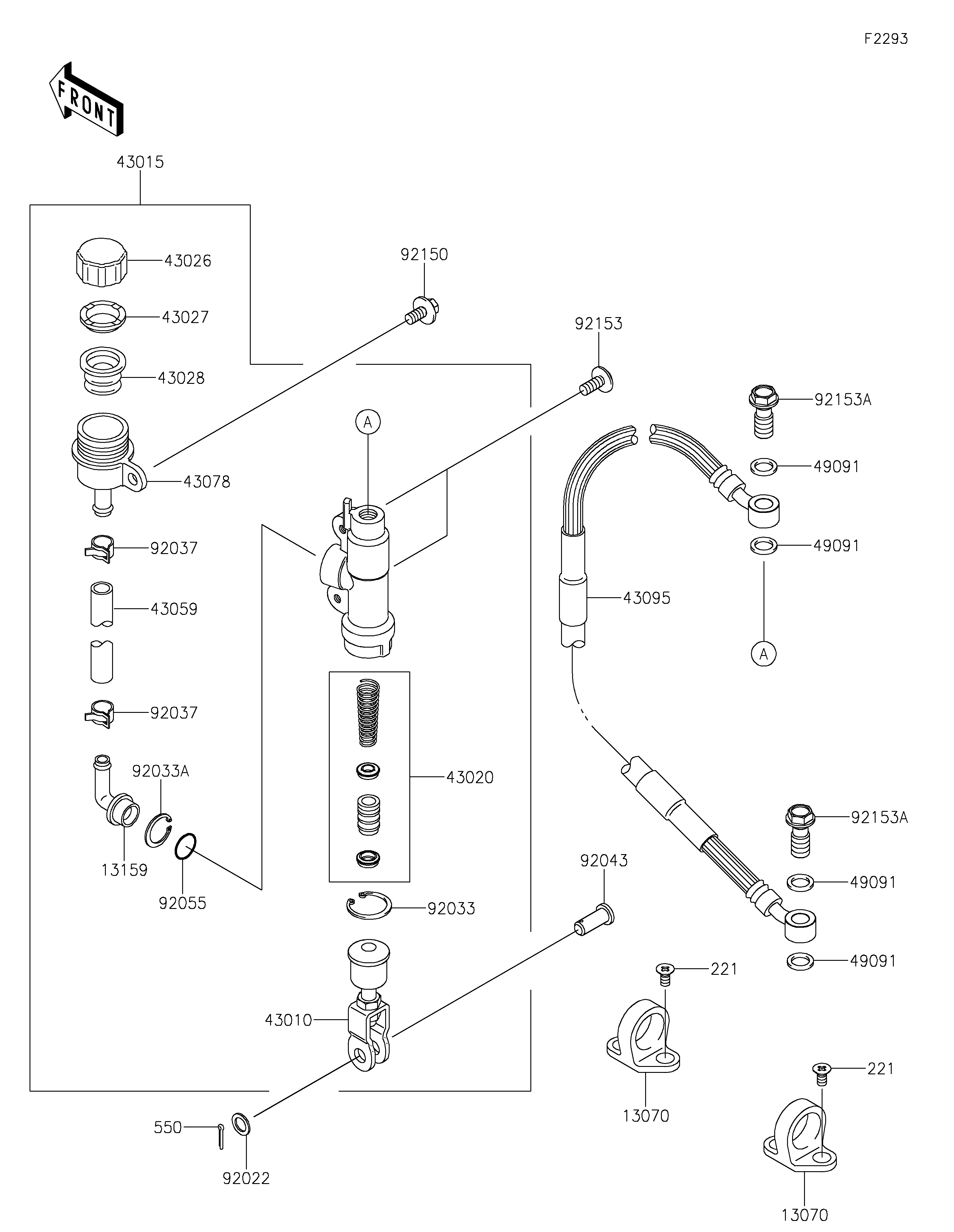

2021 KX™100 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13070
13070
13159
221
221
43010
43015
43020
43026
43027
43028
43059
43078
43095
49091
49091
49091
49091
550
92022
92033
92033A
92037
92037
92043
92055
92150
92153
92153A
92153A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,HOSE 13070 13070-1381 2
CONNECTOR 13159 13159-1056 1
SCREW-CSK-CROS,5X10 221 221AA0510 4
ROD-ASSY-BRAKE 43010 43010-1079 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1606 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1058 1
PLATE-DIAPHRAGM 43027 43027-1052 1
DIAPHRAGM 43028 43028-1060 1
HOSE-BRAKE,RR MASTER CYLINDER 43059 43059-1670 1
RESERVOIR 43078 43078-1068 1
HOSE-BRAKE,RR,L=567 43095 43095-0668 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
PIN-COTTER,2.0X15 550 550AA2015 1
WASHER,8.5X13X1 92022 92022-1028 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
CLAMP 92037 92037-1710 2
PIN 92043 92043-0004 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,6X14 92150 92150-1340 1
BOLT,SOCKET,6X14 92153 92153-1021 2
BOLT,OIL,L=23 92153A 92153-1419 2
