56030
56030A
56030A
56030B
56030C
56071
56071A

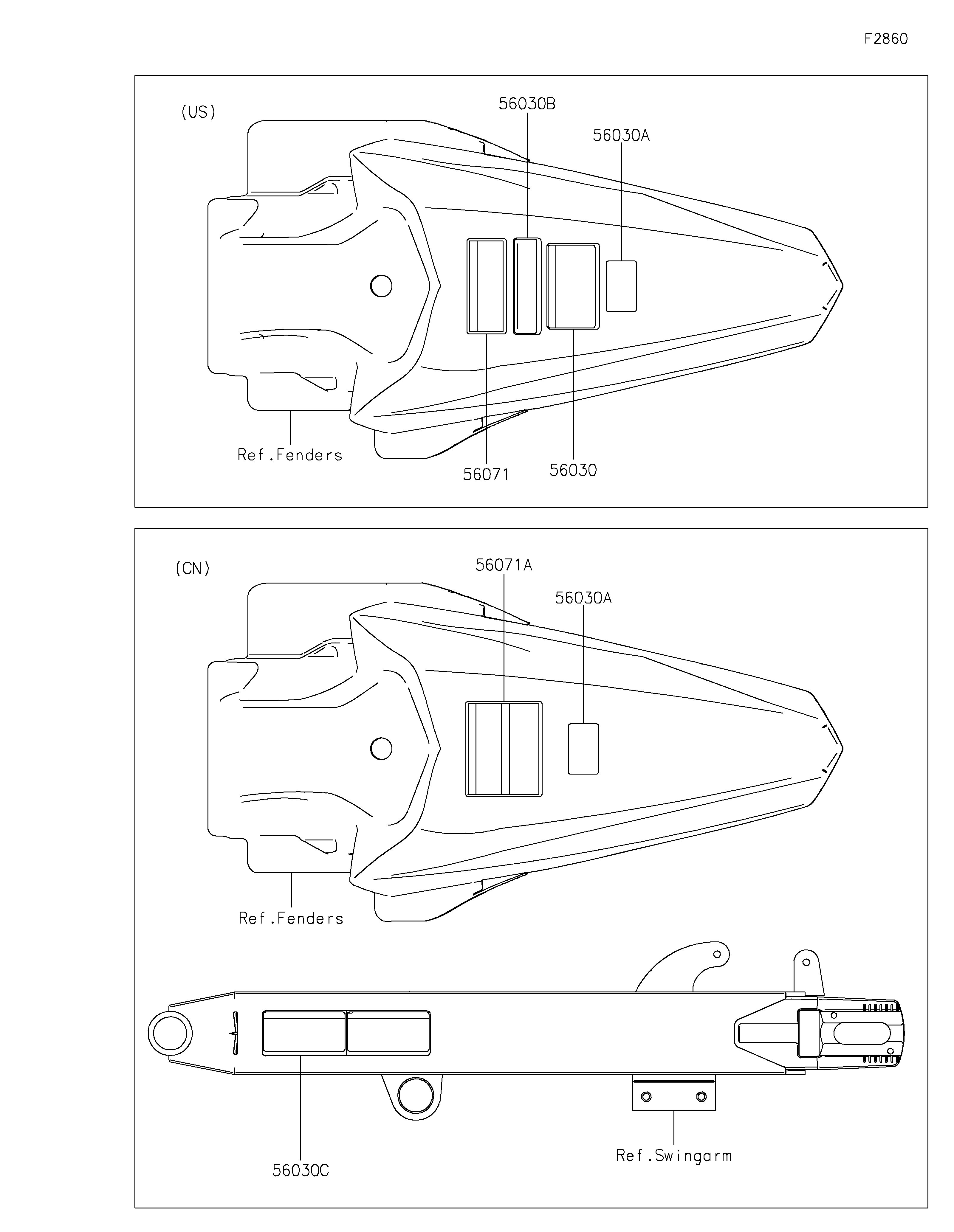

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,DISCLAIMER 56030 56030-0926 1 US
LABEL,32:1 56030A 56030-1230 1
LABEL,NOISE EMISSION 56030B 56030-1231 1 US
LABEL,DISCLAIMER 56030C 56030-1233 1 CN
LABEL-WARNING,IMPORTANT NOTICE 56071 56071-0028 1 US
LABEL-WARNING,IMPORTANT NOTICE 56071A 56071-0029 1 CN
