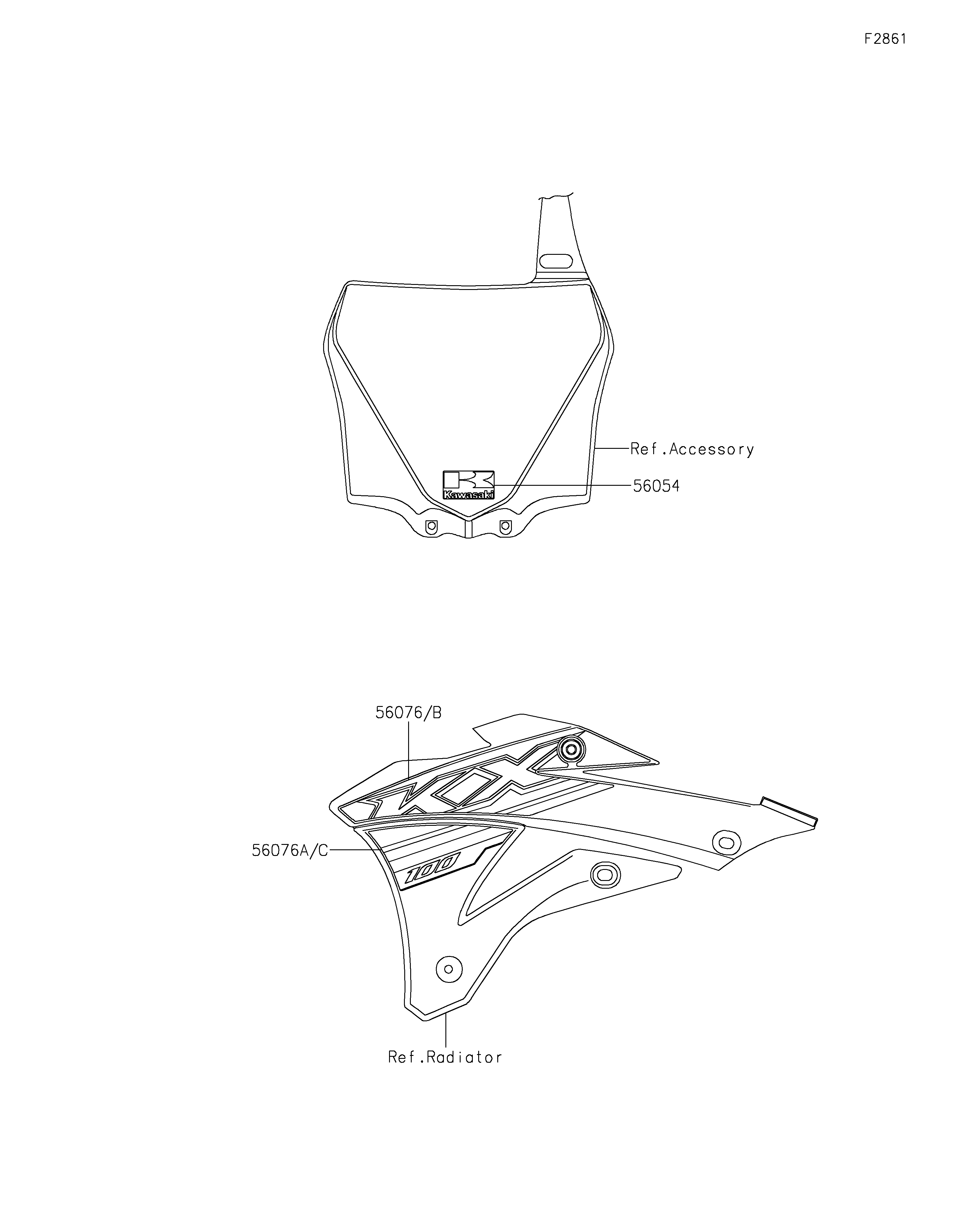

56054
56076
56076A
56076B
56076C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,NUMBER PLATE 56054 56054-2260 1
PATTERN,SHROUD,LH,UPP 56076 56076-1311 1
PATTERN,SHROUD,LH,LWR 56076A 56076-1312 1
PATTERN,SHROUD,RH,UPP 56076B 56076-1313 1
PATTERN,SHROUD,RH,LWR 56076C 56076-1314 1
