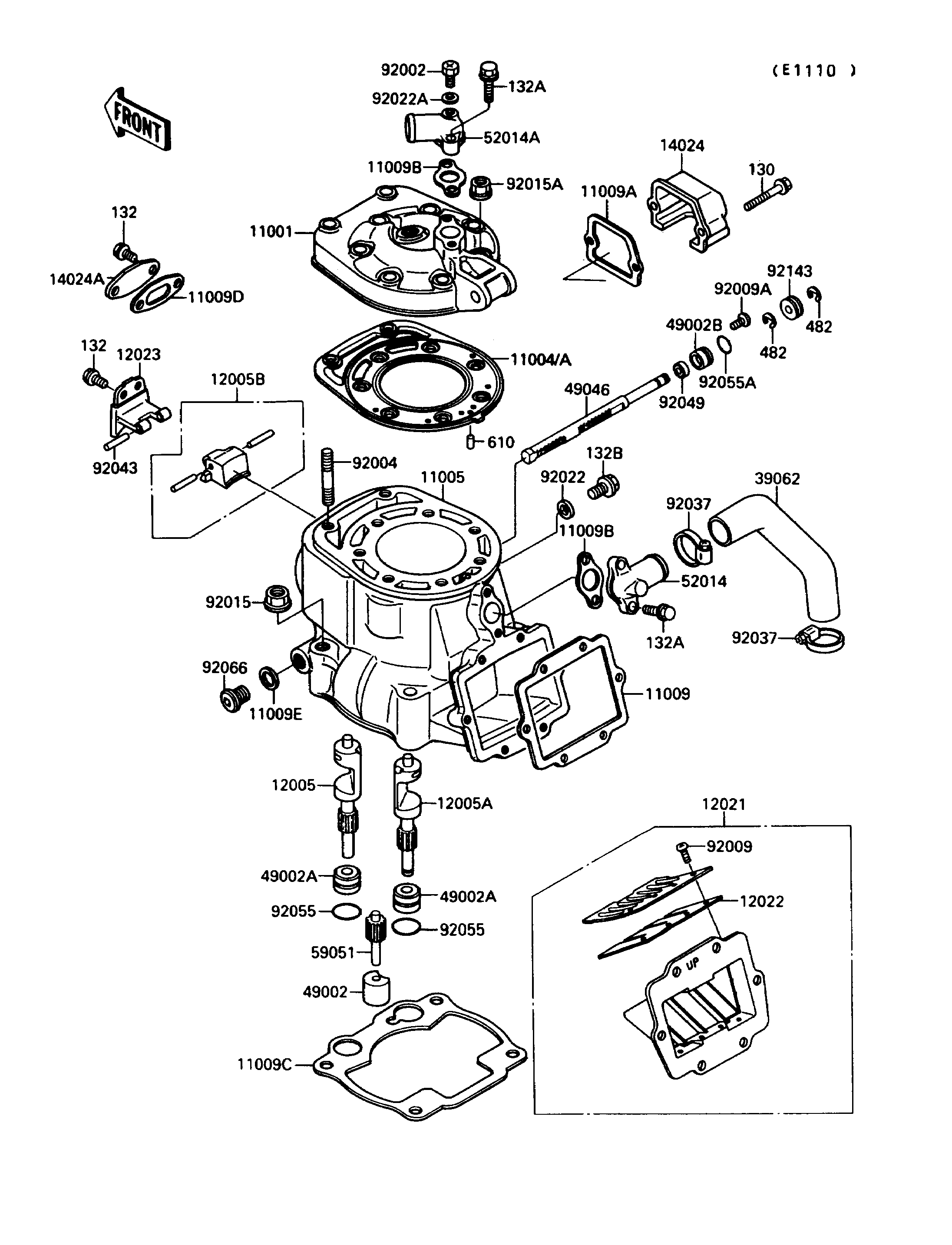

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HEAD-CYLINDER | 11001 | 11001-1293 | 1 | ||
| GASKET-HEAD,T=0.26 | 11004 | 11004-1174 | 1 | ||
| GASKET-HEAD,T=0.46 | 11004A | 11004-1197 | 1 | (OPTION) | |
| CYLINDER-ENGINE | 11005 | 11005-1566 | 1 | ||
| GASKET,REED VALVE | 11009 | 11009-1252 | 1 | ||
| GASKET,GOVERNOR COVER | 11009A | 11009-1625 | 1 | ||
| GASKET,ELBOW | 11009B | 11009-1696 | 2 | ||
| GASKET,CYLINDER BASE | 11009C | 11009-1700 | 1 | ||
| GASKET,VALVE COVER | 11009D | 11009-1701 | 1 | ||
| GASKET,12.5X18X1,DRAIN PLUG | 11009E | 92065-073 | 1 | ||
| VALVE-EXHAUST,LH | 12005 | 12005-1099 | 1 | ||
| VALVE-EXHAUST,RH | 12005A | 12005-1100 | 1 | ||
| VALVE-EXHAUST,CENTER | 12005B | 12005-1126 | 1 | ||
| VALVE-ASSY-REED | 12021 | 12021-1082 | 1 | ||
| VALVE-REED | 12022 | 12022-1066 | 2 | ||
| HOLDER-VALVE | 12023 | 12023-1055 | 1 | ||
| COVER,GOVERNOR | 14024 | 14024-1585 | 1 | ||
| COVER,CENTER VALVE | 14024A | 14024-1588 | 1 | ||
| HOSE-COOLING | 39062 | 39062-1105 | 1 | ||
| GUIDE-VALVE,IDLE GEAR | 49002 | 49002-1084 | 1 | ||
| GUIDE-VALVE | 49002A | 49002-1085 | 2 | ||
| GUIDE-VALVE | 49002B | 49002-1087 | 1 | ||
| ROD-GOVERNOR | 49046 | 49046-1063 | 1 | ||
| ELBOW | 52014 | 52014-1063 | 1 | ||
| ELBOW | 52014A | 52014-1064 | 1 | ||
| GEAR-SPUR,IDLE | 59051 | 59051-1194 | 1 | ||
| BOLT,6X10 | 92002 | 92002-1222 | 1 | ||
| STUD,8X35 | 92004 | 92004-1009 | 9 | ||
| SCREW,3X6 | 92009 | 92009-1371 | 8 | ||
| SCREW,5X10 | 92009A | 92009-1502 | 1 | ||
| NUT,FLANGED,10MM | 92015 | 92015-077 | 4 | ||
| NUT,8MM | 92015A | 92015-1143 | 9 | ||
| WASHER,8.2X14X1.0 | 92022 | 92022-1488 | 1 | ||
| WASHER,6.2X11X1 | 92022A | 92022-304 | 1 | ||
| CLAMP,COOLING HOSE | 92037 | 92037-1589 | 2 | ||
| PIN,4X23.8 | 92043 | 92043-1373 | 1 | ||
| SEAL-OIL,RSO-5.5X11X4 | 92049 | 92049-1206 | 1 | ||
| RING-O,17.5X1.5 | 92055 | 92055-022 | 2 | ||
| RING-O,11.5X1.5 | 92055A | 92055-1387 | 1 | ||
| PLUG,12X10 | 92066 | 92066-1222 | 1 | ||
| COLLAR | 92143 | 92143-1056 | 1 | ||
| BOLT-FLANGED | 130 | 130G0535 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0616 | 4 | ||
| BOLT-FLANGED-SMALL | 132A | 132G0625 | 4 | ||
| BOLT-FLANGED-SMALL | 132B | 132G0810 | 1 | ||
| CIRCLIP-TYPE-E,4MM | 482 | 482J4000 | 2 | ||
| ROLLER,4X8 | 610 | 610A0408 | 1 |
| HEAD-CYLINDER | |
| REF # | 11001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-HEAD,T=0.26 | |
| REF # | 11004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-HEAD,T=0.46 | |
| REF # | 11004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| CYLINDER-ENGINE | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,REED VALVE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,GOVERNOR COVER | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,ELBOW | |
| REF # | 11009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11009C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,VALVE COVER | |
| REF # | 11009D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,12.5X18X1,DRAIN PLUG | |
| REF # | 11009E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,LH | |
| REF # | 12005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,RH | |
| REF # | 12005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,CENTER | |
| REF # | 12005B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-REED | |
| REF # | 12022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOLDER-VALVE | |
| REF # | 12023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,GOVERNOR | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CENTER VALVE | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-VALVE,IDLE GEAR | |
| REF # | 49002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-VALVE | |
| REF # | 49002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUIDE-VALVE | |
| REF # | 49002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-GOVERNOR | |
| REF # | 49046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELBOW | |
| REF # | 52014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELBOW | |
| REF # | 52014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,IDLE | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,8X35 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SCREW,3X6 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X10 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.2X14X1.0 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X11X1 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,COOLING HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,4X23.8 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,RSO-5.5X11X4 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,17.5X1.5 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,11.5X1.5 | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,12X10 | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-E,4MM | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROLLER,4X8 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
