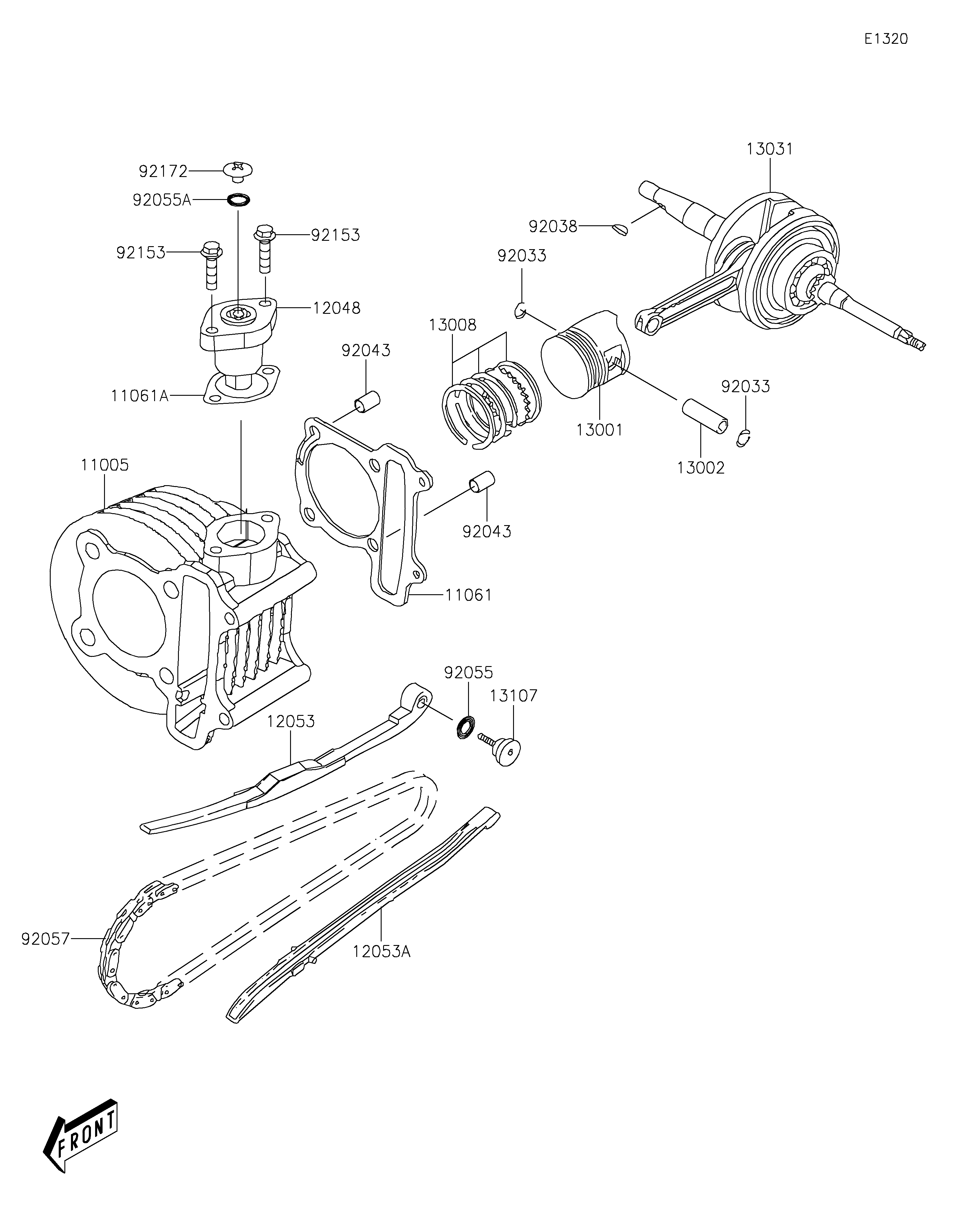

2021 KFX®90 - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
11005
11061
11061A
12048
12053
12053A
13001
13002
13008
13031
13107
92033
92033
92038
92043
92043
92055
92055A
92057
92153
92153
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-Y002 1
GASKET,CYLINDER BASE 11061 11061-Y009 1
GASKET 11061A 11061-Y012 1
TENSIONER-ASSY 12048 12048-Y005 1
GUIDE-CHAIN,TENSIONER 12053 12053-Y002 1
GUIDE-CHAIN 12053A 12053-Y004 1
PISTON-ENGINE 13001 13001-Y001 1
PIN-PISTON 13002 13002-Y001 1
RING-SET-PISTON 13008 13008-Y001 1
CRANKSHAFT-COMP 13031 13031-Y001 1
SHAFT,CHAIN GUIDE 13107 13107-Y001 1
RING-SNAP 92033 92033-Y001 2
KEY,WOODRUFF 92038 92038-Y001 1
PIN,10X16 92043 92043-Y013 2
RING-O,15.2X1.5 92055 92055-Y003 1
RING-O,1.5X9.5 92055A 92055-Y010 1
CHAIN,CAMSHAFT 92057 92057-Y002 1
BOLT,FLANGE,6X22 92153 92153-Y003 2
SCREW,6X6 92172 92172-Y002 1
