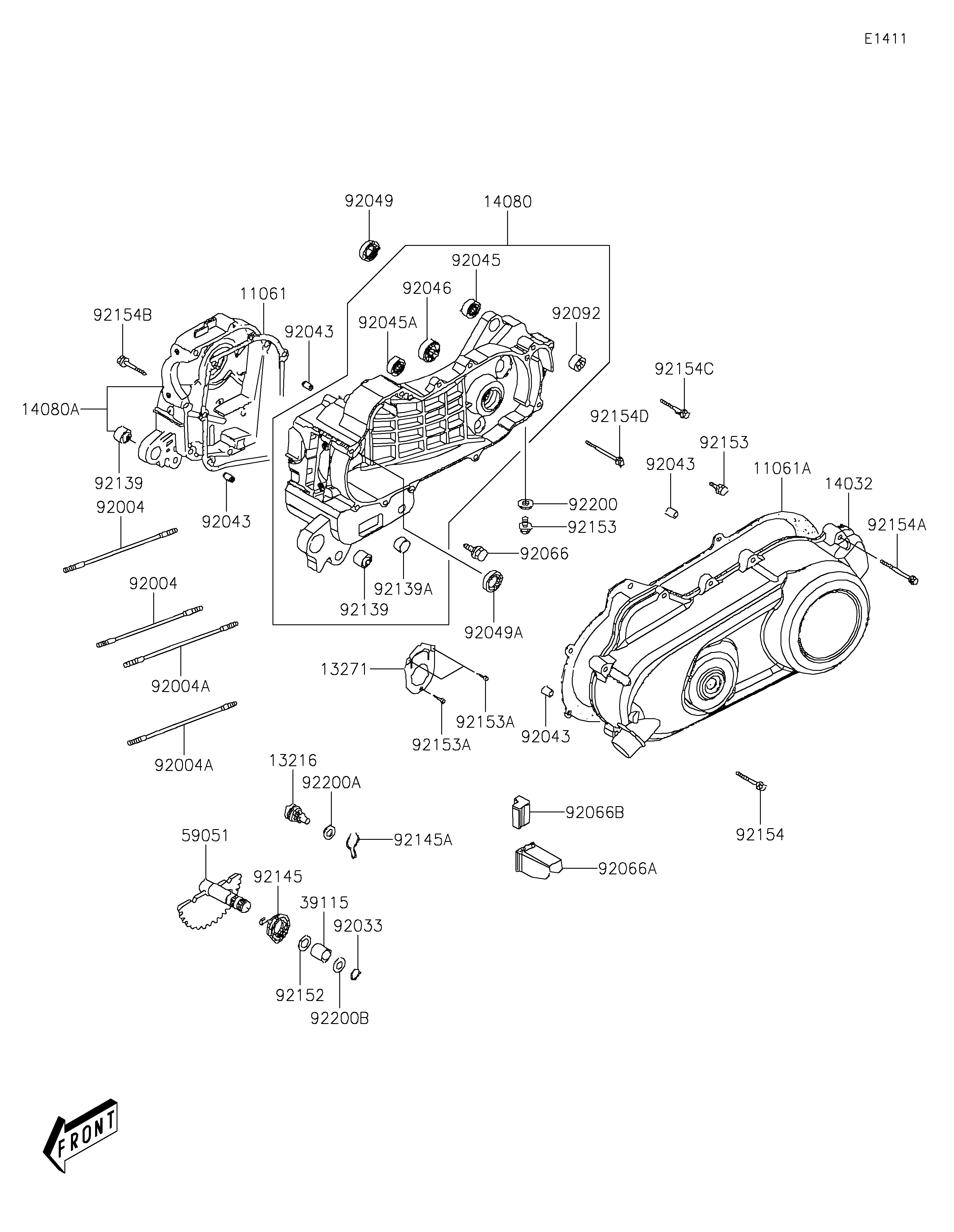

2021 KFX®90 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
13216
13271
14032
14080
14080A
39115
59051
92004
92004
92004A
92004A
92033
92043
92043
92043
92043
92045
92045A
92046
92049
92049A
92066
92066A
92066B
92092
92139
92139
92139A
92145
92145A
92152
92153
92153
92153A
92153A
92154
92154A
92154B
92154C
92154D
92200
92200A
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CRANK CASE 11061 11061-Y003 1
GASKET,CLUTCH COVER 11061A 11061-Y007 1
GEAR-COMP,KICK DRIVEN 13216 13216-Y002 1
PLATE 13271 13271-Y002 1
COVER-CLUTCH,F.BLACK 14032 14032-Y002-976 1
CRANKCASE,LH 14080 14080-Y003 1
CRANKCASE,RH 14080A 14080-Y007 1
SHAFT-IDLER,KICK 39115 39115-Y001 1
GEAR-SPUR,KICK STARTER 59051 59051-Y001 1
STUD,8X182.5 92004 92004-Y002 2
STUD,8X190.5 92004A 92004-Y004 2
RING-SNAP 92033 92033-Y012 1
PIN,8X14 92043 92043-Y012 4
BEARING-BALL,6203 92045 92045-Y006 1
BEARING-BALL,6204 92045A 92045-Y007 1
BEARING-NEEDLE 92046 92046-Y003 1
SEAL-OIL,20X32X6 92049 92049-Y004 1
SEAL-OIL,19.8X30X5 92049A 92049-Y041 1
PLUG,DRAIN 92066 92066-Y003 1
PLUG 92066A 92066-Y005 1
PLUG 92066B 92066-Y007 1
BUSHING-RUBBER 92092 92092-Y002 1
BUSHING 92139 92139-Y001 2
BUSHING 92139A 92139-Y002 1
SPRING 92145 92145-Y001 1
SPRING,KICK DRIVEN GEAR 92145A 92145-Y011 1
COLLAR 92152 92152-Y006 1
BOLT,FLANGE,8X12 92153 92153-Y031 2
BOLT,5X10 92153A 92153-Y058 3
BOLT,FLANGE,6X28 92154 92154-Y068 1
BOLT,FLANGE,6X35 92154A 92154-Y069 7
BOLT,FLANGE,6X45 92154B 92154-Y135 1
BOLT,FLANGE,8X45 92154C 92154-Y136 6
BOLT,FLANGE,8X60 92154D 92154-Y141 1
WASHER,8MM 92200 92200-Y001 1
WASHER,10MM 92200A 92200-Y002 1
WASHER 92200B 92200-Y008 1
