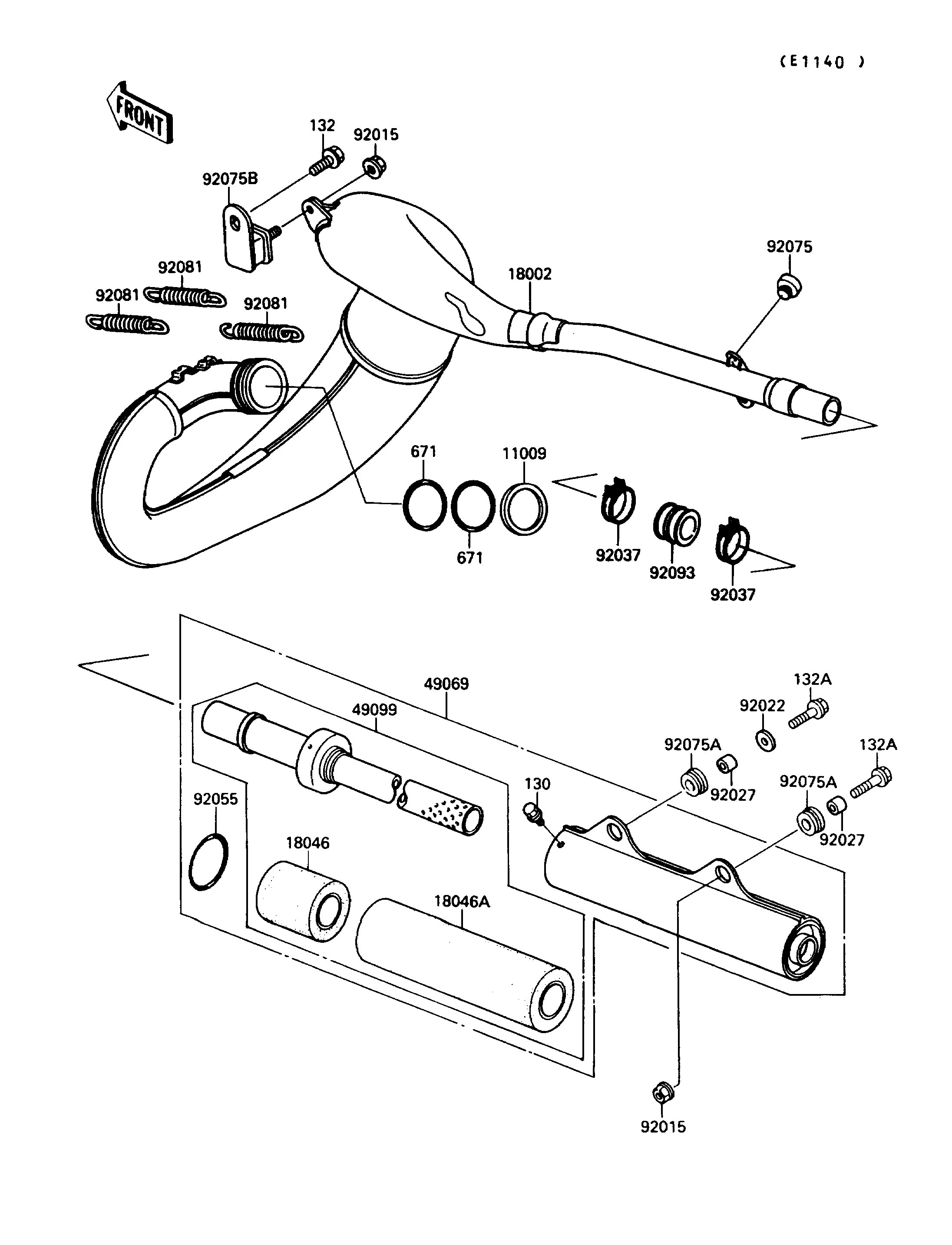

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,EXHAUST PIPE | 11009 | 11009-1253 | 1 | ||
BODY-COMP-MUFFLER | 18002 | 18002-1866 | 1 | ||
WOOL,MUFFLER BAFFLE PIPE | 18046 | 18046-1096 | 1 | ||
WOOL,MUFFLER BAFFLE PIPE | 18046A | 18046-1105 | 1 | ||
MUFFLER-ASSY | 49069 | 49069-1094 | 1 | ||
BAFFLE-PIPE MUFFLER | 49099 | 49099-1260 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1078 | 3 | ||
WASHER,6.5X22X1.6 | 92022 | 92022-237 | 1 | ||
COLLAR,6.8X10X11.5 | 92027 | 92027-1210 | 2 | ||
CLAMP | 92037 | 92037-177 | 2 | ||
RING-O,ID=57.6 | 92055 | 92055-1038 | 1 | ||
DAMPER | 92075 | 92075-1598 | 2 | ||
DAMPER,MUFFLER FITTING | 92075A | 92075-1857 | 2 | ||
DAMPER,MUFFLER | 92075B | 92075-1891 | 1 | ||
SPRING | 92081 | 92081-1526 | 3 | ||
SEAL,MUFFLER | 92093 | 92093-1014 | 1 | ||
BOLT-FLANGED | 130 | 130G0508 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132G0612 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132G0630 | 2 | ||
O RING,50MM | 671 | 671E2550 | 2 |
