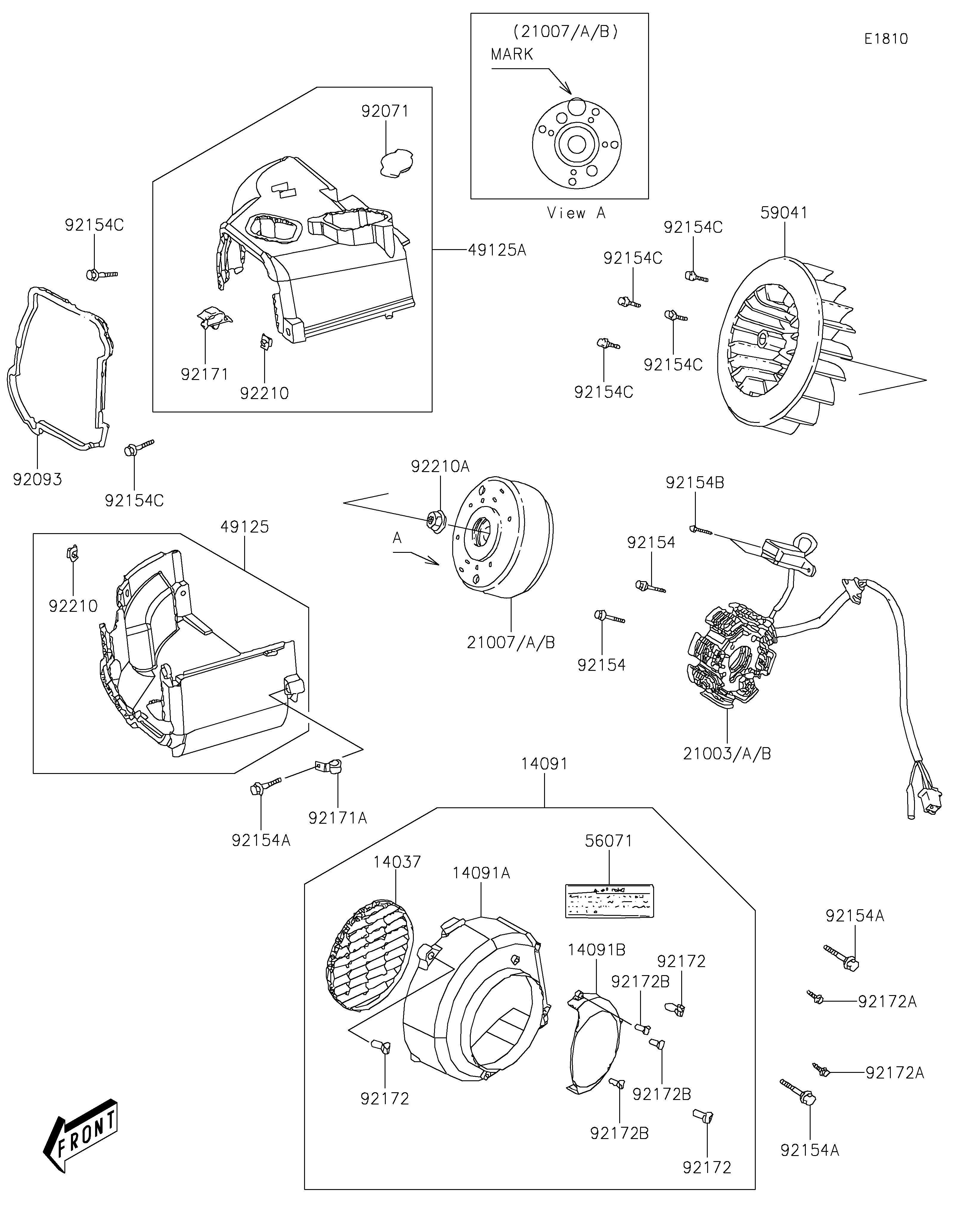

2021 KFX®90 - Generator

DOWNLOAD PDF
SELECT A NEW PART
14037
14091
14091A
14091B
21003
21003A
21003B
21007
21007A
21007B
49125
49125A
56071
59041
92071
92093
92154
92154
92154A
92154A
92154A
92154B
92154C
92154C
92154C
92154C
92154C
92154C
92171
92171A
92172
92172
92172
92172A
92172A
92172B
92172B
92172B
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREEN 14037 14037-Y002 1
COVER,FAN 14091 14091-Y003 1
COVER,FAN 14091A 14091-Y011 1
COVER 14091B 14091-Y012 1
STATOR,D402 21003 21003-Y002 1
STATOR,D406 21003A 21003-Y005 1
STATOR,D414 21003B 21003-Y006 1
ROTOR,D402 21007 21007-Y001 1
ROTOR,D406 21007A 21007-Y005 1
ROTOR,D414 21007B 21007-Y006 1
SHROUD,LWR 49125 49125-Y002 1
SHROUD,UPP 49125A 49125-Y004 1
LABEL-WARNING 56071 56071-Y002 1
FAN 59041 59041-Y001 1
GROMMET 92071 92071-Y001 1
SEAL,SHROUD 92093 92093-Y004 1
BOLT,6X20 92154 92154-Y057 2
BOLT,FLANGE,6X25 92154A 92154-Y066 3
BOLT,HEX,5X12 92154B 92154-Y111 2
BOLT,FLANGE,6X16 92154C 92154-Y134 6
CLAMP 92171 92171-Y001 1
CLAMP 92171A 92171-Y002 1
SCREW,4X12 92172 92172-Y019 3
SCREW,5X16 92172A 92172-Y021 2
SCREW,4X10 92172B 92172-Y024 3
NUT,6MM 92210 92210-Y011 2
NUT,10MM 92210A 92210-Y029 1
