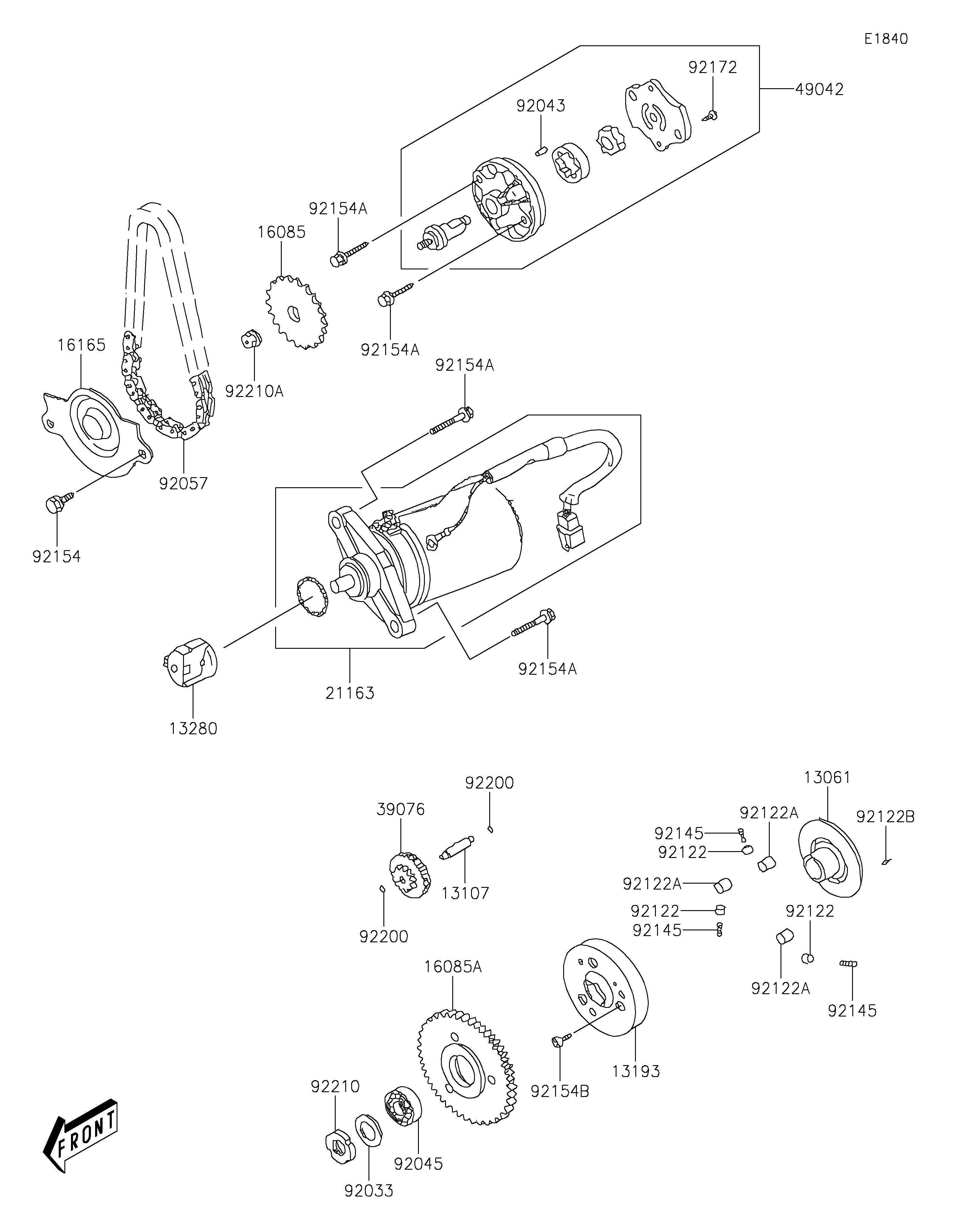

2021 KFX®90 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13061
13107
13193
13280
16085
16085A
16165
21163
39076
49042
92033
92043
92045
92057
92122
92122
92122
92122A
92122A
92122A
92122B
92145
92145
92145
92154
92154A
92154A
92154A
92154A
92154B
92172
92200
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOSS,STARTER CLUTCH 13061 13061-Y001 1
SHAFT,STARTER REDUCTION 13107 13107-Y005 1
CLUTCH-ASSY-ONEWAY 13193 13193-Y001 1
HOLDER,STARTER REDUCTION 13280 13280-Y003 1
GEAR,OIL PUMP 16085 16085-Y001 1
GEAR,STARTER 16085A 16085-Y008 1
SEPARATOR,OIL 16165 16165-Y001 1
STARTER-ELECTRIC 21163 21163-Y002 1
LIMITER,STARTER REDUCTION 39076 39076-Y001 1
PUMP-OIL 49042 49042-Y001 1
RING-SNAP 92033 92033-Y008 1
PIN,DOWEL,4X65 92043 92043-Y015 1
BEARING-BALL,6005-2NKG 92045 92045-Y004 1
CHAIN,OIL PUMP 92057 92057-Y014 1
ROLLER 92122 92122-Y004 3
ROLLER,10.2X11.5 92122A 92122-Y005 3
ROLLER,6X10 92122B 92122-Y006 1
SPRING 92145 92145-Y010 3
BOLT,FLANGE,6X12 92154 92154-Y035 2
BOLT,FLANGE,6X25 92154A 92154-Y066 4
BOLT,SOCKET,6X12 92154B 92154-Y161 3
SCREW,3X10 92172 92172-Y066 1
WASHER,24X8.5 92200 92200-Y013 2
NUT,24MM 92210 92210-Y001 1
NUT,6MM 92210A 92210-Y027 1
