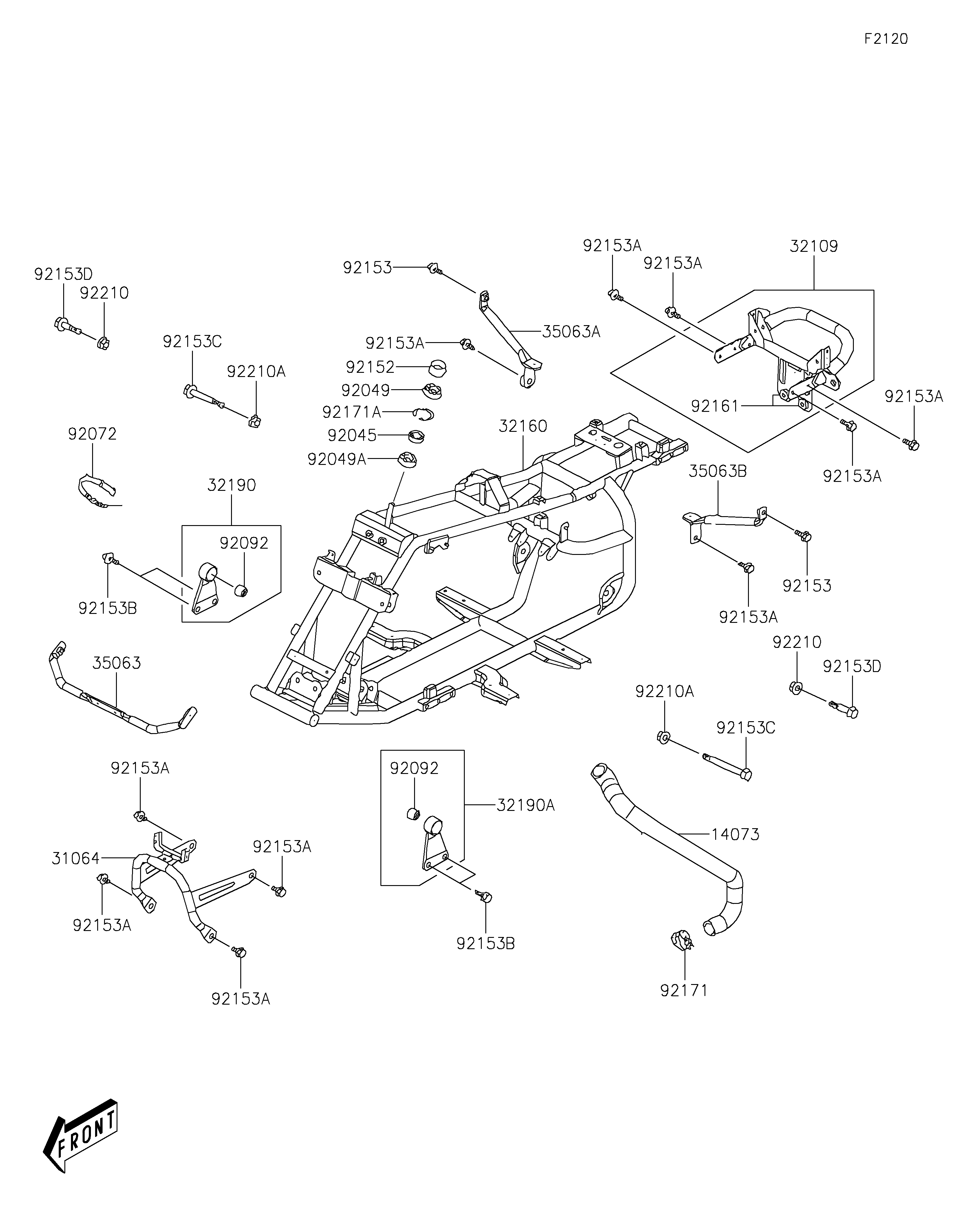

2021 KFX®90 - Frame

DOWNLOAD PDF
SELECT A NEW PART
14073
31064
32109
32160
32190
32190A
35063
35063A
35063B
92045
92049
92049A
92072
92092
92092
92152
92153
92153
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153B
92153B
92153C
92153C
92153D
92153D
92161
92171
92171A
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DUCT 14073 14073-Y001 1
PIPE-COMP,FRONT BUMPER,BLACK 31064 31064-Y002-935 1
GRIP-FRAME,RR 32109 32109-Y004 1
FRAME-COMP 32160 32160-Y002 1
BRACKET-ENGINE,RH 32190 32190-Y001 1
BRACKET-ENGINE,LH 32190A 32190-Y002 1
STAY,FR 35063 35063-Y002 1
STAY,REAR FENDER,RH 35063A 35063-Y004 1
STAY,REAR FENDER,LH 35063B 35063-Y005 1
BEARING-BALL,6002 92045 92045-Y009 1
SEAL-OIL,18X32X7 92049 92049-Y003 1
SEAL-OIL,22X35X7 92049A 92049-Y005 1
BAND 92072 92072-Y003 1
BUSHING-RUBBER 92092 92092-Y001 2
COLLAR 92152 92152-Y009 1
BOLT,FLANGE,6X12 92153 92153-Y023 2
BOLT,FLANGE,8X12 92153A 92153-Y031 10
BOLT,FLANGE,8X16 92153B 92153-Y032 4
BOLT,FLANGE,10X70 92153C 92153-Y043 2
BOLT,FLANGE,8X40 92153D 92153-Y069 2
DAMPER 92161 92161-Y006 2
CLAMP 92171 92171-Y004 1
CLAMP 92171A 92171-Y009 1
NUT,FLANGE,8MM 92210 92210-Y032 2
NUT,10MM 92210A 92210-Y034 2
