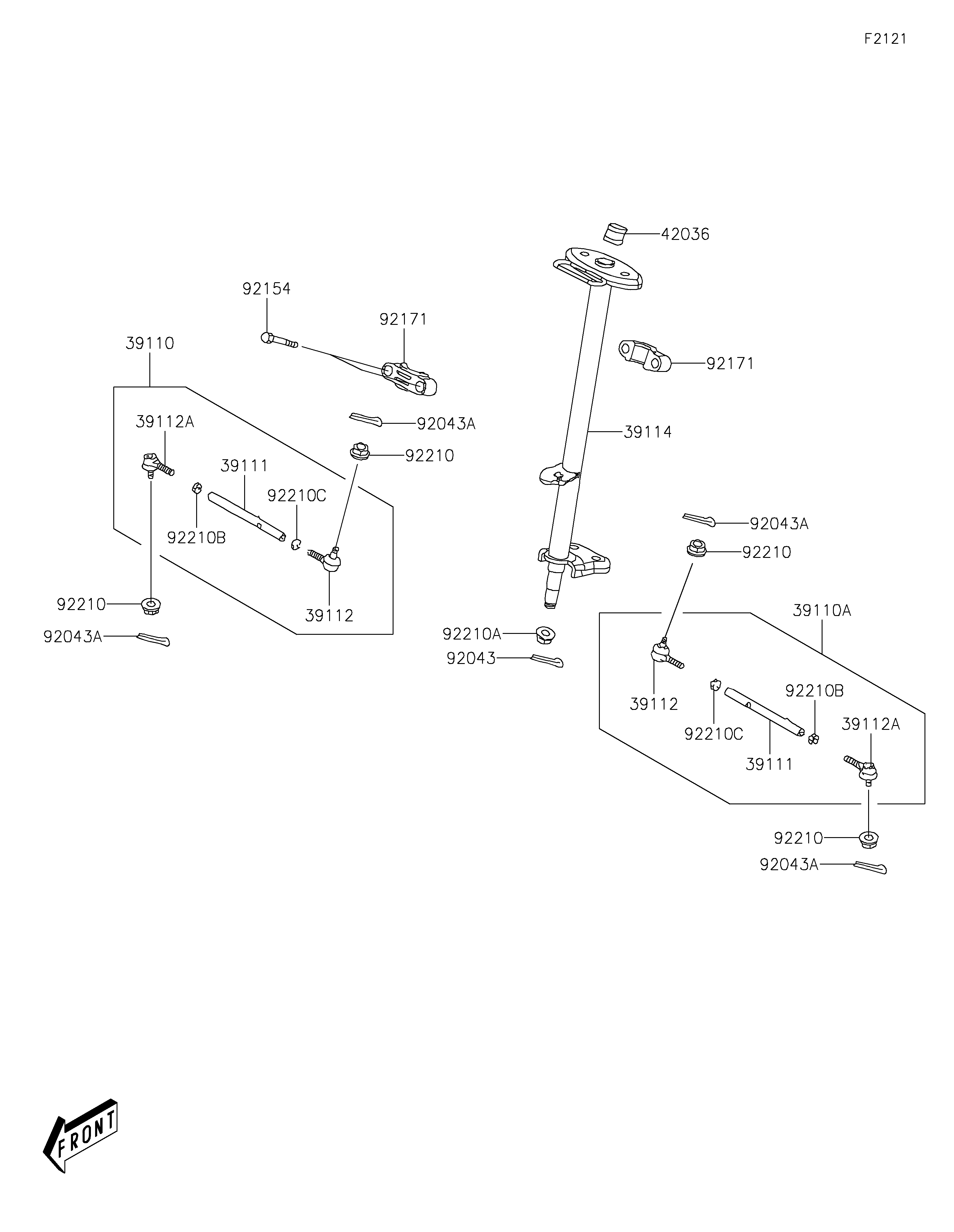

2021 KFX®90 - Steering Shaft

DOWNLOAD PDF
SELECT A NEW PART
39110
39110A
39111
39111
39112
39112
39112A
39112A
39114
42036
92043
92043A
92043A
92043A
92043A
92154
92171
92171
92210
92210
92210
92210
92210A
92210B
92210B
92210C
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD-ASSY-TIE,RH 39110 39110-Y003 1
ROD-ASSY-TIE,LH 39110A 39110-Y004 1
ROD-TIE 39111 39111-Y001 2
RODEND-TIE 39112 39112-Y003 2
RODEND-TIE 39112A 39112-Y004 2
SHAFT-COMP-STRG 39114 39114-Y001 1
SLEEVE 42036 42036-Y001 1
PIN,3X25 92043 92043-Y009 1
PIN,2.5X20 92043A 92043-Y010 4
BOLT,FLANGE,8X65 92154 92154-Y120 2
CLAMP,STEERING SHAFT 92171 92171-Y006 2
NUT,10MM 92210 92210-Y010 4
NUT,14MM 92210A 92210-Y012 1
NUT,10MM 92210B 92210-Y021 2
NUT,10MM 92210C 92210-Y022 2
