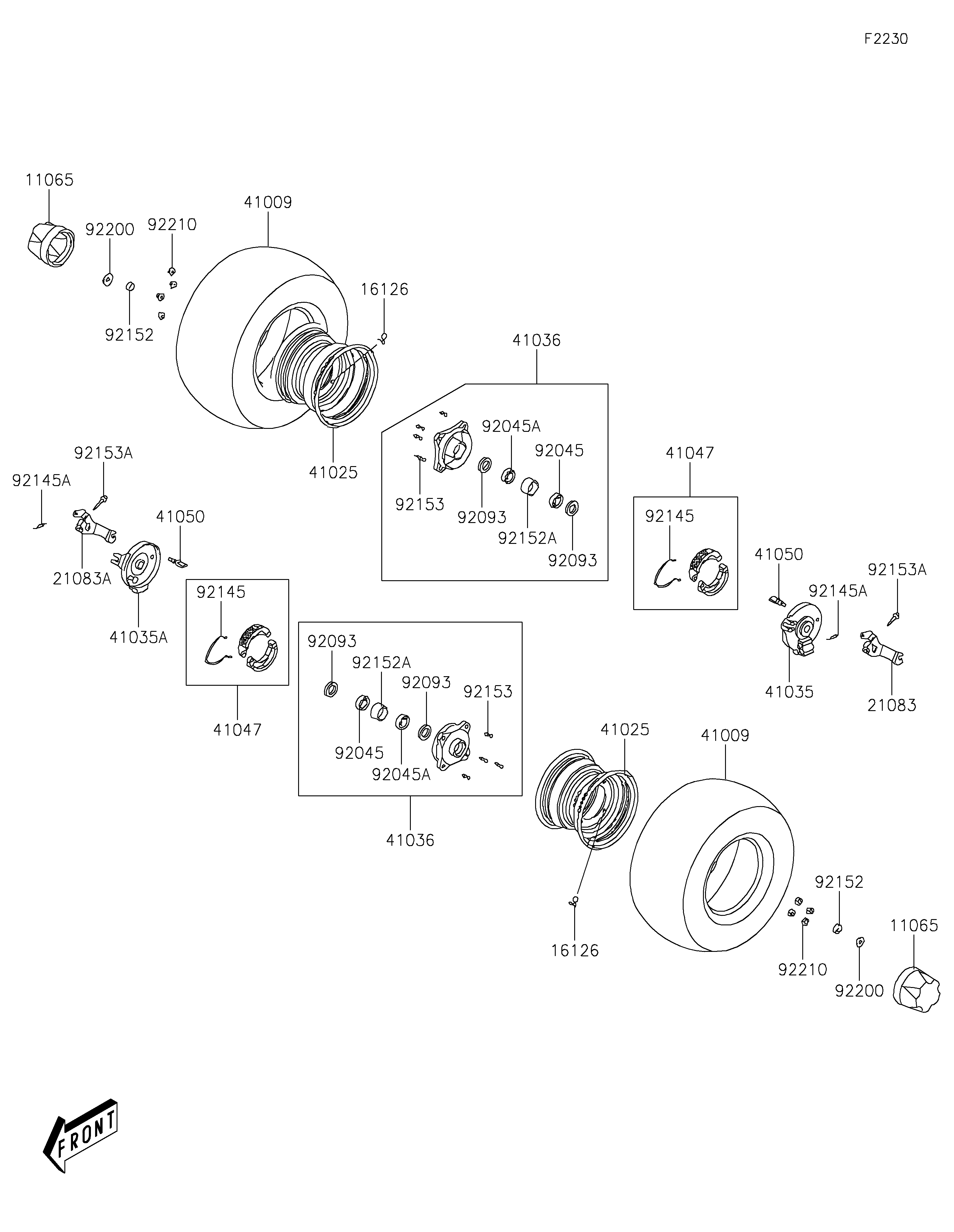

2021 KFX®90 - Front Hub

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
16126
16126
21083
21083A
41009
41009
41025
41025
41035
41035A
41036
41036
41047
41047
41050
41050
92045
92045
92045A
92045A
92093
92093
92093
92093
92145
92145
92145A
92145A
92152
92152
92152A
92152A
92153
92153
92153A
92153A
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,WHEEL 11065 11065-Y002 2
VALVE,RIM 16126 16126-Y001 2
ARM,BRAKE,RH 21083 21083-Y001 1
ARM,BRAKE,LH 21083A 21083-Y002 1
TIRE,FR 41009 41009-Y003 2
RIM,BLACK 41025 41025-Y003-935 2
PANEL-ASSY-BRAKE,FR,RH,SILVER 41035 41035-Y001-934 1
PANEL-ASSY-BRAKE,FR,LH,SILVER 41035A 41035-Y002-934 1
HUB-ASSY,FR,BLACK 41036 41036-Y002-935 2
SHOE-ASSY-BRAKE,FR 41047 41047-Y001 2
CAM-BRAKE 41050 41050-Y001 2
BEARING-BALL,6002 92045 92045-Y010 2
BEARING-BALL,6003 92045A 92045-Y011 2
SEAL,22X35X7 92093 92093-Y008 4
SPRING,BRAKE SHOE 92145 92145-Y013 2
SPRING,RETURN 92145A 92145-Y014 2
COLLAR 92152 92152-Y008 2
COLLAR 92152A 92152-Y009 2
BOLT,STUD,10X17 92153 92153-Y017 8
BOLT,FLANGE,5X24 92153A 92153-Y021 2
WASHER,12MM 92200 92200-Y011 2
NUT,10MM 92210 92210-Y010 8
