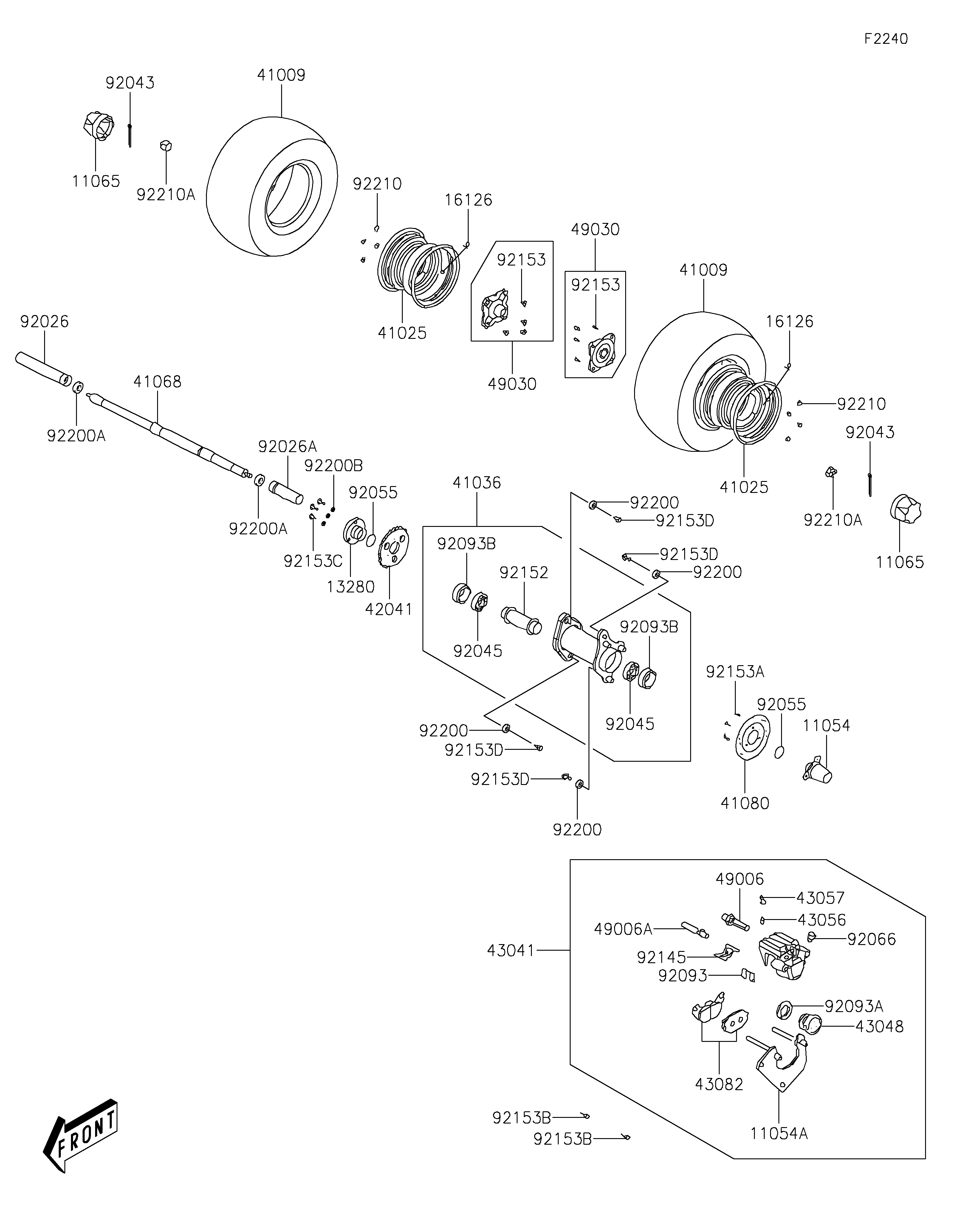

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11054
11054A
11065
11065
13280
16126
16126
41009
41009
41025
41025
41036
41068
41080
42041
43041
43048
43056
43057
43082
49006
49006A
49030
49030
92026
92026A
92043
92043
92045
92045
92055
92055
92066
92093
92093A
92093B
92093B
92145
92152
92153
92153
92153A
92153B
92153B
92153C
92153D
92153D
92153D
92153D
92200
92200
92200
92200
92200A
92200A
92200B
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,BRAKE DISK | 11054 | 11054-Y005 | 1 | ||
| BRACKET | 11054A | 11054-Y008 | 1 | ||
| CAP,WHEEL | 11065 | 11065-Y002 | 2 | ||
| HOLDER,SPROCKET | 13280 | 13280-Y004 | 1 | ||
| VALVE,RIM | 16126 | 16126-Y001 | 2 | ||
| TIRE,RR | 41009 | 41009-Y001 | 2 | ||
| RIM,BLACK | 41025 | 41025-Y001-935 | 2 | ||
| HUB-ASSY,RR,BLACK | 41036 | 41036-Y001-935 | 1 | ||
| AXLE,RR | 41068 | 41068-Y001 | 1 | ||
| DISC,RR | 41080 | 41080-Y001 | 1 | ||
| SPROCKET-HUB | 42041 | 42041-Y001 | 1 | ||
| CALIPER-ASSY,RR | 43041 | 43041-Y001 | 1 | ||
| PISTON-CALIPER | 43048 | 43048-Y001 | 1 | ||
| BREATHER-BRAKE | 43056 | 43056-Y001 | 1 | ||
| CAP-BREATHER | 43057 | 43057-Y001 | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-Y001 | 1 | ||
| BOOT | 49006 | 49006-Y001 | 1 | ||
| BOOT | 49006A | 49006-Y002 | 1 | ||
| HUB,RR | 49030 | 49030-Y001 | 2 | ||
| SPACER,REAR AXLE,RH | 92026 | 92026-Y005 | 1 | ||
| SPACER,REAR AXLE,LH | 92026A | 92026-Y006 | 1 | ||
| PIN,3X25 | 92043 | 92043-Y011 | 2 | ||
| BEARING-BALL,6006 | 92045 | 92045-Y008 | 2 | ||
| RING-O,30MM | 92055 | 92055-Y015 | 2 | ||
| PLUG | 92066 | 92066-Y001 | 1 | ||
| SEAL,DUST | 92093 | 92093-Y005 | 1 | ||
| SEAL,PISTON | 92093A | 92093-Y006 | 1 | ||
| SEAL,DUST | 92093B | 92093-Y009 | 2 | ||
| SPRING,PAD | 92145 | 92145-Y012 | 1 | ||
| COLLAR | 92152 | 92152-Y007 | 1 | ||
| BOLT | 92153 | 92153-Y005 | 8 | ||
| BOLT | 92153A | 92153-Y007 | 3 | ||
| BOLT,FLANGE,8X28 | 92153B | 92153-Y012 | 2 | ||
| BOLT,FLANGE,8X20 | 92153C | 92153-Y033 | 3 | ||
| BOLT,FLANGE,12X28 | 92153D | 92153-Y044 | 4 | ||
| WASHER,12.2X28X4 | 92200 | 92200-Y012 | 4 | ||
| WASHER,14MM | 92200A | 92200-Y014 | 2 | ||
| WASHER,8MM | 92200B | 92200-Y048 | 3 | ||
| NUT,10MM | 92210 | 92210-Y010 | 8 | ||
| NUT,14MM | 92210A | 92210-Y025 | 2 |
