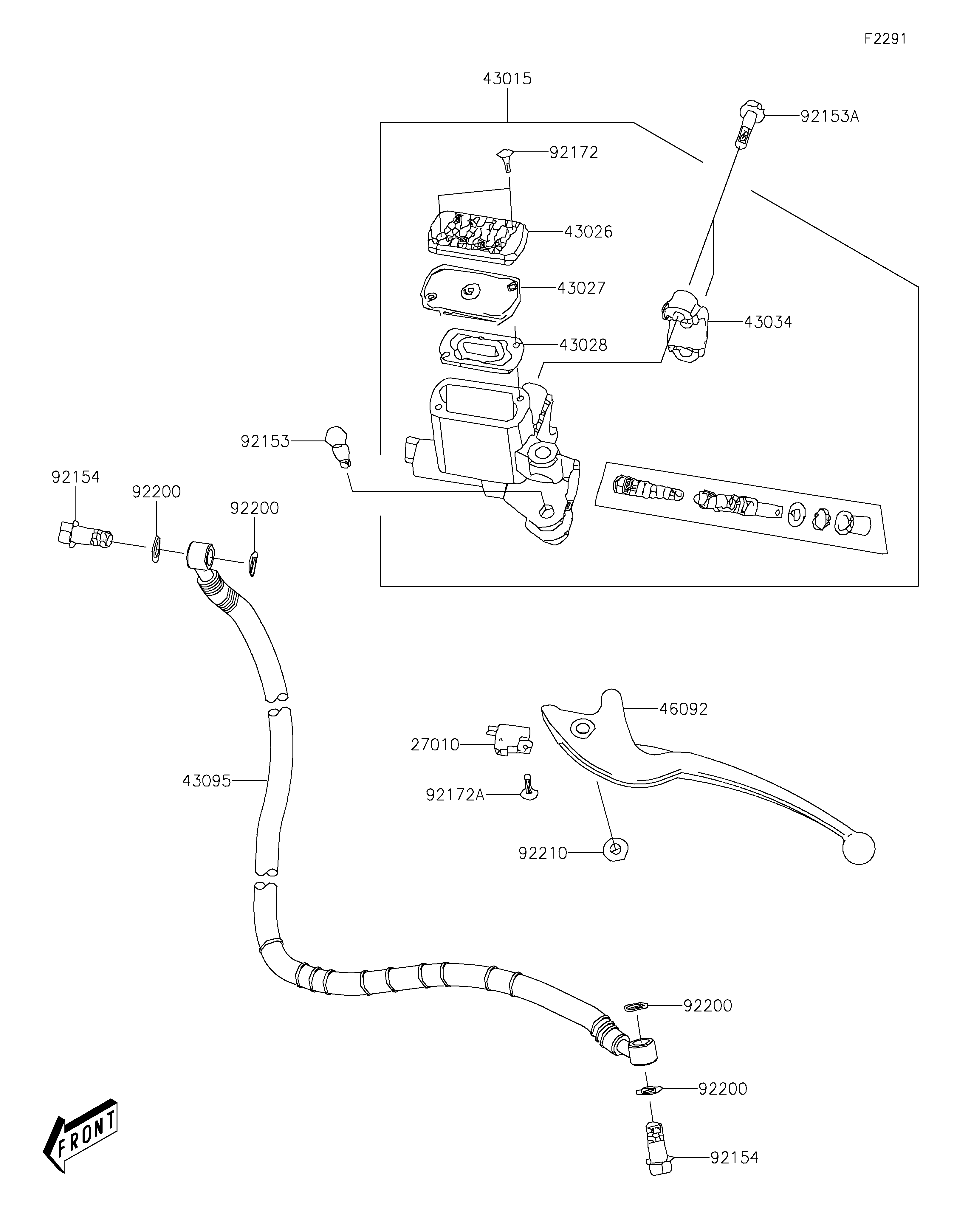

Parts Diagrams |
27010
43015
43026
43027
43028
43034
43095
46092
92153
92153A
92154
92154
92172
92172A
92200
92200
92200
92200
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SWITCH,STOP | 27010 | 27010-Y004 | 1 | ||
CYLINDER-ASSY-MASTER | 43015 | 43015-Y001 | 1 | ||
CAP-BRAKE | 43026 | 43026-Y001 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-Y001 | 1 | ||
DIAPHRAGM | 43028 | 43028-Y001 | 1 | ||
HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-Y002 | 1 | ||
HOSE-BRAKE | 43095 | 43095-Y001 | 1 | ||
LEVER-GRIP,LH | 46092 | 46092-Y003 | 1 | ||
BOLT | 92153 | 92153-Y008 | 1 | ||
BOLT,SOCKET,6X23 | 92153A | 92153-Y010 | 2 | ||
BOLT,10X22 | 92154 | 92154-Y114 | 2 | ||
SCREW,4X12 | 92172 | 92172-Y011 | 2 | ||
SCREW,4X12 | 92172A | 92172-Y014 | 1 | ||
WASHER | 92200 | 92200-Y015 | 4 | ||
NUT,6MM | 92210 | 92210-Y026 | 1 |
SWITCH,STOP | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-ASSY-MASTER | |
REF # | 43015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BRAKE | |
REF # | 43026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-DIAPHRAGM | |
REF # | 43027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 43028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-BRAKE,MASTER CYLINDER | |
REF # | 43034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE | |
REF # | 43095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-GRIP,LH | |
REF # | 46092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X23 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,10X22 | |
REF # | 92154 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,4X12 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,4X12 | |
REF # | 92172A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
