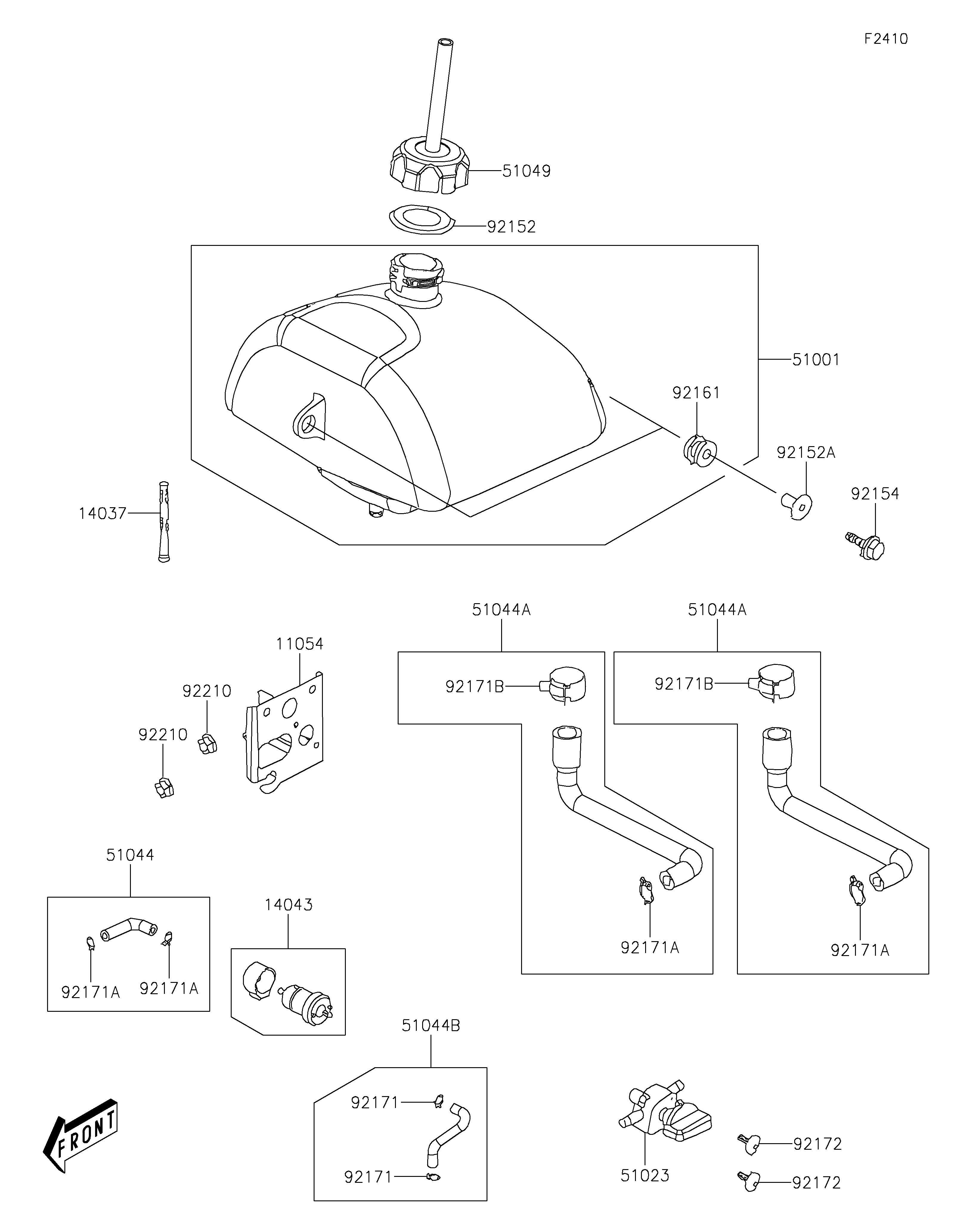

2021 KFX®90 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11054
14037
14043
51001
51023
51044
51044A
51044A
51044B
51049
92152
92152A
92154
92161
92171
92171
92171A
92171A
92171A
92171A
92171B
92171B
92172
92172
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11054 11054-Y003 1
SCREEN 14037 14037-Y001 1
FILTER,FUEL 14043 14043-Y002 1
TANK-COMP-FUEL 51001 51001-Y005 1
TAP-ASSY 51023 51023-Y006 1
TUBE-ASSY,FUEL 51044 51044-Y005 1
TUBE-ASSY,FUEL TANK 51044A 51044-Y007 2
TUBE-ASSY,FUEL 51044B 51044-Y008 1
CAP-TANK 51049 51049-Y002 1
COLLAR 92152 92152-Y001 1
COLLAR 92152A 92152-Y013 2
BOLT,6X20 92154 92154-Y057 2
DAMPER 92161 92161-Y001 2
CLAMP 92171 92171-Y010 2
CLAMP 92171A 92171-Y011 4
CLAMP 92171B 92171-Y013 4
SCREW,5X16 92172 92172-Y067 2
NUT,6MM 92210 92210-Y027 2
