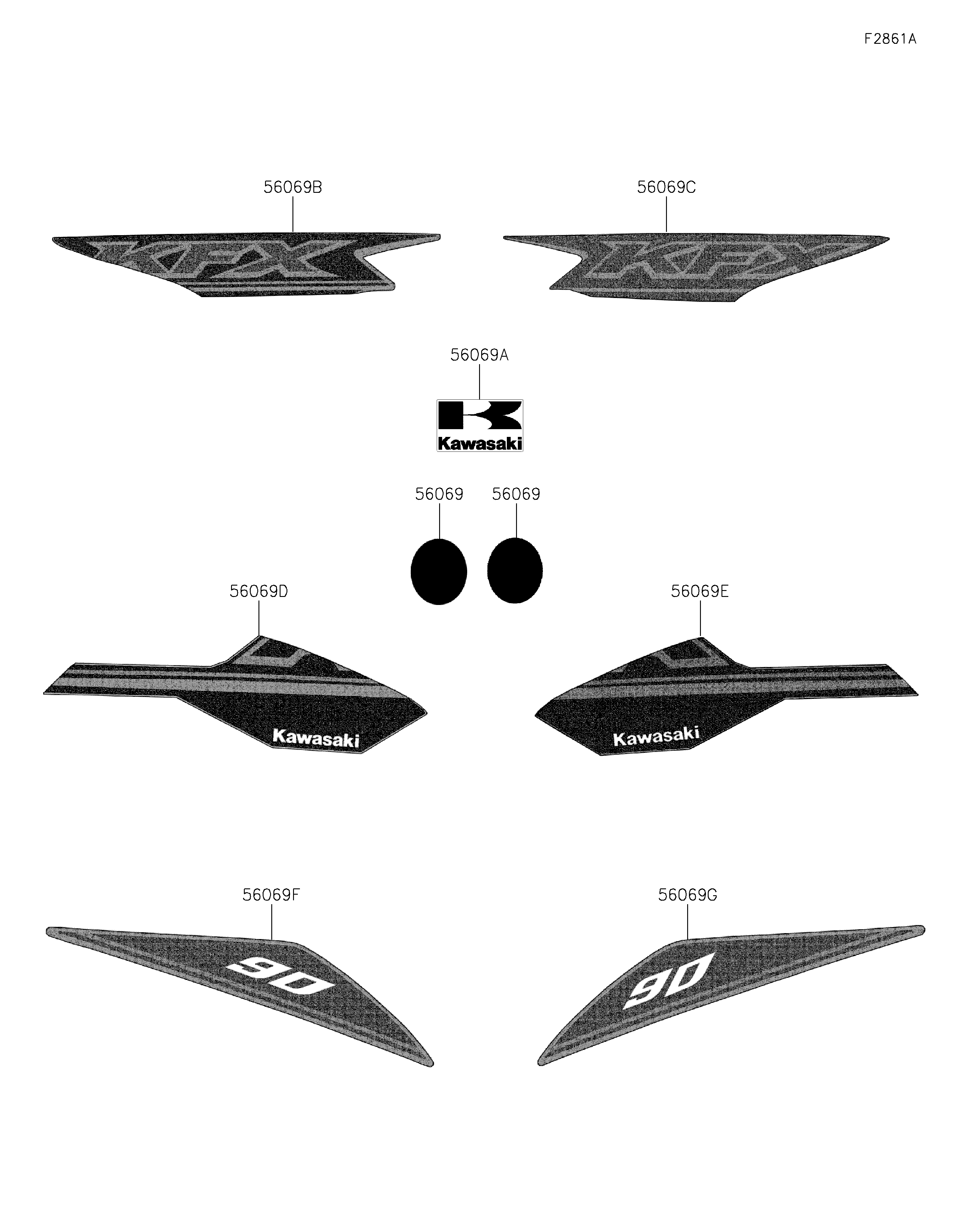

56069
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PATTERN,HEAD LIGHT 56069 56069-Y103 2
PATTERN,FLYING K 56069A 56069-Y219 1
PATTERN,FRONT FENDER,RH 56069B 56069-Y300 1
PATTERN,FRONT FENDER,LH 56069C 56069-Y302 1
PATTERN,FRONT FENDER,RR,RH 56069D 56069-Y304 1
PATTERN,FRONT FENDER,RR,LH 56069E 56069-Y306 1
PATTERN,REAR FENDER,RH 56069F 56069-Y312 1
PATTERN,REAR FENDER,LH 56069G 56069-Y314 1
