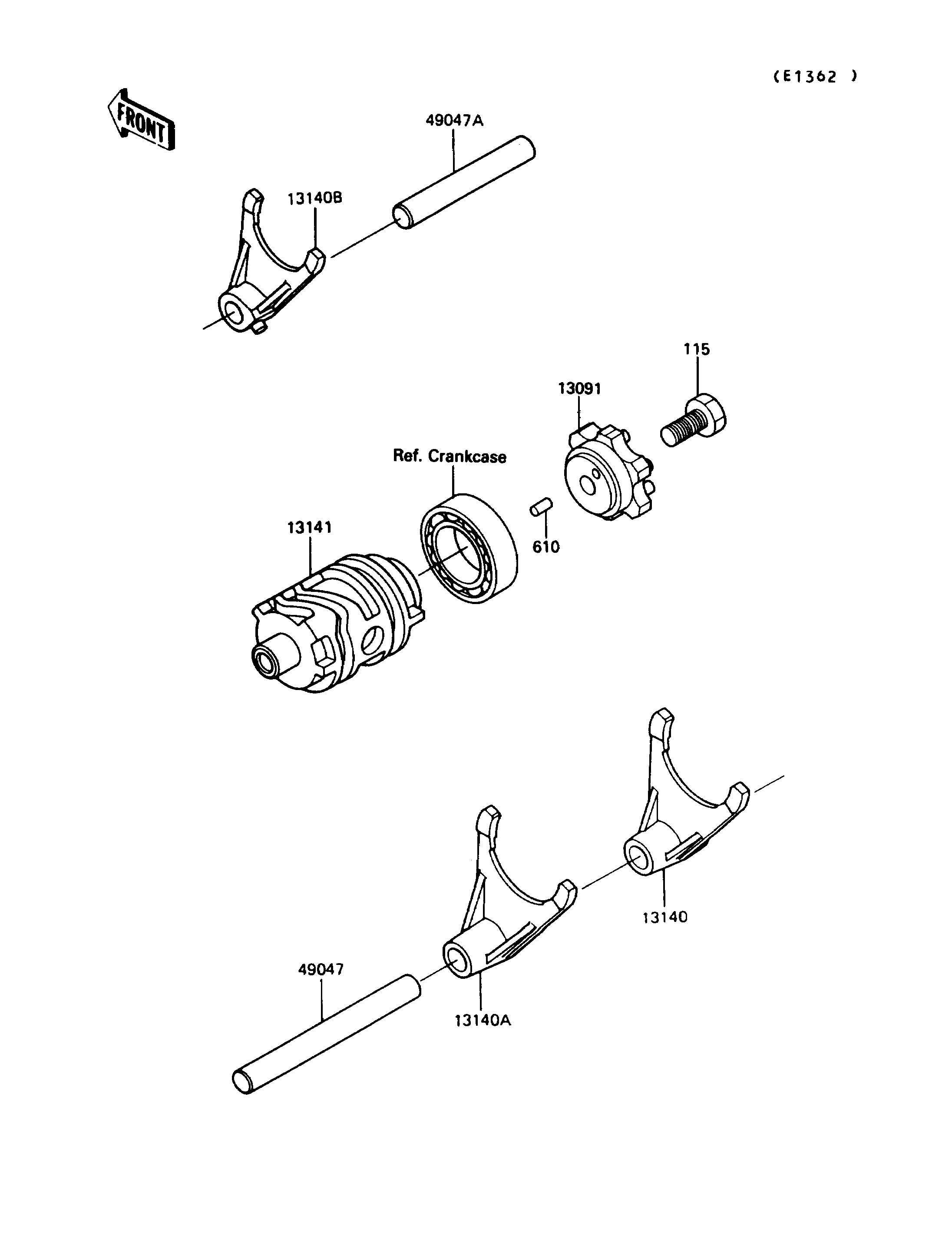

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CHANGE DRUM 13091 13091-1555 1
FORK-SHIFT,LOW 13140 13140-1071 1
FORK-SHIFT,2ND&3RD 13140A 13140-1072 1
FORK-SHIFT,4TH&TOP 13140B 13140-1073 1
DRUM-CHANGE 13141 13141-1069 1
ROD-SHIFT,10X90 49047 49047-1009 1
ROD-SHIFT,10X65 49047A 49047-1011 1
BOLT-SMALL-UPSET,8X18 115 115G0818 1
ROLLER,4X8 610 610A0408 1
