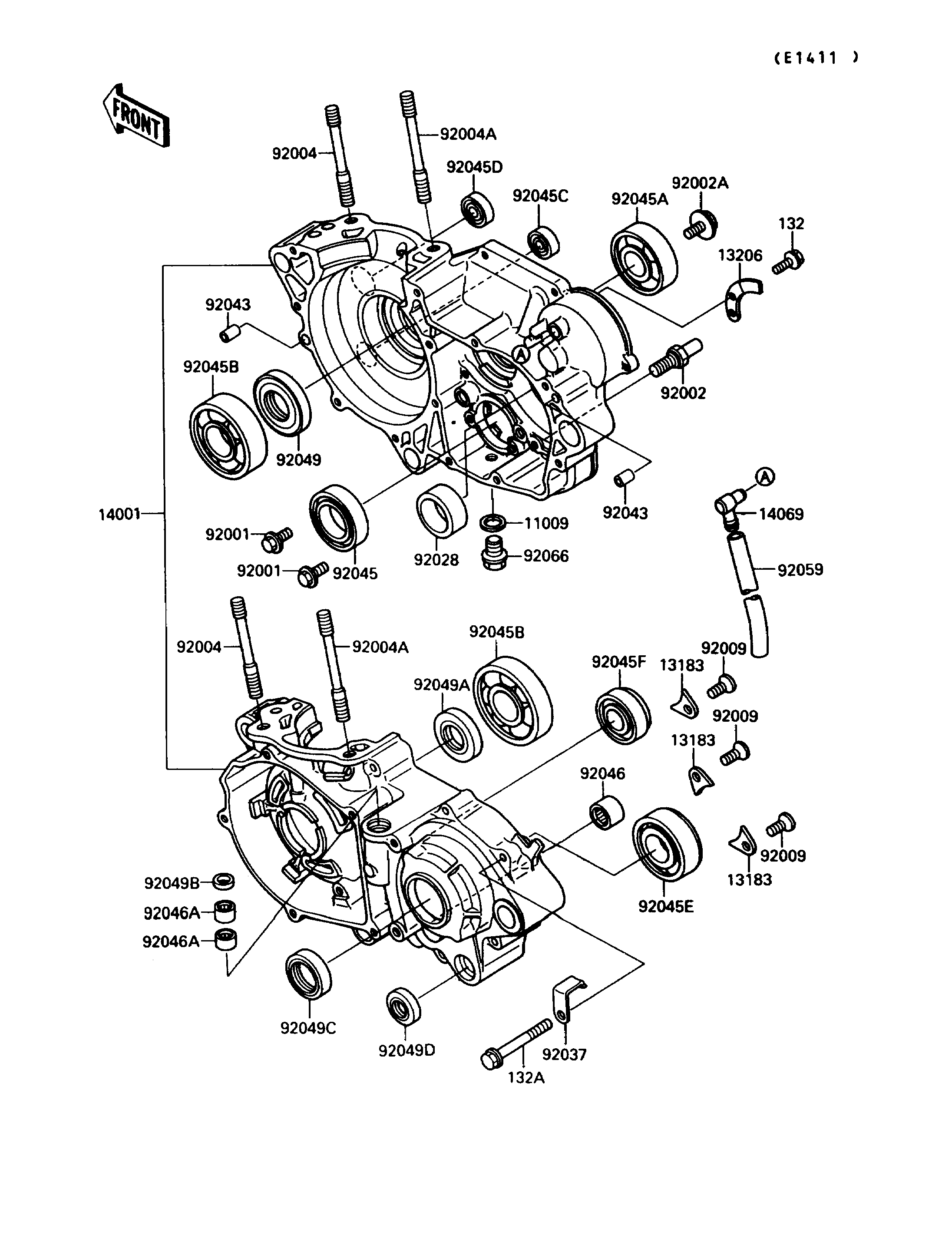

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X16X1,DRAIN PLUG 11009 92065-058 1
PLATE 13183 13183-1182 3
GUIDE-KICK 13206 13206-1001 1
SET-CRANKCASE 14001 14001-5260 1
BREATHER 14069 14069-003 1
BOLT,W/WASHER,6X14 92001 92001-1829 2
BOLT,8X15 92002 92002-1601 1
BOLT,6X16 92002A 92002-1659 2
STUD,10X53 92004 92004-1165 2
STUD,10X55 92004A 92004-1176 2
SCREW,6X10 92009 92009-1563 3
BUSHING,26X35X14 92028 92028-131 1
CLAMP,HARNESS 92037 92037-1318 1
PIN,DOWEL,6.3X8X14 92043 92042-007 2
BEARING-BALL,#6905 92045 92045-036 1
BEARING-BALL,63/22T2C3 92045A 92045-1134 1
BEARING-BALL,TMB3/28JR2C3 92045B 92045-1183 2
BEARING-BALL 92045C 92045-1211 1
BEARING-BALL 92045D 92045-1212 1
BEARING-BALL,TM-SX05A46 92045E 92045-1214 1
BEARING-BALL 92045F 92045-1233 1
BEARING-NEEDLE,7E-HK1412 92046 92046-037 1
BEARING-NEEDLE,HK1210 92046A 92046-1010 2
SEAL-OIL,TCJ25457 92049 92049-1051 1
SEAL-OIL,TCJ20407 92049A 92049-1052 1
SEAL-OIL 92049B 92049-1262 1
SEAL-OIL,TB3040 92049C 92050-033 1
SEAL-OIL,TB13225.5 92049D 92051-005 1
TUBE,6X9X280 92059 92059-1074 1
PLUG,DRAIN 92066 92066-1241 1
BOLT-FLANGED-SMALL 132 132G0616 1
BOLT-FLANGED-SMALL 132A 132G0645 12
