Parts Diagrams |

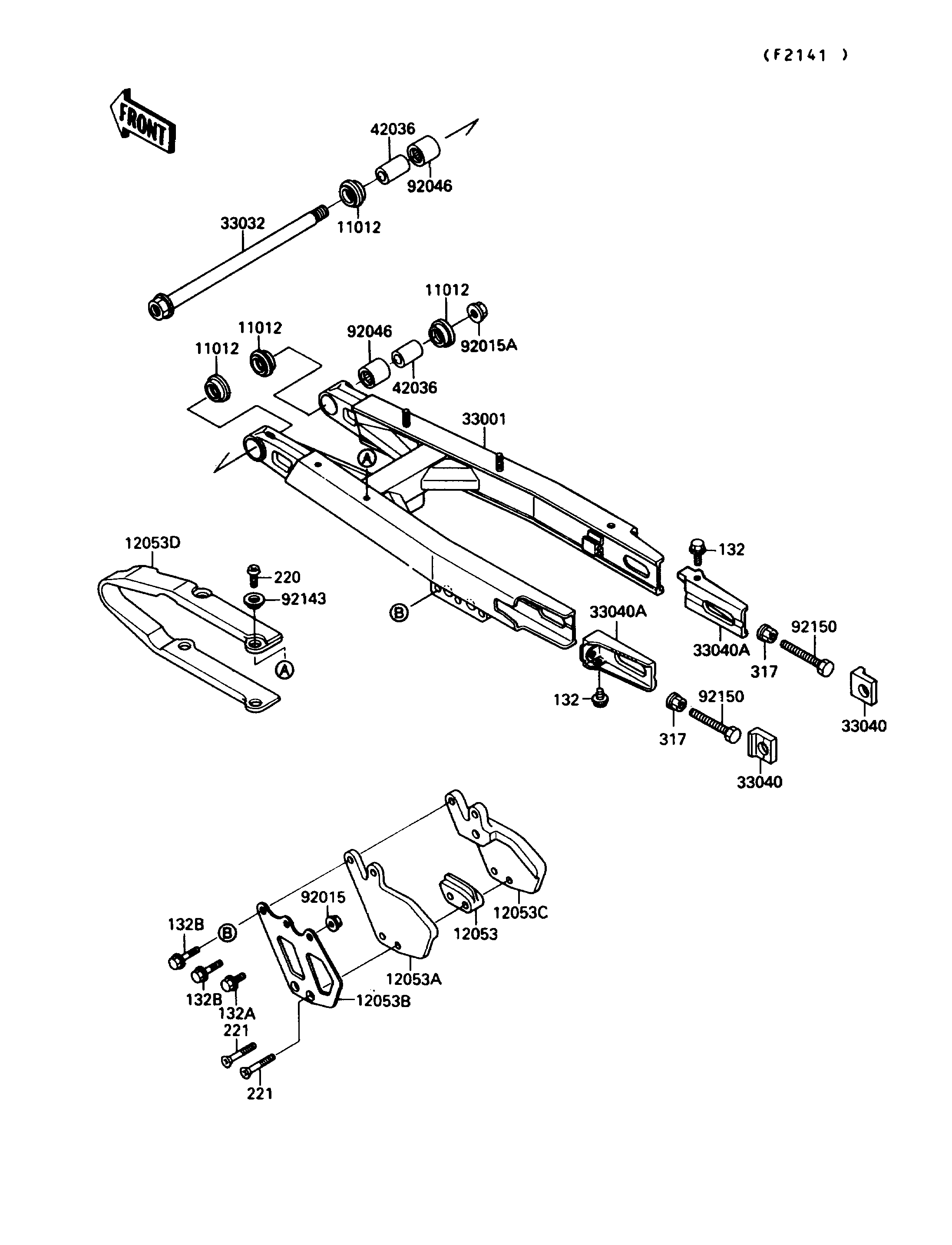

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,SWING ARM | 11012 | 11012-1259 | 4 | ||
GUIDE-CHAIN,RR,INSIDE | 12053 | 12053-1105 | 1 | ||
GUIDE-CHAIN,RR,INSIDE | 12053A | 12053-1234 | 1 | ||
GUIDE-CHAIN,RR,OUTSIDE | 12053B | 12053-1235 | 1 | ||
GUIDE-CHAIN,RR,OUTSIDE | 12053C | 12053-1236 | 1 | ||
GUIDE-CHAIN,FR | 12053D | 12053-1240 | 1 | ||
ARM-COMP-SWING,SILVER NO.25 | 33001 | 33001-1324-CE | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1137 | 1 | ||
ADJUSTER-CHAIN | 33040 | 33040-1085 | 2 | ||
ADJUSTER-CHAIN | 33040A | 33040-1099 | 2 | ||
SLEEVE,SWING ARM | 42036 | 42036-1064 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1078 | 1 | ||
NUT,14MM | 92015A | 92015-1407 | 1 | ||
BEARING-NEEDLE,TA2030Z | 92046 | 92046-1128 | 2 | ||
COLLAR | 92143 | 92143-1156 | 4 | ||
BOLT,8X55 | 92150 | 92150-1068 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132G0612 | 2 | ||
BOLT-FLANGED-SMALL | 132A | 132G0616 | 1 | ||
BOLT-FLANGED-SMALL | 132B | 132G0635 | 2 | ||
SCREW-PAN-CROS,6X8 | 220 | 220B0608 | 4 | ||
SCREW-CSK-CROS,6X45 | 221 | 221B0645 | 2 | ||
NUT-HEX-SMALL,8MM | 317 | 317G0800 | 2 |
CAP,SWING ARM | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,INSIDE | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,INSIDE | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,OUTSIDE | |
REF # | 12053B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,OUTSIDE | |
REF # | 12053C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR | |
REF # | 12053D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING,SILVER NO.25 | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN | |
REF # | 33040 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN | |
REF # | 33040A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,14MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,TA2030Z | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,8X55 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X8 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X45 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX-SMALL,8MM | |
REF # | 317 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
