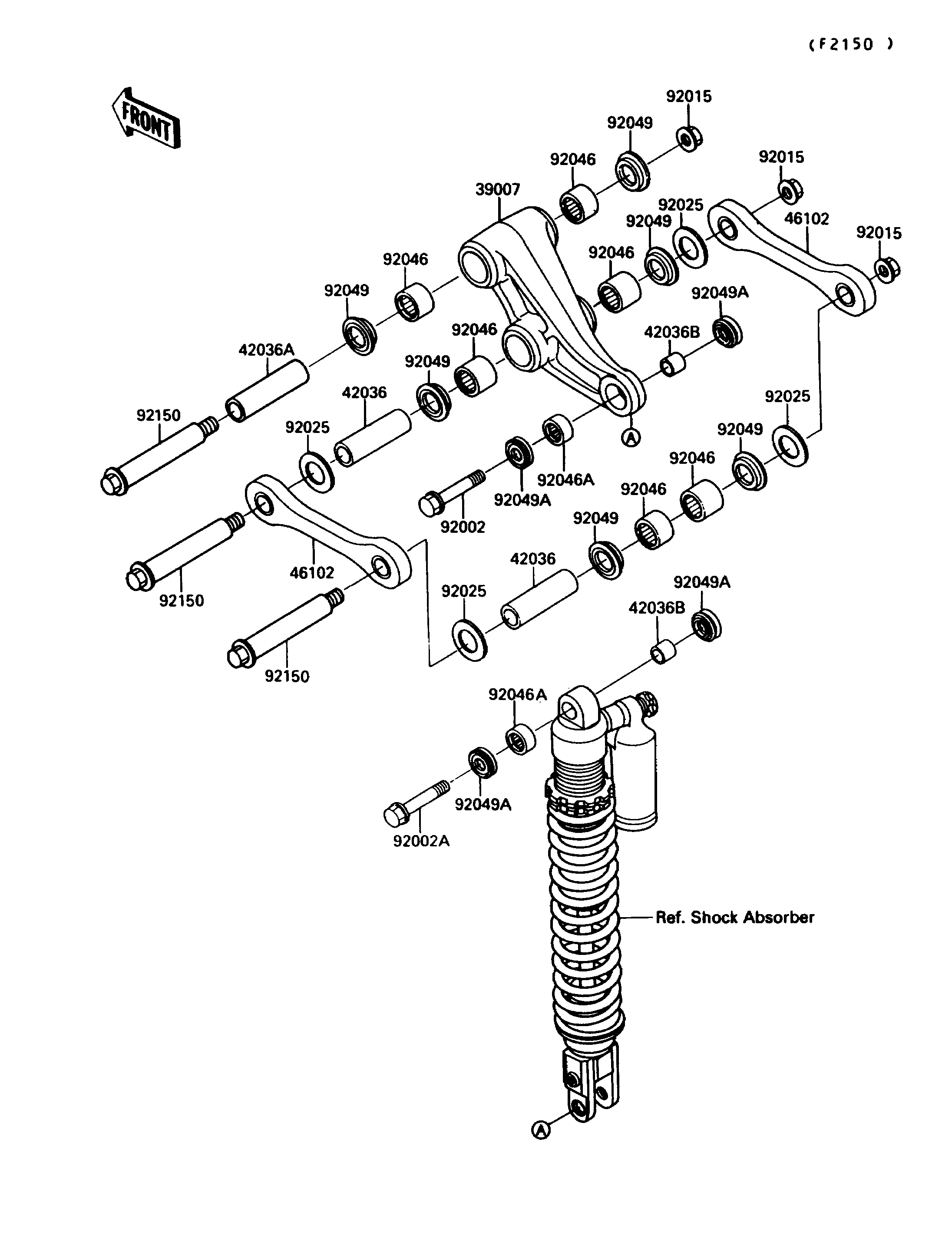

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1170 1
SLEEVE,15X22X57 42036 42036-1245 2
SLEEVE,15X22X63 42036A 42036-1246 1
SLEEVE,10X16X19 42036B 42036-1248 2
ROD,SUSPENSION 46102 46102-1253 2
BOLT,10X40 92002 92002-1675 1
BOLT,FLANGED,10X53 92002A 92002-1936 1
NUT,FLANGED,12MM 92015 92015-1433 3
SHIM,15.3X27.5X0.6 92025 92025-1135 4
BEARING-NEEDLE,F-2220 92046 92046-1162 6
BEARING-NEEDLE,16BM2212 92046A 92046-1192 2
SEAL-OIL,MHA22 28 5.7F 92049 92049-1254 6
SEAL-OIL 92049A 92049-1330 4
BOLT,ARM,12MM 92150 92150-1195 3
