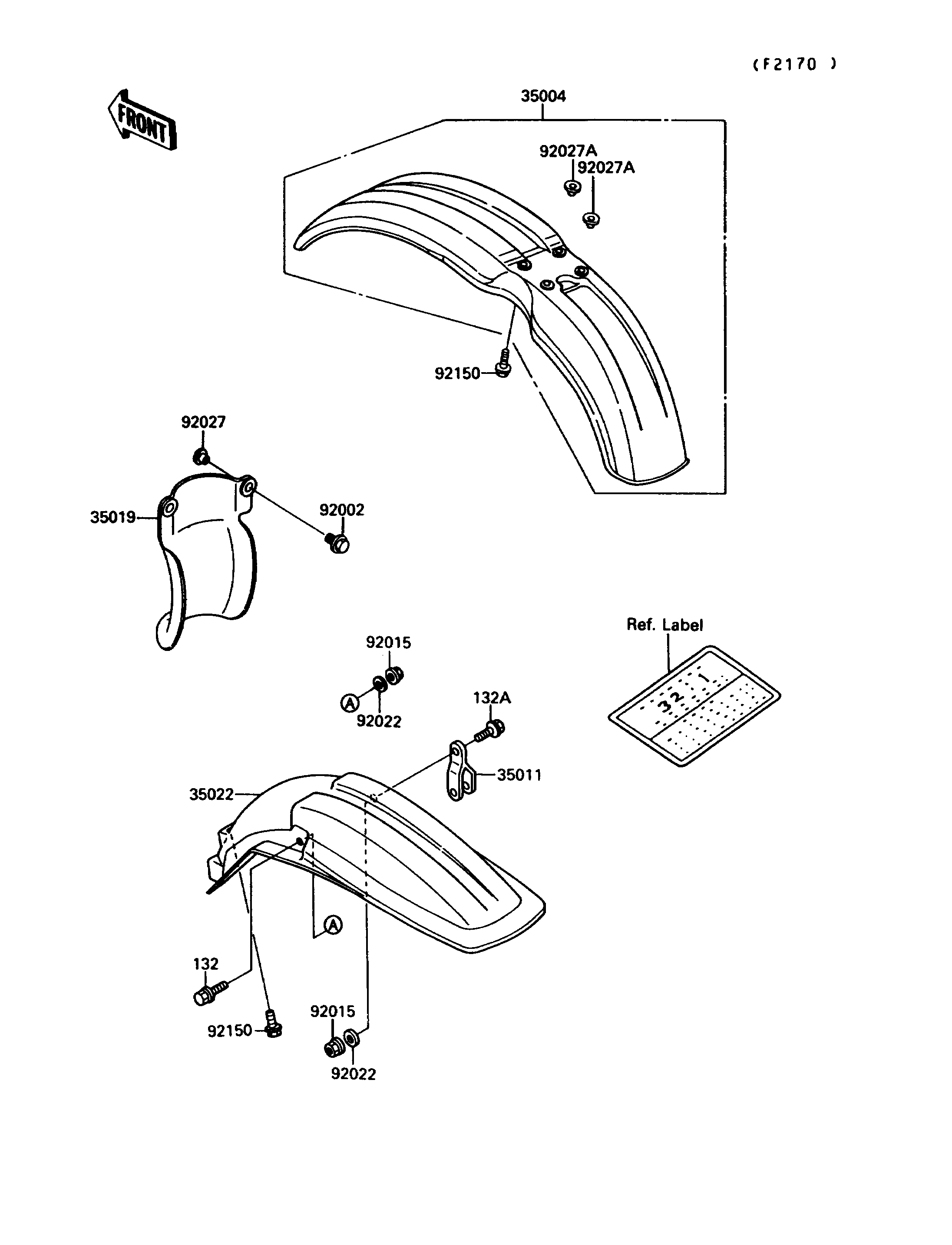

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 35004 35004-1233-6W 1
STAY,MUFFLER 35011 35011-1385 1
FLAP,AIR FILTER 35019 35019-1159 1
FENDER-COMP-REAR,L.GREEN 35022 35022-1241-6W 1
BOLT,FLANGED,6X16 92002 92002-1461 2
NUT,FLANGED,6MM 92015 92015-1078 2
WASHER,6.5X20X1.6 92022 92022-125 2
COLLAR 92027 92027-1794 2
COLLAR 92027A 92027-1936 4
BOLT,FLANGED,6X20 92150 92150-1131 6
BOLT-FLANGED-SMALL 132 132G0640 1
BOLT-FLANGED-SMALL 132A 132G0645 1
