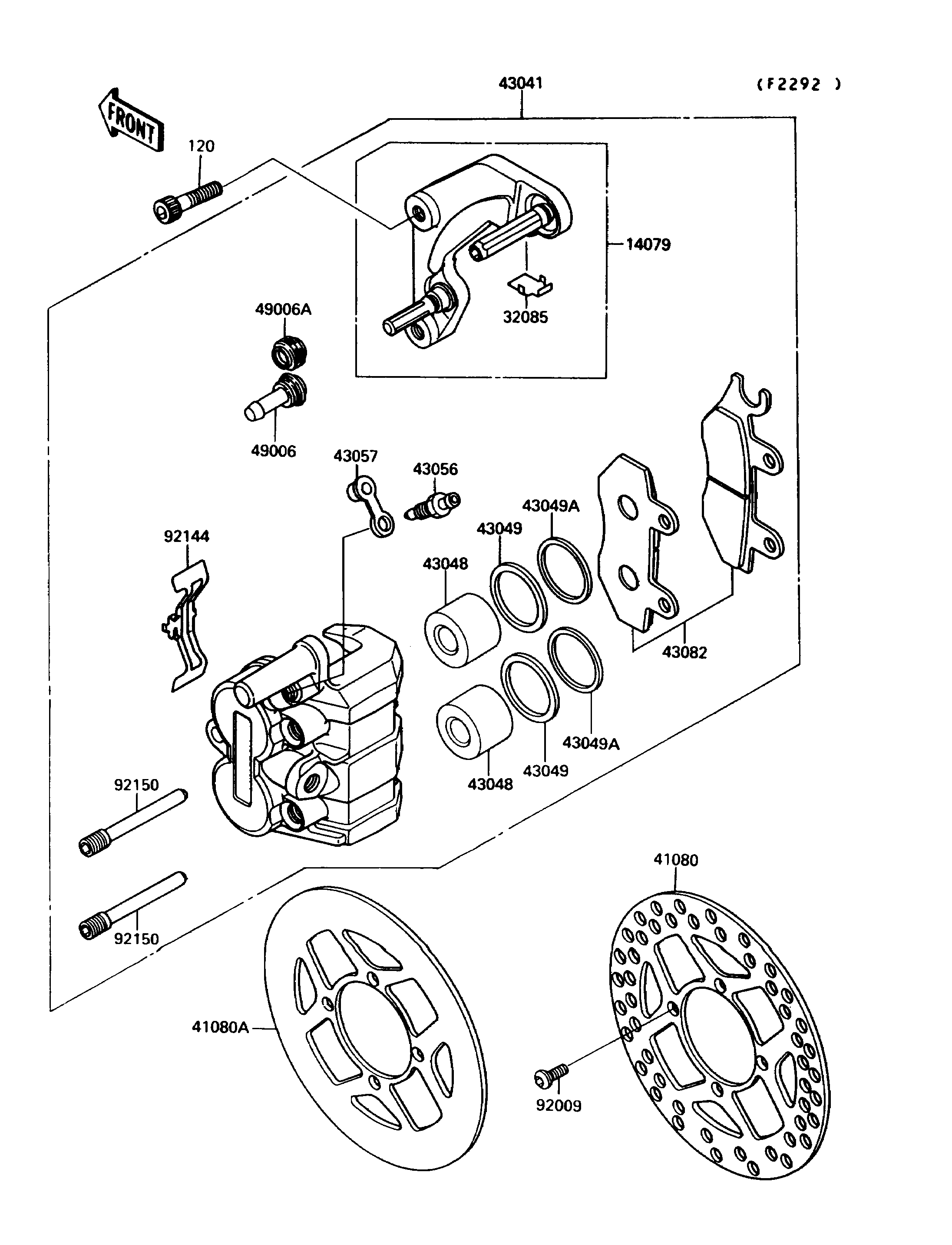

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-ASSY,FRONT CALIPER 14079 14079-1071 1
STOPPER,PAD 32085 32085-1314 1
DISC,FR 41080 41080-1229 1
DISC,FR 41080A 41080-1244 1 (OPTION)
CALIPER-ASSY,FR,LH 43041 43041-1294 1
PISTON-CALIPER 43048 43048-1057 2
PACKING,PISTON SEAL 43049 43049-1060 2
PACKING,PISTON SEAL 43049A 43049-1061 2
BREATHER-BRAKE 43056 43056-1052 1
CAP-BREATHER 43057 43057-1001 1
PAD-ASSY-BRAKE 43082 43082-1089 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
SCREW,6X14 92009 92009-1546 4
SPRING,PAD 92144 92144-1319 1
BOLT 92150 92150-1144 2
BOLT-SOCKET,8X35 120 120P0835 2
