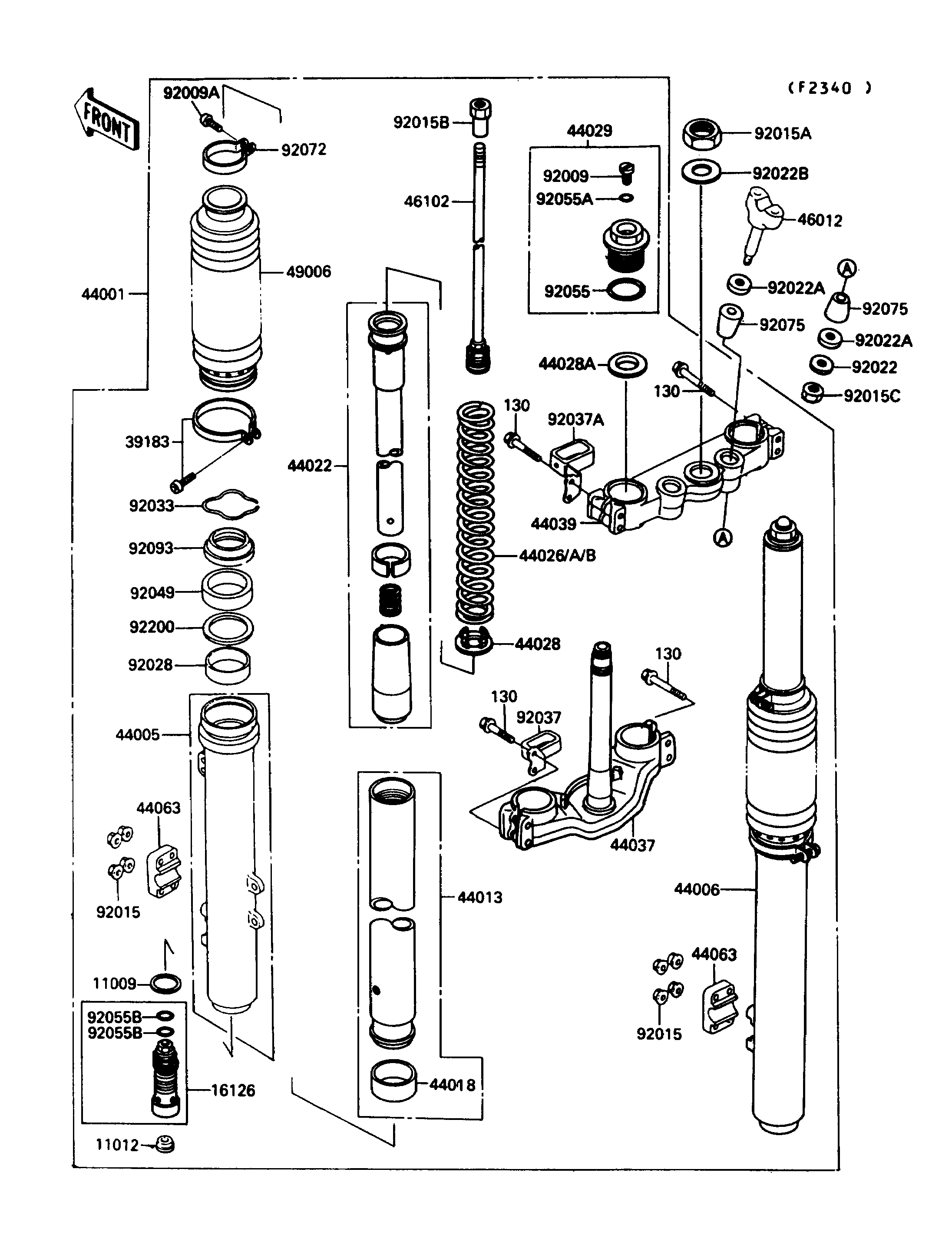

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET | 11009 | 11009-1791 | 2 | ||
CAP,FORK CYLINDER | 11012 | 11012-1381 | 2 | ||
VALVE | 16126 | 16126-1221 | 2 | ||
BAND-ASSY,BOOT | 39183 | 39183-1056 | 2 | ||
FORK-FRONT | 44001 | 44001-1729 | 1 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-1289 | 1 | ||
PIPE-RIGHT FORK OUTER | 44006 | 44006-1286 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1290 | 2 | ||
PISTON-FORK,INNER PIPE | 44018 | 44018-1055 | 2 | ||
CYLINDER-FORK | 44022 | 44022-1237 | 2 | ||
SPRING-FRONT FORK,K=0.365 | 44026 | 44026-1422 | 2 | (OPTION) | |
SPRING-FRONT FORK,K=0.38 | 44026A | 44026-1423 | 2 | ||
SPRING-FRONT FORK,K=0.39 | 44026B | 44026-1426 | 2 | (OPTION) | |
GUIDE-FORK SPRING | 44028 | 44028-1066 | 2 | ||
GUIDE-FORK SPRING | 44028A | 44028-1067 | 2 | ||
SEAT-FORK SPRING | 44029 | 44029-1138 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1257 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1192 | 1 | ||
HOLDER-FRONT AXLE | 44063 | 44063-1056 | 2 | ||
HOLDER-HANDLE,LWR | 46012 | 46012-1192 | 2 | ||
ROD,FORK | 46102 | 46102-1271 | 2 | ||
BOOT,FORK | 49006 | 49006-1256 | 2 | ||
SCREW | 92009 | 92009-1568 | 2 | ||
SCREW,3.5X10 | 92009A | 92009-1573 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1078 | 8 | ||
NUT,STEERING STEM,22MM | 92015A | 92015-1653 | 1 | ||
NUT | 92015B | 92015-1776 | 2 | ||
NUT,LOCK,10MM | 92015C | 92019-021 | 2 | ||
WASHER,10.2X28X2 | 92022 | 92022-1088 | 2 | ||
WASHER | 92022A | 92022-1737 | 4 | ||
WASHER,STEERING STEM | 92022B | 92022-1873 | 1 | ||
BUSHING | 92028 | 92028-1570 | 2 | ||
RING-SNAP | 92033 | 92033-1264 | 2 | ||
CLAMP | 92037 | 92037-1627 | 1 | ||
CLAMP | 92037A | 92037-1628 | 1 | ||
SEAL-OIL | 92049 | 92049-1341 | 2 | ||
RING-O,TUBE ASSY | 92055 | 92055-1140 | 2 | ||
RING-O | 92055A | 92055-1441 | 2 | ||
RING-O | 92055B | 92055-1462 | 4 | ||
BAND | 92072 | 92072-1247 | 2 | ||
DAMPER | 92075 | 92075-1776 | 4 | ||
SEAL | 92093 | 92093-1281 | 2 | ||
WASHER | 92200 | 92200-1006 | 2 | ||
BOLT-FLANGED,8X40 | 130 | 130G0840 | 8 |
