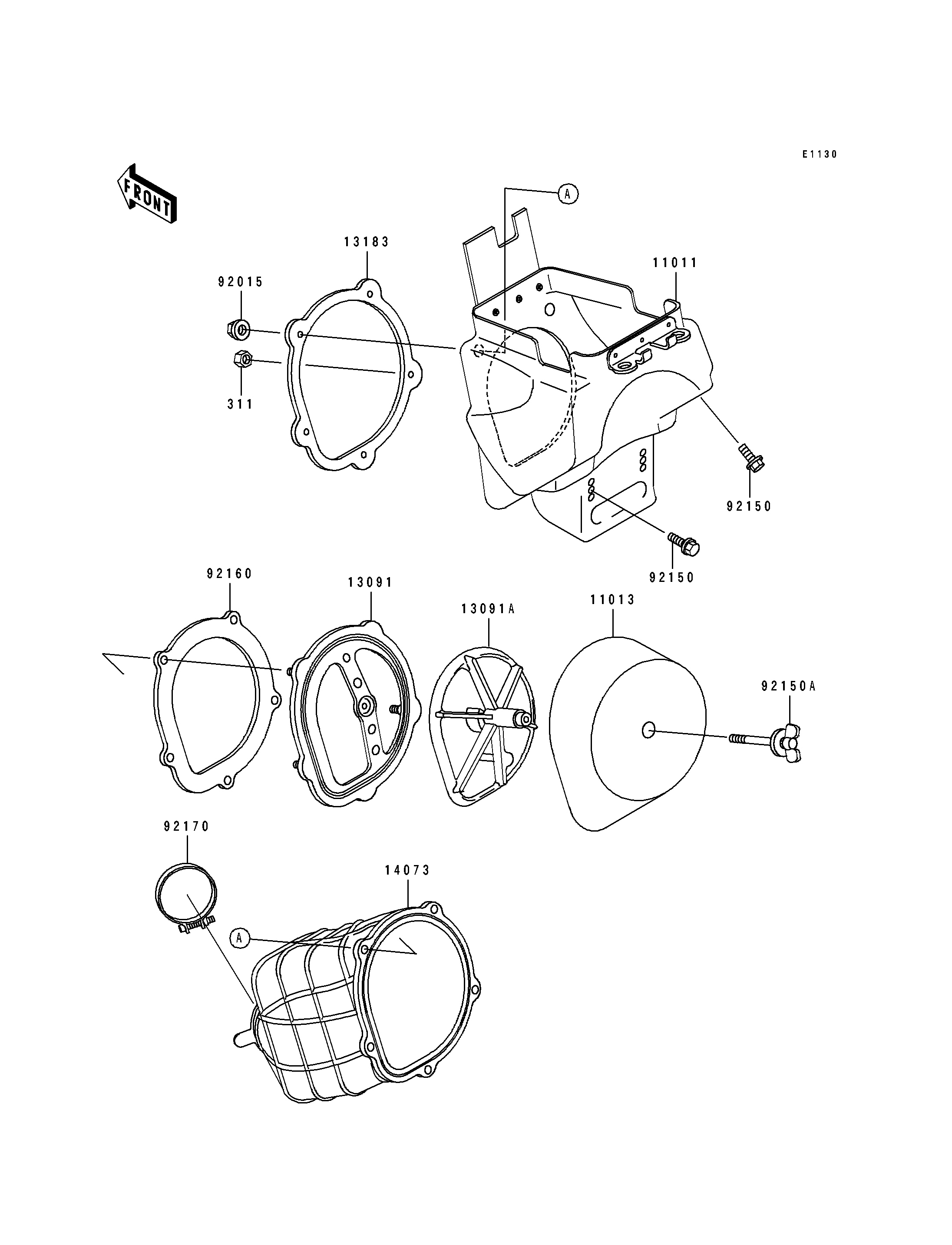

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011 11011-1370 1
ELEMENT-AIR FILTER 11013 11013-1219 1
HOLDER,AIR FILTER 13091 13091-1784 1
HOLDER,ELEMENT 13091A 13091-1785 1
PLATE,DUCT FITTING 13183 13183-1788 1
DUCT,AIR FILTER 14073 14073-1508 1
NUT,FLANGED,5MM 92015 92015-1259 4
BOLT,FLANGED,6X16 92150 92150-1506 4
BOLT,WING 92150A 92150-1565 1
DAMPER,DUCT SEAL 92160 92160-1331 1
CLAMP,AIR FILTER 92170 92170-1299 1
NUT-HEX 311 311H0500 1
