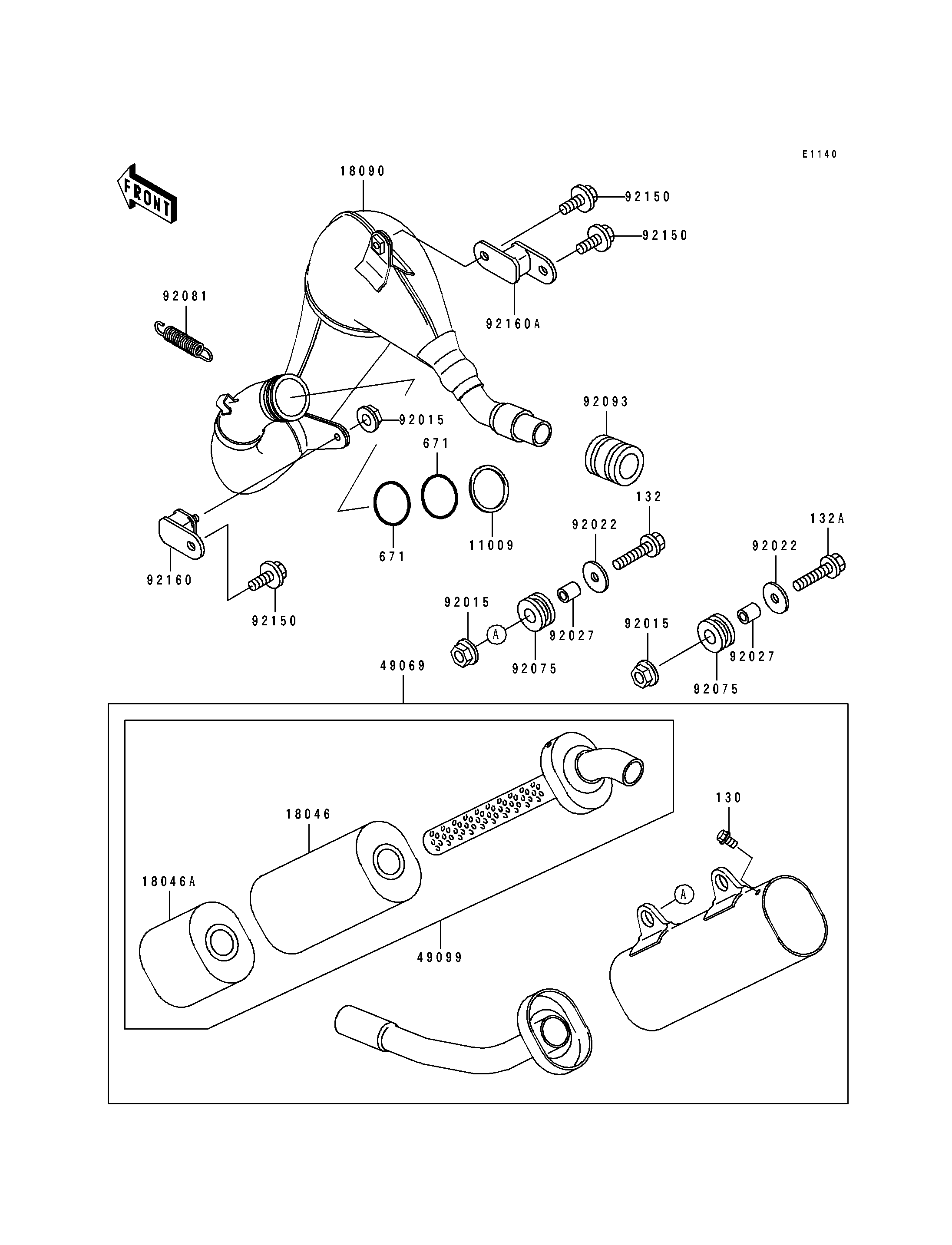

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,EXHAUST PIPE | 11009 | 11009-1949 | 1 | ||
WOOL,BAFFLE PIPE,RR | 18046 | 18046-1122 | 1 | ||
WOOL,BAFFLE PIPE,FR | 18046A | 18046-1132 | 1 | ||
BODY-COMP-MUFFLER | 18090 | 18090-1152 | 1 | ||
MUFFLER-ASSY | 49069 | 49069-1143 | 1 | ||
BAFFLE-PIPE MUFFLER | 49099 | 49099-1346 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1078 | 3 | ||
WASHER,6.5X22X1.6 | 92022 | 92022-237 | 2 | ||
COLLAR,6.8X10X11.5 | 92027 | 92027-1210 | 2 | ||
DAMPER,MUFFLER FITTING | 92075 | 92075-1857 | 2 | ||
SPRING | 92081 | 92081-1526 | 2 | ||
SEAL,MUFFLER CONNECTING | 92093 | 92093-1328 | 1 | ||
BOLT,6X12 | 92150 | 92150-1435 | 3 | ||
DAMPER,MUFFLER,FR | 92160 | 92160-1176 | 1 | ||
DAMPER,MUFFLER,RR | 92160A | 92160-1201 | 1 | ||
BOLT-FLANGED | 130 | 130G0508 | 4 | ||
BOLT-FLANGED-SMALL | 132 | 132G0630 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132G0635 | 1 | ||
O RING,50MM | 671 | 671E2550 | 2 |
