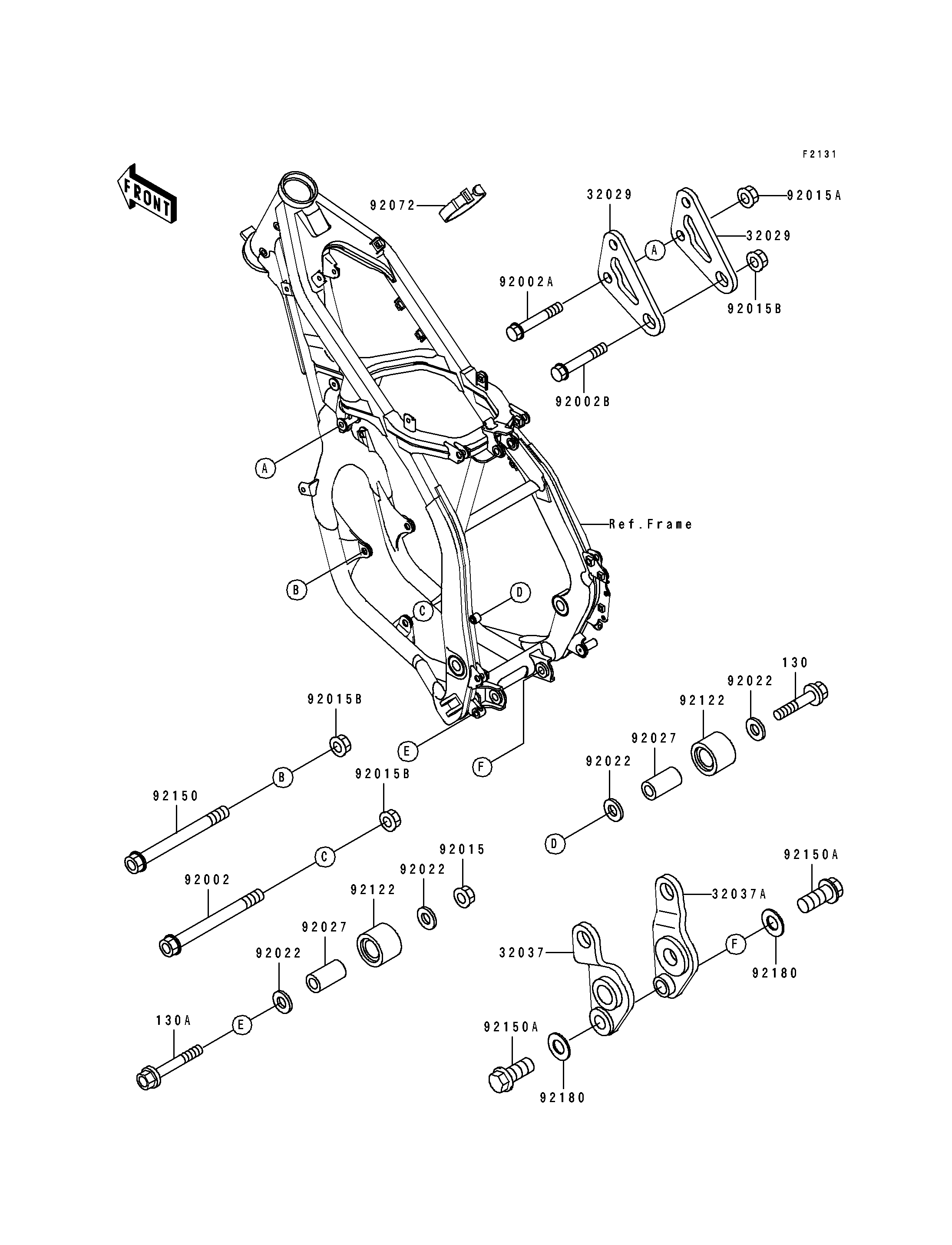

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE 32029 32029-1791 2
BRACKET-SHOCKABSORBER,LWR,LH 32037 32037-1581 1
BRACKET-SHOCKABSORBER,LWR,RH 32037A 32037-1582 1
BOLT,FLANGED,10X105 92002 92002-1491 1
BOLT,FLANGED,8X52 92002A 92002-1857 2
BOLT,FLANGED,10X53 92002B 92002-1936 1
NUT,8MM 92015 92015-1143 1
NUT,8MM 92015A 92015-1432 2
NUT,FLANGED,10MM 92015B 92015-1502 3
WASHER,8.5X22X1.5 92022 92022-1629 4
COLLAR,CHAIN ROLLER 92027 92027-1670 2
BAND,L=186 92072 92072-056 3
ROLLER,CHAIN GUIDE 92122 92122-1153 2
BOLT,FLANGED,10X95 92150 92150-1230 1
BOLT,FLANGED,12X27 92150A 92150-1359 2
SHIM,12.5X24X0.5 92180 92180-1060 2
BOLT-FLANGED,8X40 130 130G0840 1
BOLT-FLANGED,8X55 130A 130G0855 1
