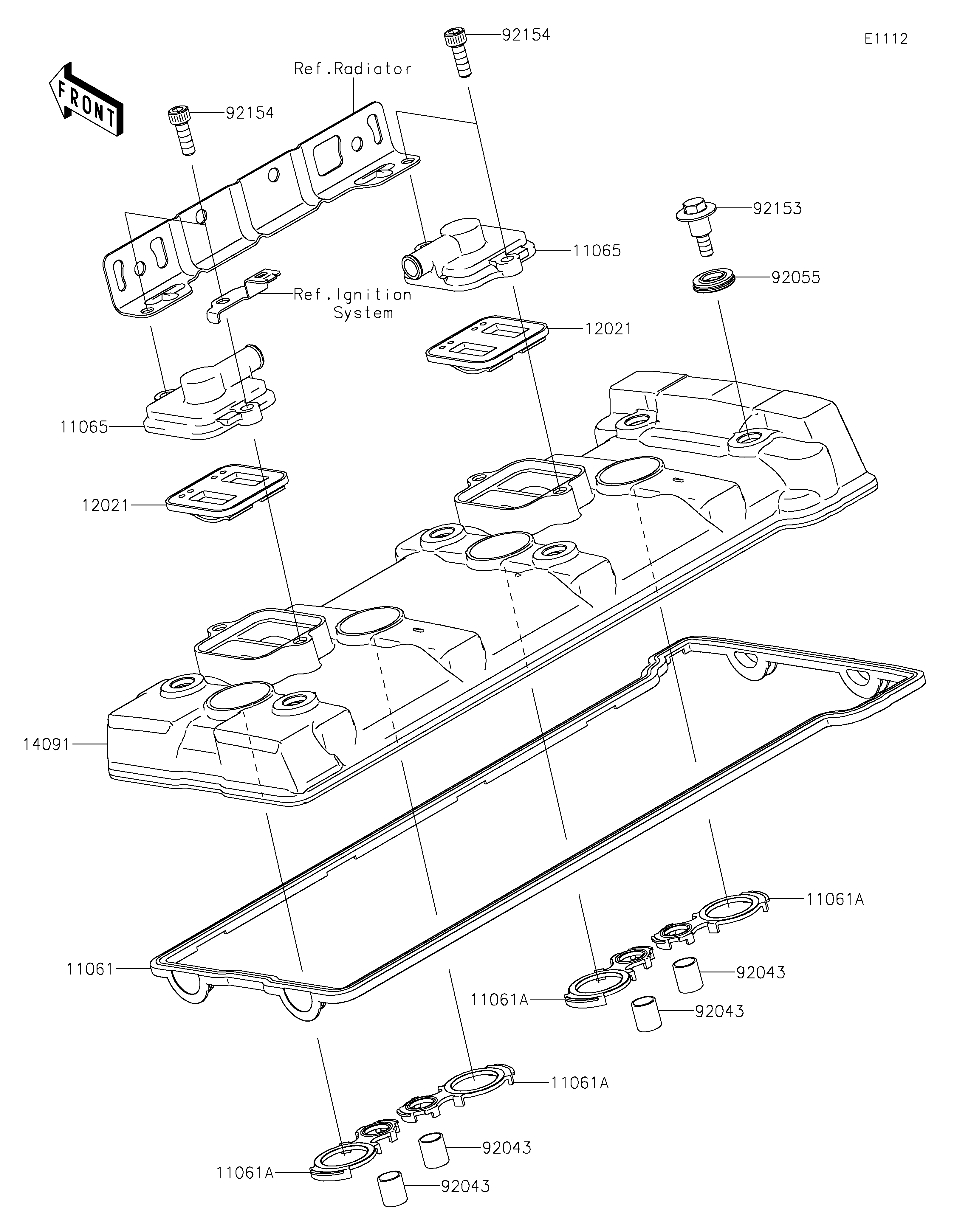

2019 NINJA® ZX™-14R ABS - Cylinder Head Cover
11061
11061A
11061A
11061A
11061A
11065
11065
12021
12021
14091
92043
92043
92043
92043
92055
92153
92154
92154
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,HEAD COVER | 11061 | 11061-0738 | 1 | ||
| GASKET,HEAD HOLE | 11061A | 11061-0977 | 4 | ||
| CAP | 11065 | 11065-1247 | 2 | ||
| VALVE-ASSY-REED | 12021 | 12021-1130 | 2 | ||
| COVER,HEAD | 14091 | 14091-1574 | 1 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 4 | ||
| RING-O | 92055 | 92055-0187 | 6 | ||
| BOLT,FLANGED,6X22.5 | 92153 | 92153-1016 | 6 | ||
| BOLT,SOCKET,6X18 | 92154 | 92154-1832 | 4 |
| GASKET,HEAD COVER | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,HEAD HOLE | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,HEAD | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,10.1X12X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X22.5 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
