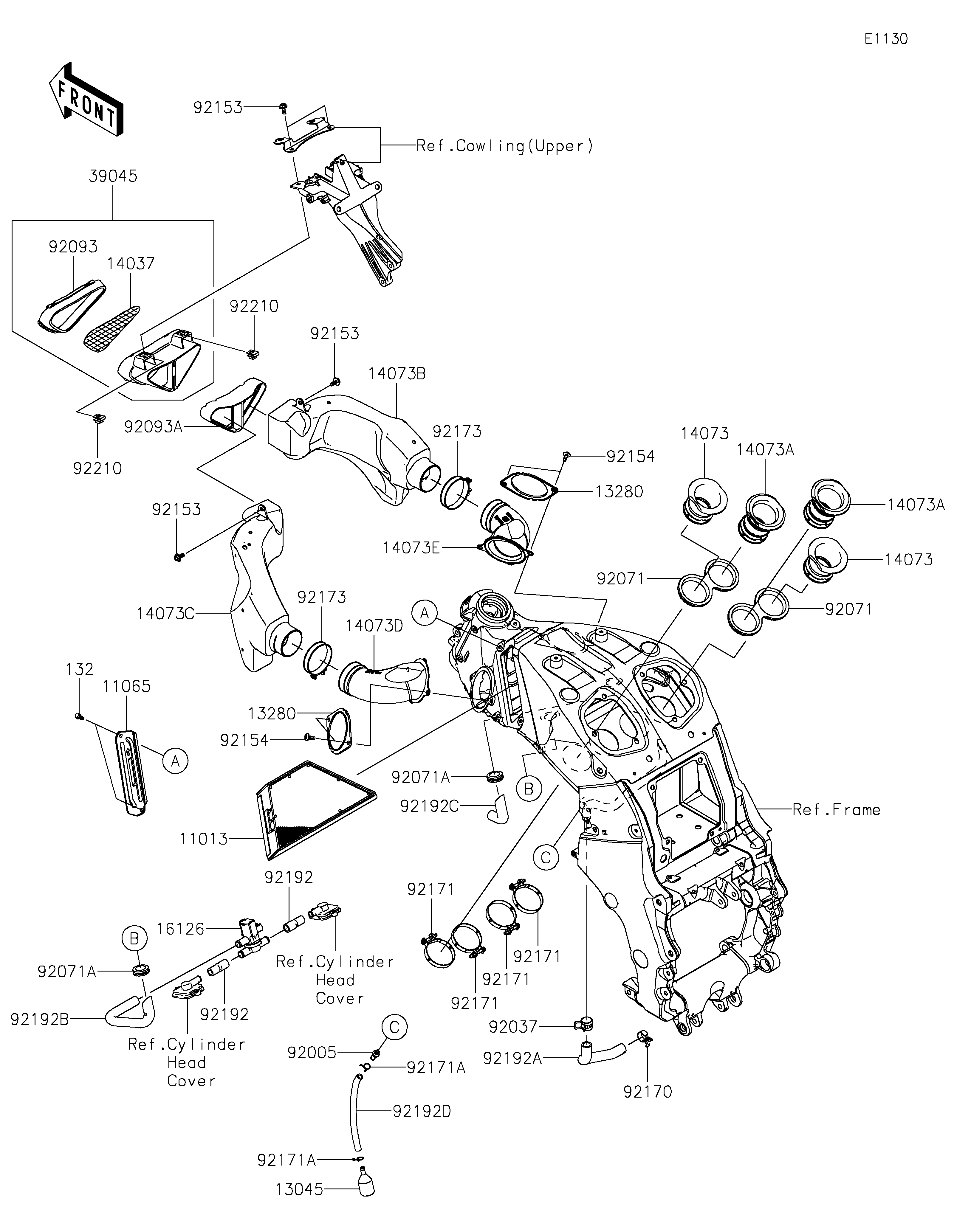

2019 NINJA® ZX™-14R ABS - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11013
11065
13045
132
13280
13280
14037
14073
14073
14073A
14073A
14073B
14073C
14073D
14073E
16126
39045
92005
92037
92071
92071
92071A
92071A
92093
92093A
92153
92153
92153
92154
92154
92170
92171
92171
92171
92171
92171A
92171A
92173
92173
92192
92192
92192A
92192B
92192C
92192D
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ELEMENT-AIR FILTER 11013 11013-0718 1
CAP 11065 11065-0367 1
RECEIVER-OIL 13045 13045-1057 1
BOLT-FLANGED-SMALL,6X14 132 132BA0614 2
HOLDER 13280 13280-0154 2
SCREEN 14037 14037-0044 1
DUCT,FUNNEL 14073 14073-0168 2
DUCT,FUNNEL 14073A 14073-0737 2
DUCT,RAM AIR,RH 14073B 14073-0842 1
DUCT,RAM AIR,LH 14073C 14073-0843 1
DUCT,RAM FRAME,LH 14073D 14073-0844 1
DUCT,RAM FRAME,RH 14073E 14073-0845 1
VALVE,AIR SWITCHING 16126 16126-0745 1
DUCT-ASSY,RAM AIR,FR 39045 39045-0043 1
FITTING 92005 92005-0834 1
CLAMP,HOSE CLIP 92037 92037-1460 1
GROMMET 92071 92071-0023 2
GROMMET,AIR FILTER 92071A 92071-1042 2
SEAL 92093 92093-0052 1
SEAL,RAM,DUCT 92093A 92093-0053 1
BOLT,UPSET-WP,6X16 92153 92153-1587 4
BOLT,SOCKET,6X20 92154 92154-1833 4
CLAMP 92170 92170-1060 1
CLAMP 92171 92171-0677 4
CLAMP 92171A 92171-0721 2
CLAMP,65MM 92173 92173-0080 2
TUBE,REED VALVE-ASV 92192 92192-0376 2
TUBE,BREATHER 92192A 92192-0701 1
TUBE,FITTING-ASV 92192B 92192-1007 1
TUBE,FITTING-ISCV 92192C 92192-1008 1
TUBE,7X12X180 92192D 92192-1116 1
NUT 92210 92210-0318 2
