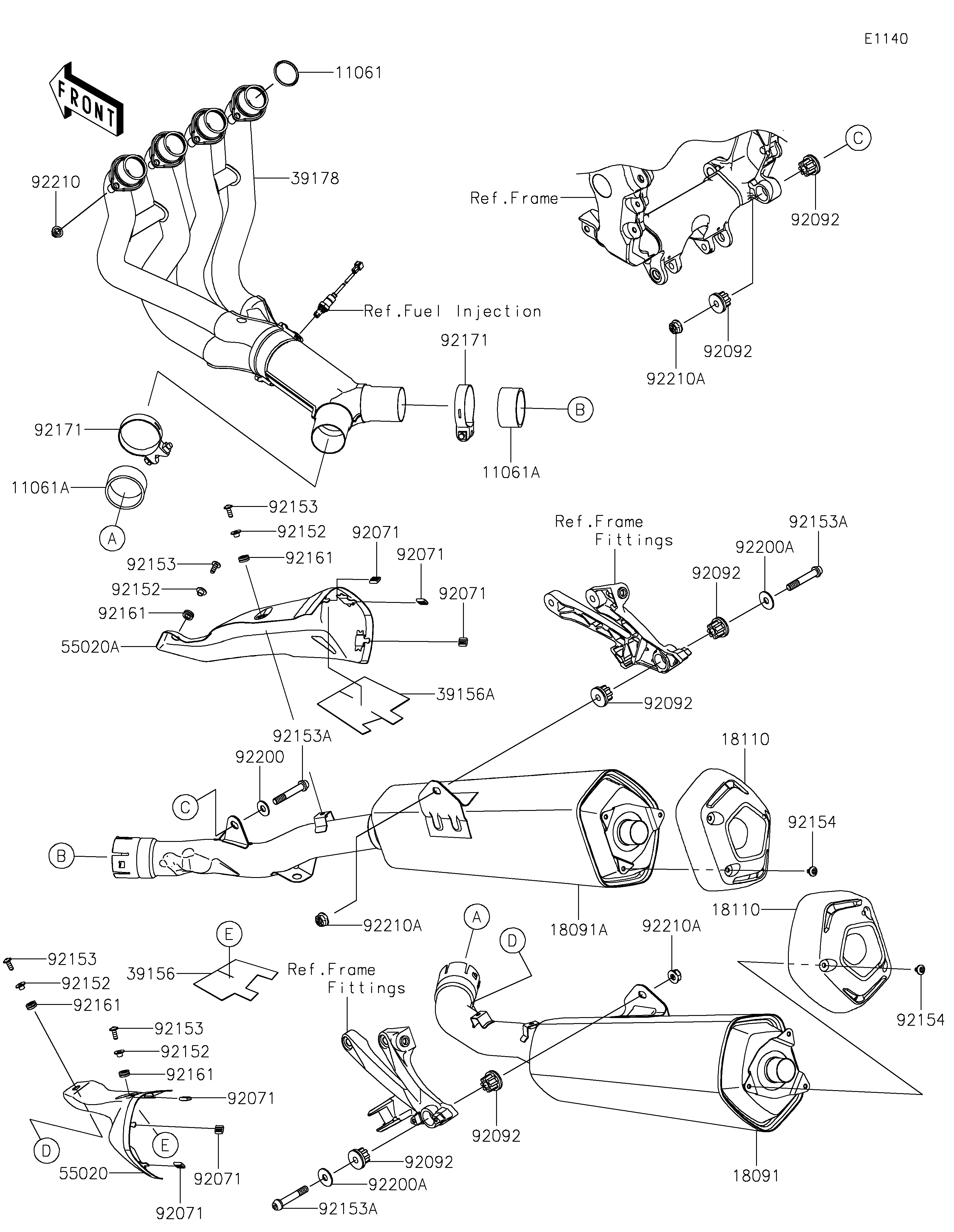

2019 NINJA® ZX™-14R ABS - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061A
18091
18091A
18110
18110
39156
39156A
39178
55020
55020A
92071
92071
92071
92071
92071
92071
92092
92092
92092
92092
92092
92092
92152
92152
92152
92152
92153
92153
92153
92153
92153A
92153A
92153A
92154
92154
92161
92161
92161
92161
92171
92171
92200
92200A
92200A
92210
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EX PIPE 11061 11061-0027 4
GASKET,54X62X30 11061A 11061-0448 2
BODY-COMP-MUFFLER,LH 18091 18091-0974 1
BODY-COMP-MUFFLER,RH 18091A 18091-0976 1
BODY END-MUFFLER 18110 18110-0166 2
PAD,LH GUARD 39156 39156-0821 1
PAD,RH GUARD 39156A 39156-0822 1
MANIFOLD-COMP-EXHAUST 39178 39178-0260 1
GUARD,LH 55020 55020-0944 1
GUARD,RH 55020A 55020-0945 1
GROMMET 92071 92071-1270 6
BUSHING-RUBBER,MUFFLER 92092 92092-1087 6
COLLAR,6.3X8.3X16 92152 92152-0286 4
BOLT,SOCKET,6X16 92153 92153-0817 4
BOLT,SOCKET,10X60 92153A 92153-1837 3
BOLT,SOCKET,6X10 92154 92154-1834 6
DAMPER 92161 92161-0306 4
CLAMP,64.5MM 92171 92171-0683 2
WASHER,10.5X25X2.0 92200 92200-1377 1
WASHER 92200A 92200-3762 2
NUT,8MM 92210 92210-0076 8
NUT,10X1.25 92210A 92210-0316 3
