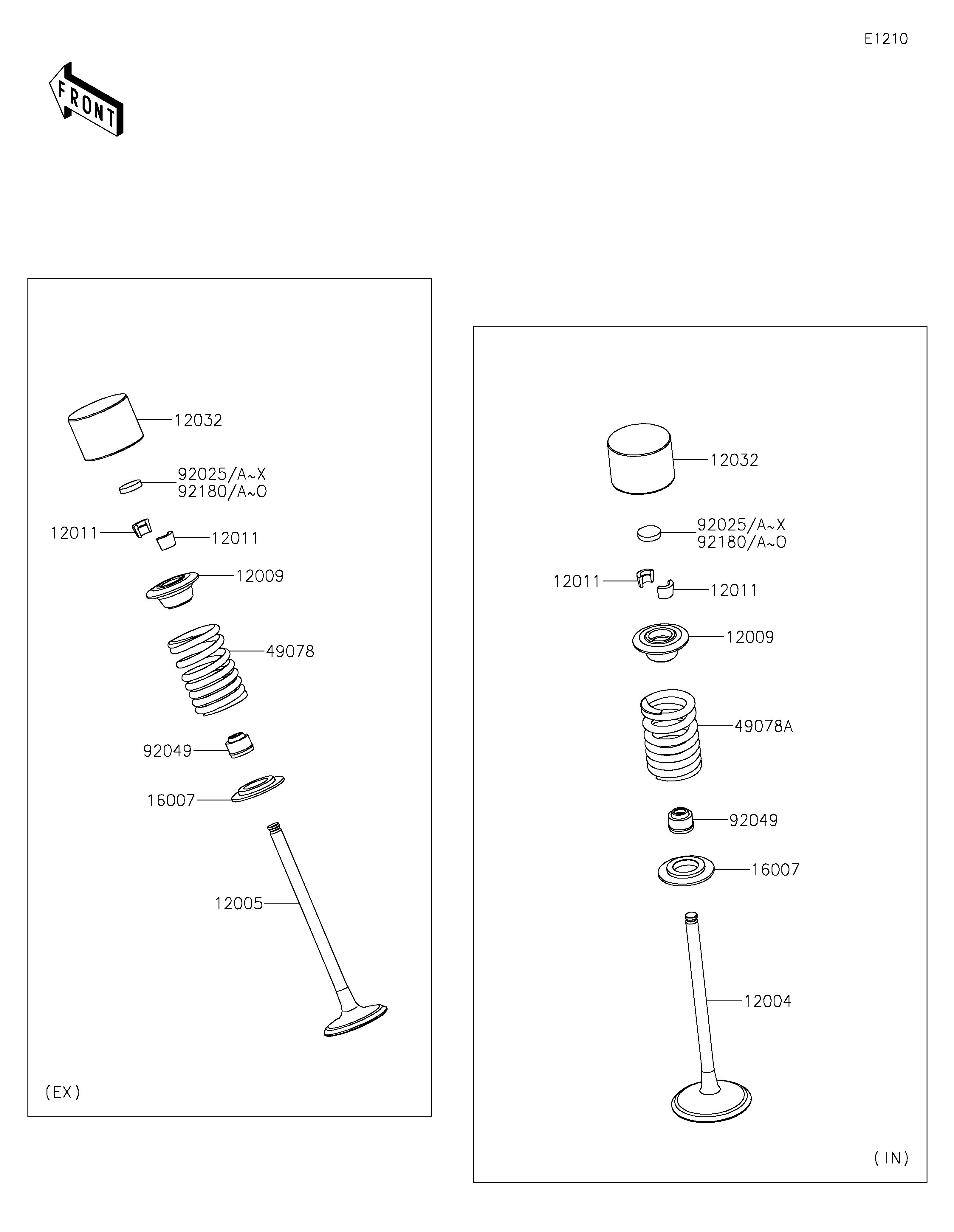

2019 NINJA® ZX™-14R ABS - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
12004
12004
12005
12005
12009
12009
12009
12009
12011
12011
12011
12011
12011
12011
12011
12011
12032
12032
12032
12032
16007
16007
16007
16007
49078
49078
49078A
49078A
92025
92025
92025
92025
92025A
92025A
92025A
92025A
92025B
92025B
92025B
92025B
92025C
92025C
92025C
92025C
92025D
92025D
92025D
92025D
92025E
92025E
92025E
92025E
92025F
92025F
92025F
92025F
92025G
92025G
92025G
92025G
92025H
92025H
92025H
92025H
92025I
92025I
92025I
92025I
92025J
92025J
92025J
92025J
92025K
92025K
92025K
92025K
92025L
92025L
92025L
92025L
92025M
92025M
92025M
92025M
92025N
92025N
92025N
92025N
92025O
92025O
92025O
92025O
92025P
92025P
92025P
92025P
92025Q
92025Q
92025Q
92025Q
92025R
92025R
92025R
92025R
92025S
92025S
92025S
92025S
92025T
92025T
92025T
92025T
92025U
92025U
92025U
92025U
92025V
92025V
92025V
92025V
92025W
92025W
92025W
92025W
92025X
92025X
92025X
92025X
92049
92049
92049
92049
92180
92180
92180
92180
92180A
92180A
92180A
92180A
92180B
92180B
92180B
92180B
92180C
92180C
92180C
92180C
92180D
92180D
92180D
92180D
92180E
92180E
92180E
92180E
92180F
92180F
92180F
92180F
92180G
92180G
92180G
92180G
92180H
92180H
92180H
92180H
92180I
92180I
92180I
92180I
92180J
92180J
92180J
92180J
92180K
92180K
92180K
92180K
92180L
92180L
92180L
92180L
92180M
92180M
92180M
92180M
92180N
92180N
92180N
92180N
92180O
92180O
92180O
92180O
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-0715 8
VALVE-EXHAUST 12005 12005-0037 8
RETAINER-VALVE SPRING 12009 12009-0009 16
COLLET 12011 12011-1051 32
TAPPET,D26.5 12032 12032-0013 16
SEAT-SPRING 16007 16007-0023 16
SPRING-ENGINE VALVE,EXHAUST 49078 49078-0712 8
SPRING-ENGINE VALVE,INTAKE 49078A 49078-0713 8
SHIM,T=2.00 92025 92025-1870 16
SHIM,T=2.05 92025A 92025-1871 AR
SHIM,T=2.10 92025B 92025-1872 AR
SHIM,T=2.15 92025C 92025-1873 AR
SHIM,T=2.20 92025D 92025-1874 AR
SHIM,T=2.25 92025E 92025-1875 AR
SHIM,T=2.30 92025F 92025-1876 AR
SHIM,T=2.35 92025G 92025-1877 AR
SHIM,T=2.40 92025H 92025-1878 AR
SHIM,T=2.45 92025I 92025-1879 AR
SHIM,T=2.50 92025J 92025-1880 AR
SHIM,T=2.55 92025K 92025-1881 AR
SHIM,T=2.60 92025L 92025-1882 AR
SHIM,T=2.65 92025M 92025-1883 AR
SHIM,T=2.70 92025N 92025-1884 AR
SHIM,T=2.75 92025O 92025-1885 AR
SHIM,T=2.80 92025P 92025-1886 AR
SHIM,T=2.85 92025Q 92025-1887 AR
SHIM,T=2.90 92025R 92025-1888 AR
SHIM,T=2.95 92025S 92025-1889 AR
SHIM,T=3.00 92025T 92025-1890 AR
SHIM,T=2.425 92025U 92025-1982 AR
SHIM,T=2.475 92025V 92025-1983 AR
SHIM,T=2.525 92025W 92025-1984 AR
SHIM,T=2.575 92025X 92025-1985 AR
SEAL-OIL,RVCI 5X8.7X8 92049 92049-1509 16
SHIM,T=2.025 92180 92180-0209 AR
SHIM,T=2.075 92180A 92180-0210 AR
SHIM,T=2.125 92180B 92180-0211 AR
SHIM,T=2.175 92180C 92180-0212 AR
SHIM,T=2.225 92180D 92180-0213 AR
SHIM,T=2.275 92180E 92180-0214 AR
SHIM,T=2.325 92180F 92180-0215 AR
SHIM,T=2.825 92180G 92180-0216 AR
SHIM,T=2.875 92180H 92180-0217 AR
SHIM,T=2.925 92180I 92180-0218 AR
SHIM,T=2.975 92180J 92180-0219 AR
SHIM,T=2.375 92180K 92180-1058 AR
SHIM,T=2.625 92180L 92180-1059 AR
SHIM,T=2.675 92180M 92180-1194 AR
SHIM,T=2.725 92180N 92180-1195 AR
SHIM,T=2.775 92180O 92180-1196 AR
