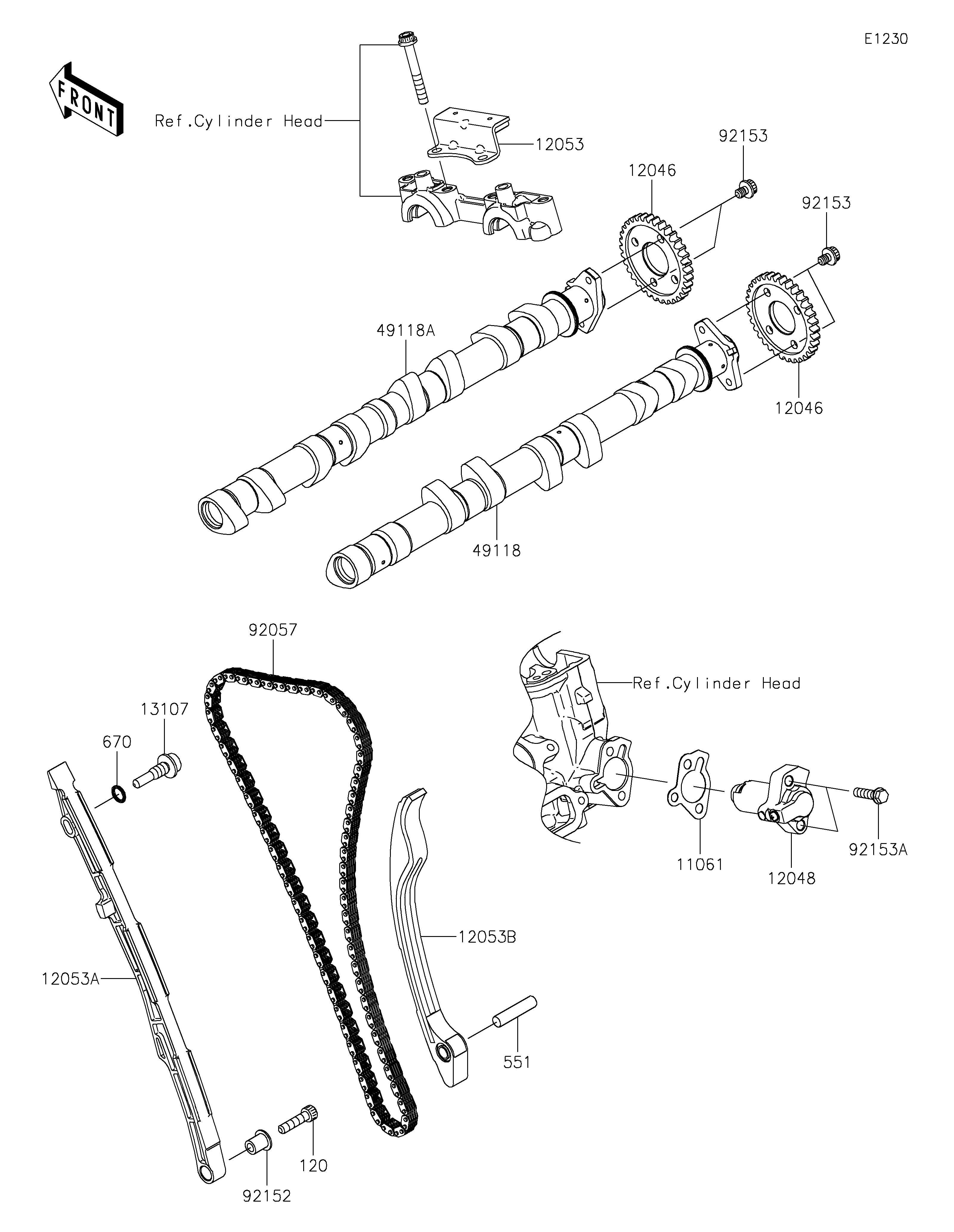

2019 NINJA® ZX™-14R ABS - Camshaft(s)/Tensioner
11061
120
12046
12046
12048
12053
12053A
12053B
13107
49118
49118A
551
670
92057
92152
92153
92153
92153A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TENSIONER | 11061 | 11061-0796 | 1 | ||
| BOLT-SOCKET,6X25 | 120 | 120CA0625 | 1 | ||
| SPROCKET,34T | 12046 | 12046-0570 | 2 | ||
| TENSIONER-ASSY | 12048 | 12048-0101 | 1 | ||
| GUIDE-CHAIN,UPP | 12053 | 12053-0067 | 1 | ||
| GUIDE-CHAIN,FR | 12053A | 12053-0182 | 1 | ||
| GUIDE-CHAIN,RR | 12053B | 12053-0183 | 1 | ||
| SHAFT,CHAIN GUIDE | 13107 | 13107-0157 | 1 | ||
| CAMSHAFT-COMP,INTAKE | 49118 | 49118-0739 | 1 | ||
| CAMSHAFT-COMP,EXHAUST | 49118A | 49118-0740 | 1 | ||
| PIN-DOWEL | 551 | 551A0835 | 1 | ||
| O RING,9MM | 670 | 670D1509 | 1 | ||
| CHAIN,98XRH2015-132M | 92057 | 92057-0576 | 1 | ||
| COLLAR | 92152 | 92152-0413 | 1 | ||
| BOLT,FLANGED,6X8 | 92153 | 92153-0455 | 4 | ||
| BOLT,FLANGED-SMALL,6X22 | 92153A | 92153-1560 | 2 |
| GASKET,TENSIONER | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X25 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,34T | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TENSIONER-ASSY | |
| REF # | 12048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,UPP | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,FR | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,RR | |
| REF # | 12053B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,CHAIN GUIDE | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT-COMP,INTAKE | |
| REF # | 49118 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT-COMP,EXHAUST | |
| REF # | 49118A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,9MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,98XRH2015-132M | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X8 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED-SMALL,6X22 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
