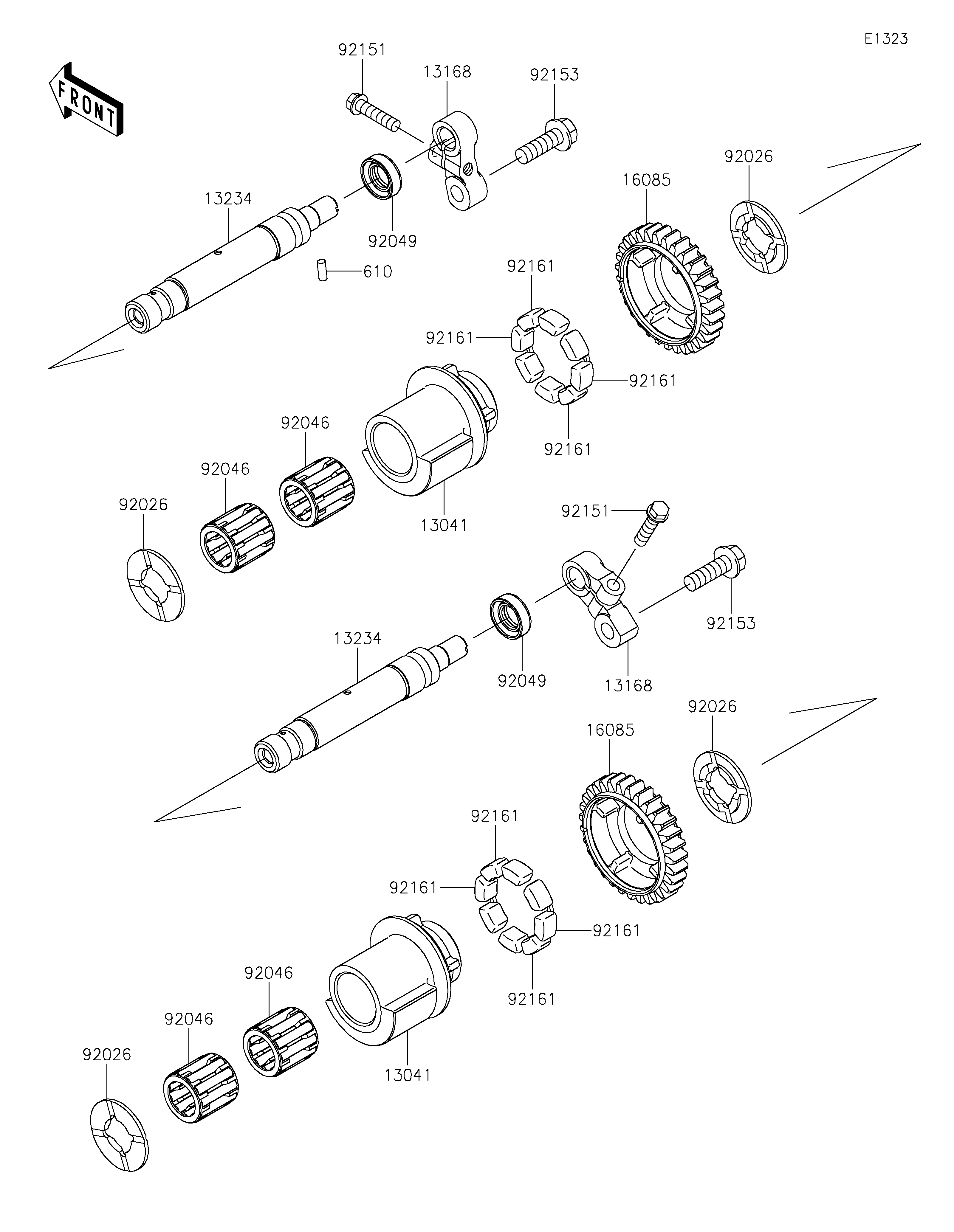

2019 NINJA® ZX™-14R ABS - Balancer

DOWNLOAD PDF
SELECT A NEW PART
13041
13041
13168
13168
13234
13234
16085
16085
610
92026
92026
92026
92026
92046
92046
92046
92046
92049
92049
92151
92151
92153
92153
92161
92161
92161
92161
92161
92161
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALANCER 13041 13041-0554 2
LEVER 13168 13168-0115 2
SHAFT-COMP 13234 13234-0038 2
GEAR,31T 16085 16085-0084 2
ROLLER,4X10 610 610A0410 1
SPACER 92026 92026-0730 4
BEARING-NEEDLE 92046 92046-1266 4
SEAL-OIL,TC 12X22X7 92049 92049-2204 2
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 2
BOLT,FLANGED,8X25 92153 92153-1562 2
DAMPER 92161 92161-1055 8
