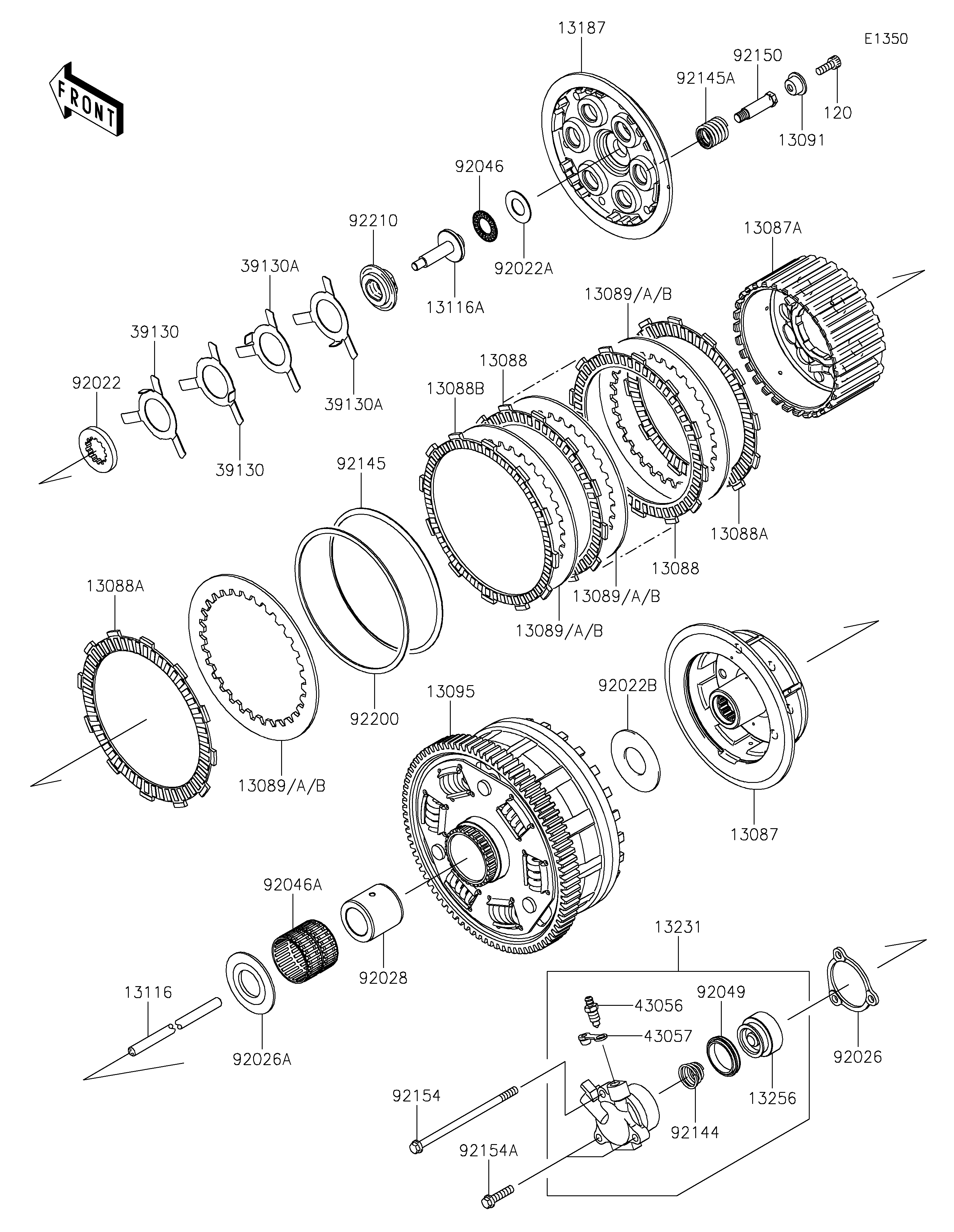

Parts Diagrams |
120
13087
13087A
13088
13088
13088A
13088A
13088B
13089
13089
13089
13089
13089A
13089A
13089A
13089A
13089B
13089B
13089B
13089B
13091
13095
13116
13116A
13187
13231
13256
39130
39130
39130A
39130A
43056
43057
92022
92022A
92022B
92026
92026A
92028
92046
92046A
92049
92144
92145
92145A
92150
92154
92154A
92200
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X16 | 120 | 120Q0616 | 6 | ||
| HUB-CLUTCH | 13087 | 13087-0556 | 1 | ||
| HUB-CLUTCH | 13087A | 13087-0560 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-0030 | 7 | ||
| PLATE-FRICTION | 13088A | 13088-0031 | 2 | ||
| PLATE-FRICTION | 13088B | 13088-0032 | 1 | ||
| PLATE-CLUTCH,T=2.6 | 13089 | 13089-0018 | 9 | ||
| PLATE-CLUTCH,T=2.3 | 13089A | 13089-0019 | AR | ||
| PLATE-CLUTCH,T=2.9 | 13089B | 13089-0020 | AR | ||
| HOLDER,CLUTCH SPRING | 13091 | 13091-1840 | 6 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-0583 | 1 | ||
| ROD-PUSH | 13116 | 13116-0022 | 1 | ||
| ROD-PUSH,CLUTCH | 13116A | 13116-0040 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-0012 | 1 | ||
| RELEASE-ASSY-CLUTCH | 13231 | 13231-0002 | 1 | ||
| PISTON | 13256 | 13256-0004 | 1 | ||
| SPRING-LEAF | 39130 | 39130-1078 | 2 | ||
| SPRING-LEAF | 39130A | 39130-1079 | 2 | ||
| BREATHER | 43056 | 43056-1055 | 1 | ||
| CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
| WASHER,TOOTHED,25X40X5 | 92022 | 92022-1114 | 1 | ||
| WASHER,15.1X29X1.0 | 92022A | 92022-1463 | 1 | ||
| WASHER,25.3X56X2.0 | 92022B | 92022-1857 | 1 | ||
| SPACER,CLUTCH RELEASE | 92026 | 92026-1263 | 1 | ||
| SPACER | 92026A | 92026-1497 | 1 | ||
| BUSHING | 92028 | 92028-1934 | 1 | ||
| BEARING-NEEDLE,AXK1102 | 92046 | 92046-1052 | 1 | ||
| BEARING-NEEDLE | 92046A | 92046-1267 | 1 | ||
| SEAL-OIL | 92049 | 92049-0086 | 1 | ||
| SPRING,CLUTCH RELEASE | 92144 | 92144-1084 | 1 | ||
| SPRING,JUDDER | 92145 | 92145-0369 | 1 | ||
| SPRING,15X2.7 | 92145A | 92145-0440 | 6 | ||
| BOLT,CLUTCH | 92150 | 92150-1477 | 6 | ||
| BOLT,FLANGED,6X115 | 92154 | 92154-1835 | 1 | ||
| BOLT,FLANGED-SMALL,6X25 | 92154A | 92154-1836 | 2 | ||
| WASHER,124.3X133X1.6 | 92200 | 92200-0830 | 1 | ||
| NUT | 92210 | 92210-0152 | 1 |
