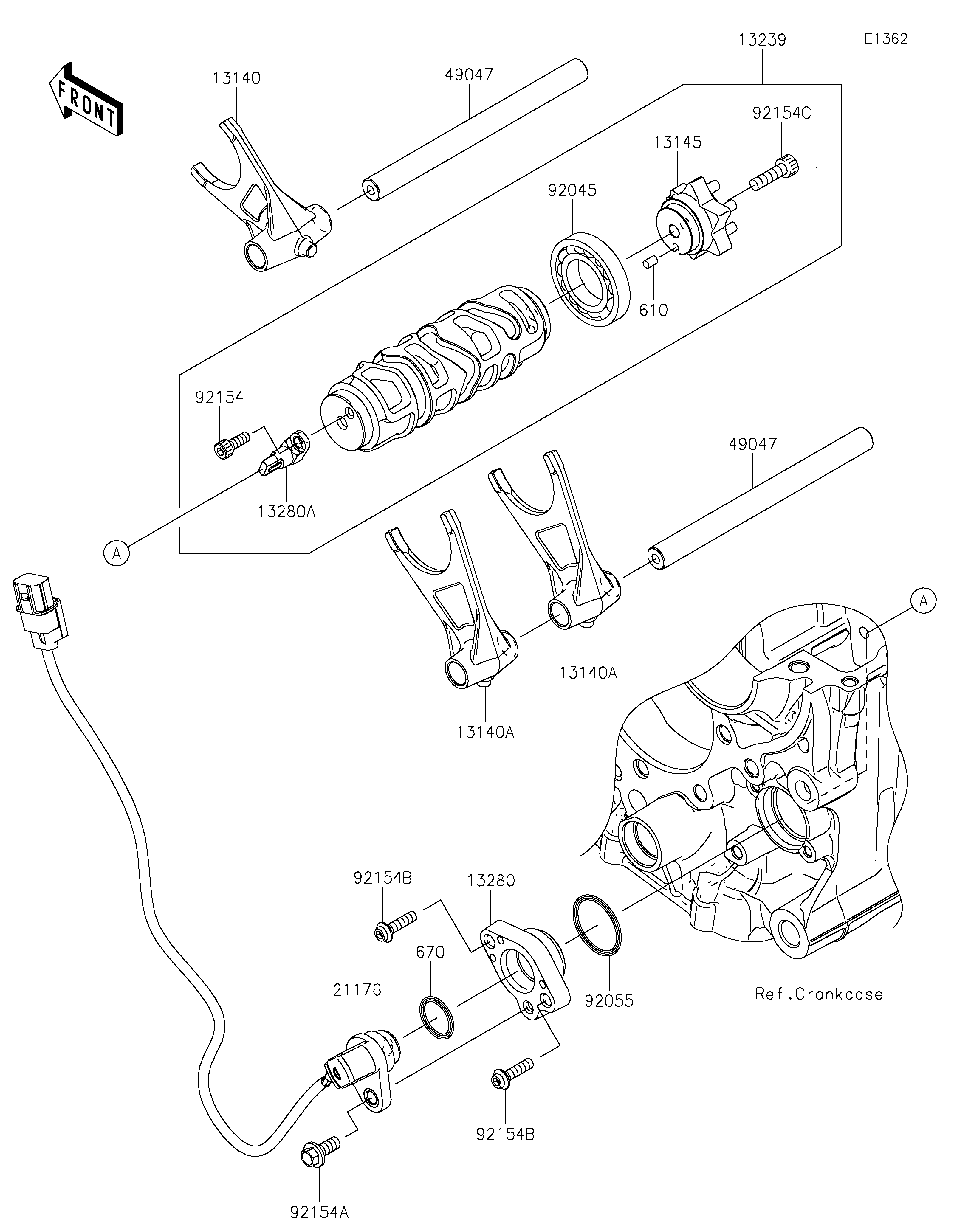

2019 NINJA® ZX™-14R ABS - Gear Change Drum/Shift Fork(s)
13140
13140A
13140A
13145
13239
13280
13280A
21176
49047
49047
610
670
92045
92055
92154
92154A
92154B
92154B
92154C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FORK-SHIFT,INPUT | 13140 | 13140-0049 | 1 | ||
| FORK-SHIFT,OUTPUT | 13140A | 13140-0050 | 2 | ||
| CAM-CHANGE DRUM | 13145 | 13145-0023 | 1 | ||
| DRUM-ASSY-CHANGE | 13239 | 13239-0042 | 1 | ||
| HOLDER,GEAR POSITION SENSOR | 13280 | 13280-0846 | 1 | ||
| HOLDER | 13280A | 13280-0850 | 1 | ||
| SENSOR,GEAR POSITION | 21176 | 21176-0787 | 1 | ||
| ROD-SHIFT | 49047 | 49047-0644 | 2 | ||
| ROLLER,4X6 | 610 | 610A0406 | 1 | ||
| O RING,18MM | 670 | 670D2018 | 1 | ||
| BEARING-BALL,16005 | 92045 | 92045-1045 | 1 | ||
| RING-O,27.7X2.4 | 92055 | 92055-091 | 1 | ||
| BOLT,SOCKET,5X14 | 92154 | 92154-0491 | 1 | ||
| BOLT,FLANGED,6X14 | 92154A | 92154-1797 | 1 | ||
| BOLT,SOCKET,5X20 | 92154B | 92154-1798 | 2 | ||
| BOLT,SOCKET,6X20 | 92154C | 92154-1837 | 1 |
