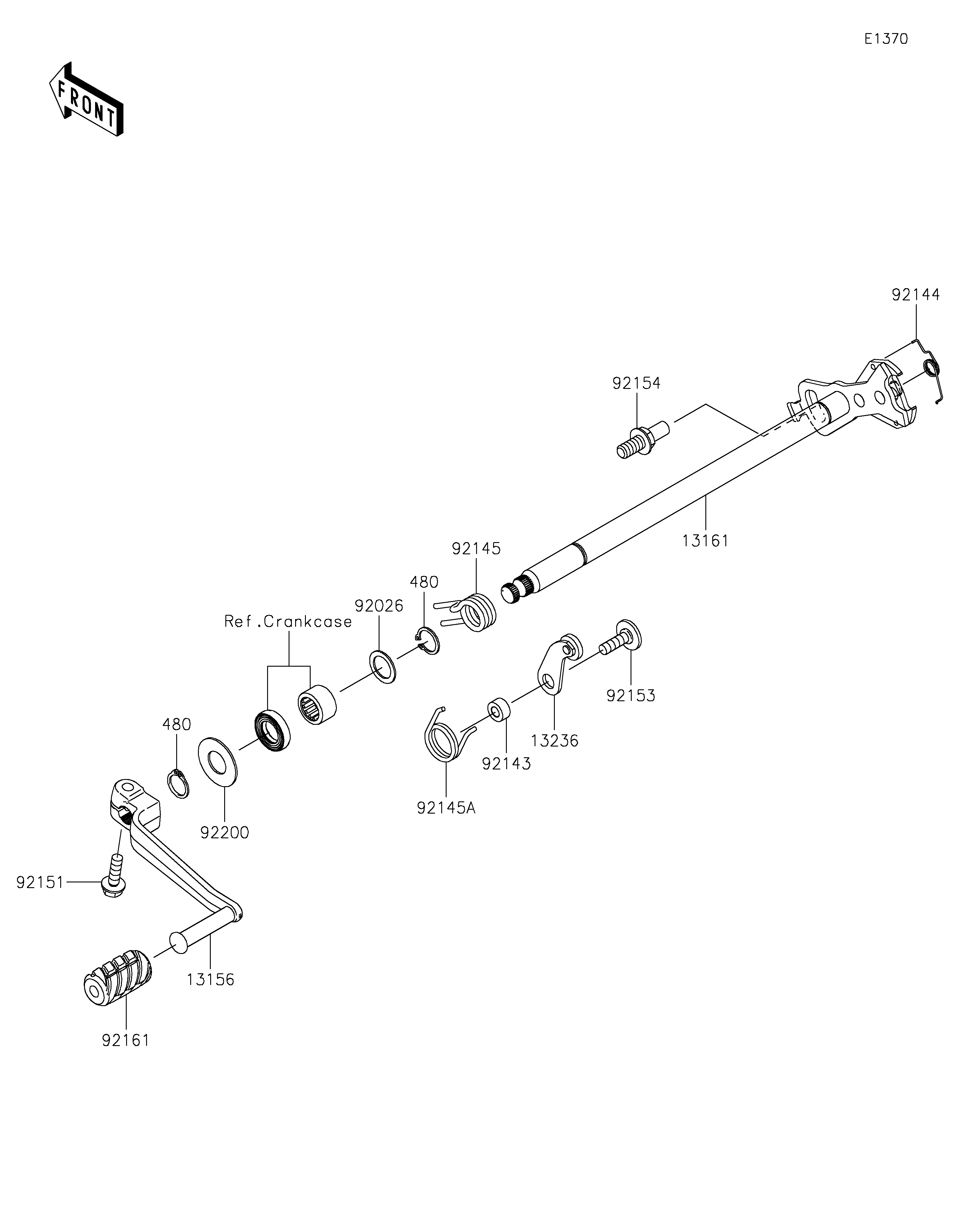

2019 NINJA® ZX-14R ABS - Gear Change Mechanism

13156
13161
13236
480
480
92026
92143
92144
92145
92145A
92151
92153
92154
92161
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-CHANGE,PEDAL 13156 13156-0075 1
LEVER-COMP-CHANGE SHAFT 13161 13161-0567 1
LEVER-COMP 13236 13236-1243 1
CIRCLIP-TYPE-C,14MM 480 480J1400 2
SPACER,14X20X1.0 92026 92026-1534 1
COLLAR 92143 92143-1595 1
SPRING 92144 92144-1029 1
SPRING 92145 92145-0336 1
SPRING 92145A 92145-0404 1
BOLT,FLANGED,6X20 92151 92151-1226 1
BOLT,6X20 92153 92153-1505 1
BOLT,RETURN SPRING 92154 92154-1838 1
DAMPER 92161 92161-1769 1
WASHER 92200 92200-0265 1
