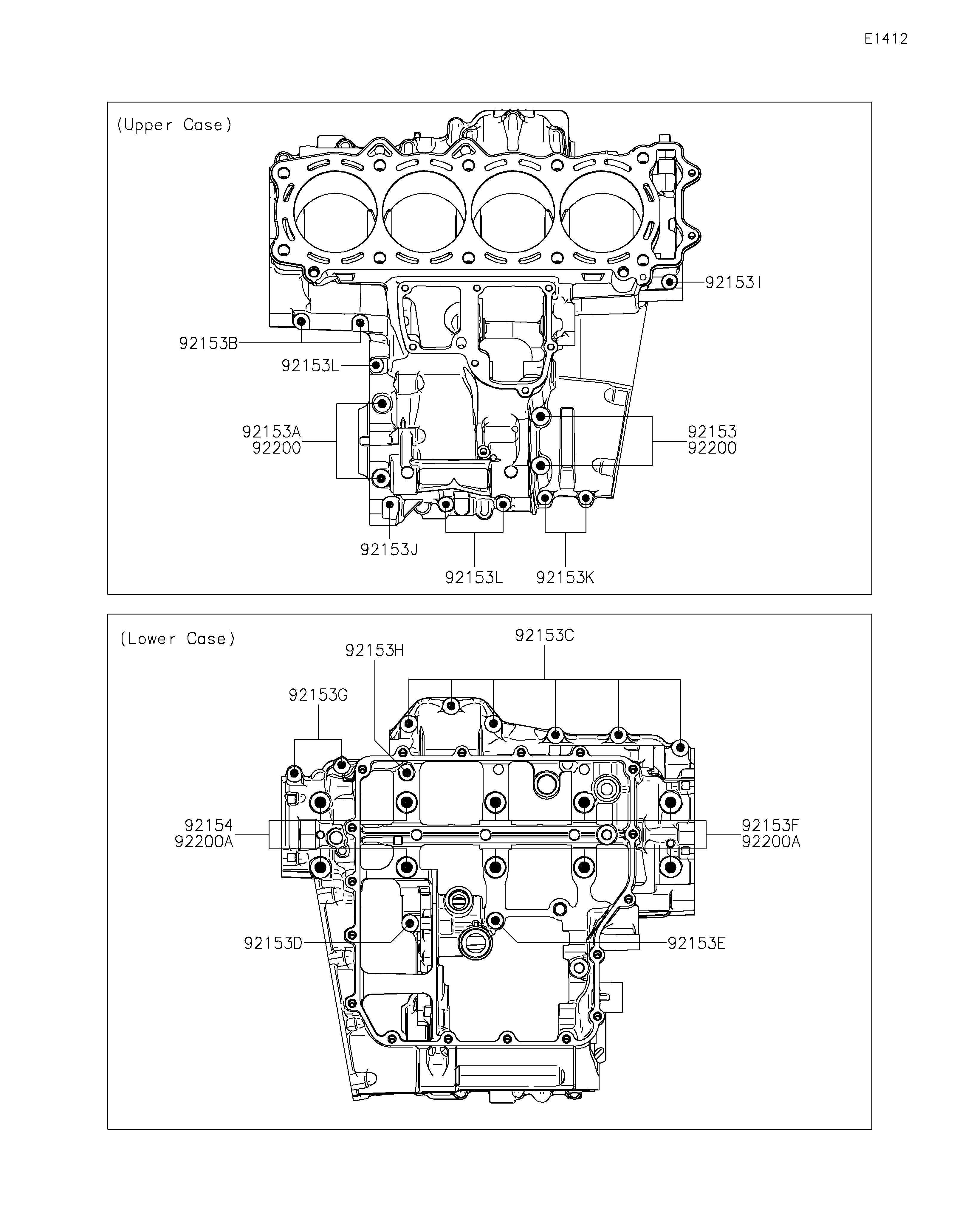

2019 NINJA® ZX™-14R ABS - Crankcase Bolt Pattern

DOWNLOAD PDF
SELECT A NEW PART
92153
92153A
92153B
92153C
92153D
92153E
92153F
92153G
92153H
92153I
92153J
92153K
92153L
92153L
92154
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,FLANGED,8X80 92153 92153-1035 2
BOLT,FLANGED,8X70 92153A 92153-1036 2
BOLT,FLANGED,7X65 92153B 92153-1040 2
BOLT,FLANGED,7X45 92153C 92153-1041 6
BOLT,FLANGED,7X50 92153D 92153-1042 1
BOLT,FLANGED,7X85 92153E 92153-1043 1
BOLT,FLANGED,10X90 92153F 92153-1044 6
BOLT,FLANGED,7X60 92153G 92153-1045 2
BOLT,FLANGED,7X110 92153H 92153-1046 1
BOLT,FLANGED,6X65 92153I 92153-1567 1
BOLT,FLANGED,6X50 92153J 92153-1568 1
BOLT,FLANGED,6X25 92153K 92153-1569 2
BOLT,FLANGED,6X40 92153L 92153-1570 3
BOLT,FLANGED,10X120 92154 92154-1447 4
WASHER,8.2X16X1.6 92200 92200-0047 4
WASHER,10.2X18.4X1.8 92200A 92200-0990 10
