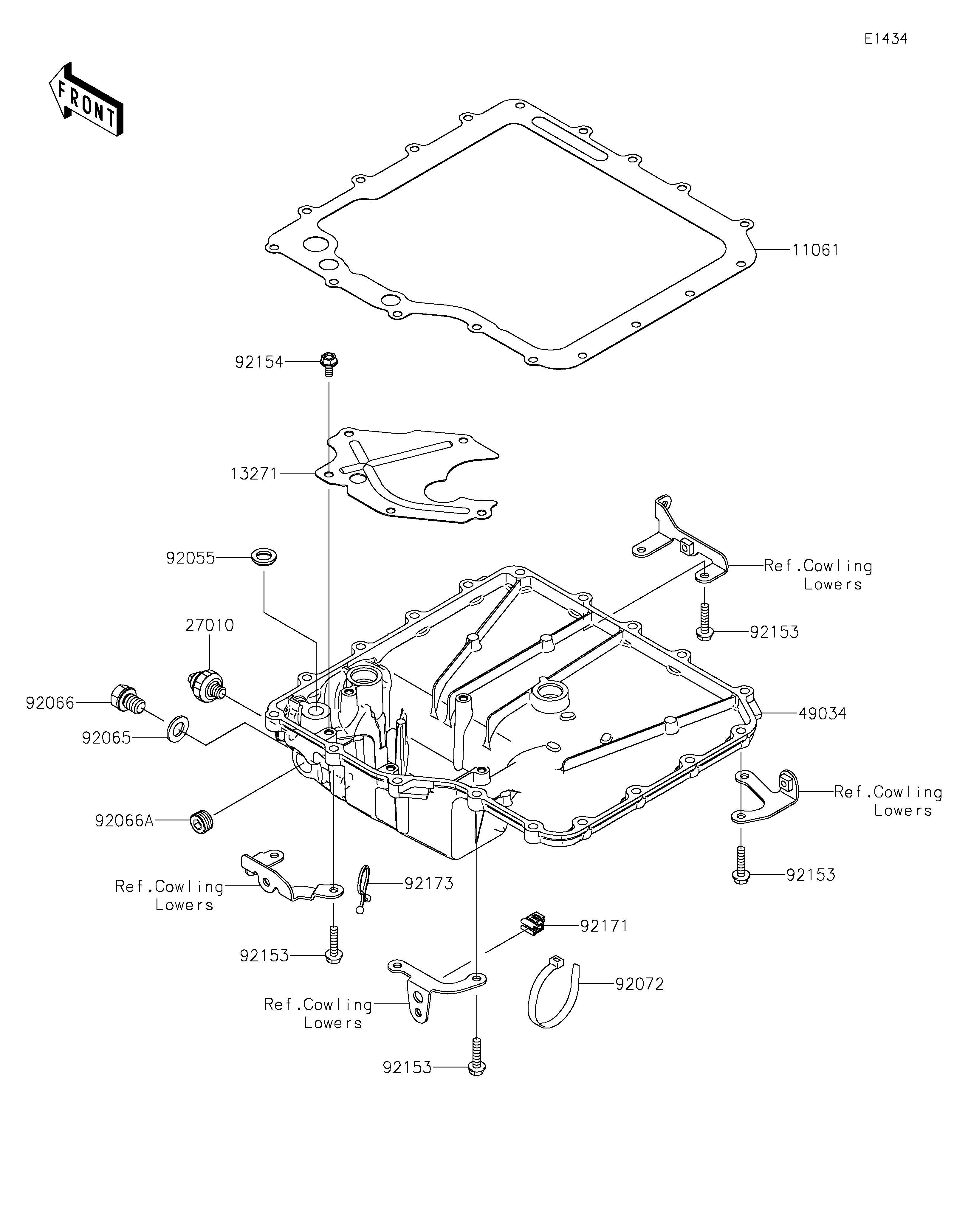

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11061 11061-0809 1
PLATE 13271 13271-0868 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PAN-OIL 49034 49034-0035 1
RING-O,19.5MM 92055 92055-077 1
GASKET,12X22X2 92065 92065-097 1
PLUG,12X15 92066 92066-0079 1
PLUG 92066A 92066-0836 1
BAND,L=200 92072 92072-0106 1
BOLT,FLANGED,6X25 92153 92153-1569 18
BOLT,FLANGED,6X8 92154 92154-1846 5
CLAMP 92171 92171-1811 1
CLAMP 92173 92173-0848 1
